TOYOTA CAMRY CHINA AHV41L-JEXGBC / ELECTRICAL / BATTERY BATTERY CABLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BATTERY BATTERY CABLE

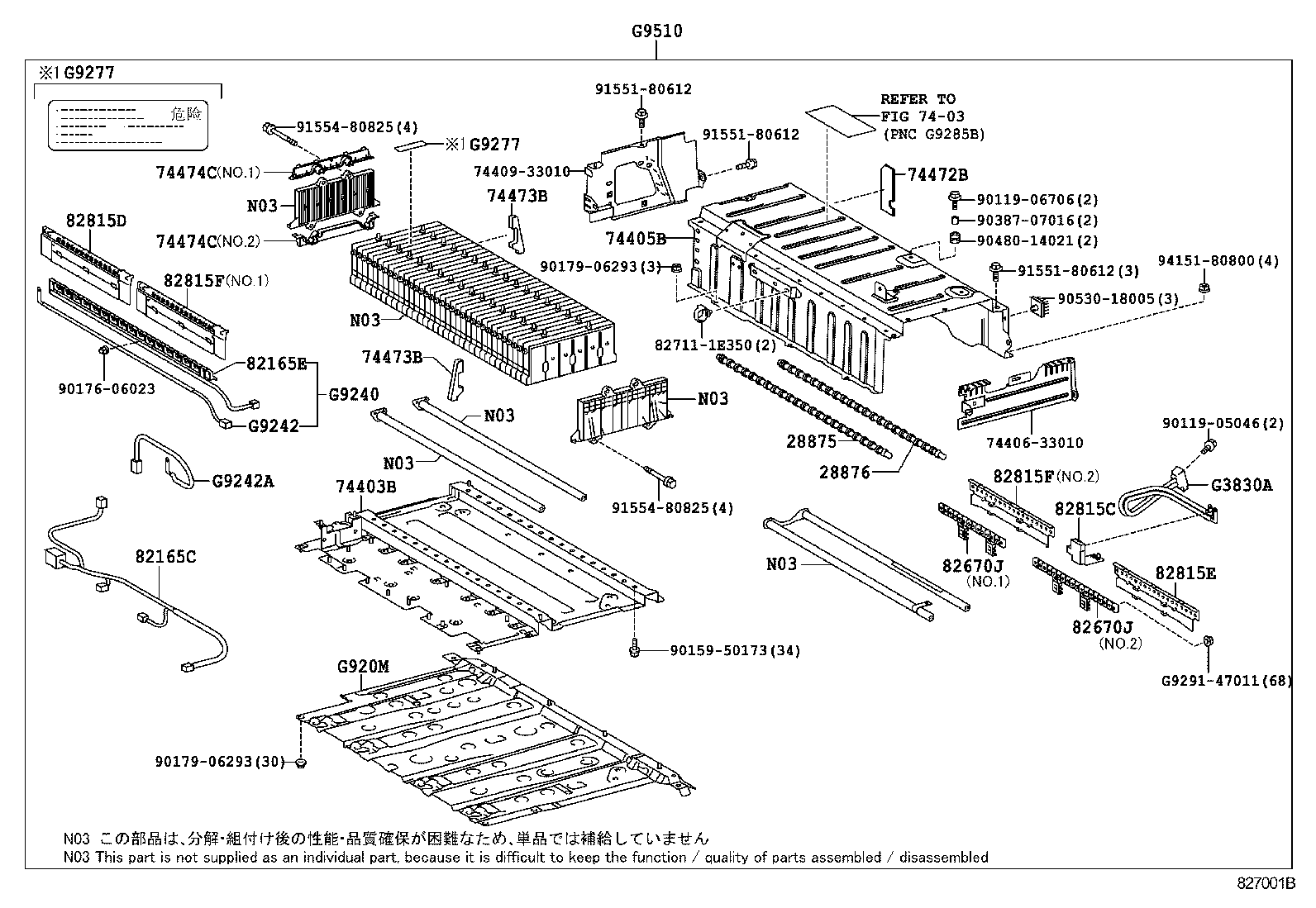

HV BATTERY ILLUST NO. 4 OF 4(1003- )AHV41

CAMRY CHINA | BATTERY BATTERY CABLE 28875 - DUCT, BATTERY INSULATOR, NO.1 28876 - DUCT, BATTERY INSULATOR, NO.2 ** Refer Fig 74403B - CARRIER SUB-ASSY, BATTERY 74405B - COVER SUB-ASSY, BATTERY ** Std Part ** Std Part 74472B - PAD, BATTERY CARRIER 74473B - CUSHION, BATTERY CARRIER, NO.3 74473B - CUSHION, BATTERY CARRIER, NO.3 74474C - SPACER, BATTERY, NO.2 74474C - SPACER, BATTERY, NO.2 82165C - WIRE, FRAME, NO.2 82165E - WIRE, BATTERY PACK 82670J - BLOCK ASSY, JUNCTION 82670J - BLOCK ASSY, JUNCTION ** Std Part 82815C - COVER, WIRING HARNESS PROTECTOR, NO.1 82815D - COVER, WIRING HARNESS PROTECTOR, NO.2 82815E - COVER, WIRING HARNESS PROTECTOR, NO.3 82815F - COVER, WIRING HARNESS PROTECTOR, NO.4 82815F - COVER, WIRING HARNESS PROTECTOR, NO.4 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part G3830A - PLUG ASSY, ELECTRIC VEHICLE BATTERY G920M - CARRIER SUB-ASSY, HYBRID BATTERY G9240 - JUNCTION BLOCK ASSY, BATTERY W/CABLE G9242 - CABLE, MAIN BATTERY G9242A - CABLE, MAIN BATTERY, NO.2 G9277 - LABEL, BATTERY CAUTION, NO.2 G9277 - LABEL, BATTERY CAUTION, NO.2 ** Std Part G9510 - BATTERY ASSY, HV SUPPLY
