TOYOTA CAMRY CHINA AHV41L-JEXGBC / POWERTRAIN-CHASSIS / TRANSAXLE ASSY HYBRID VEHICLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

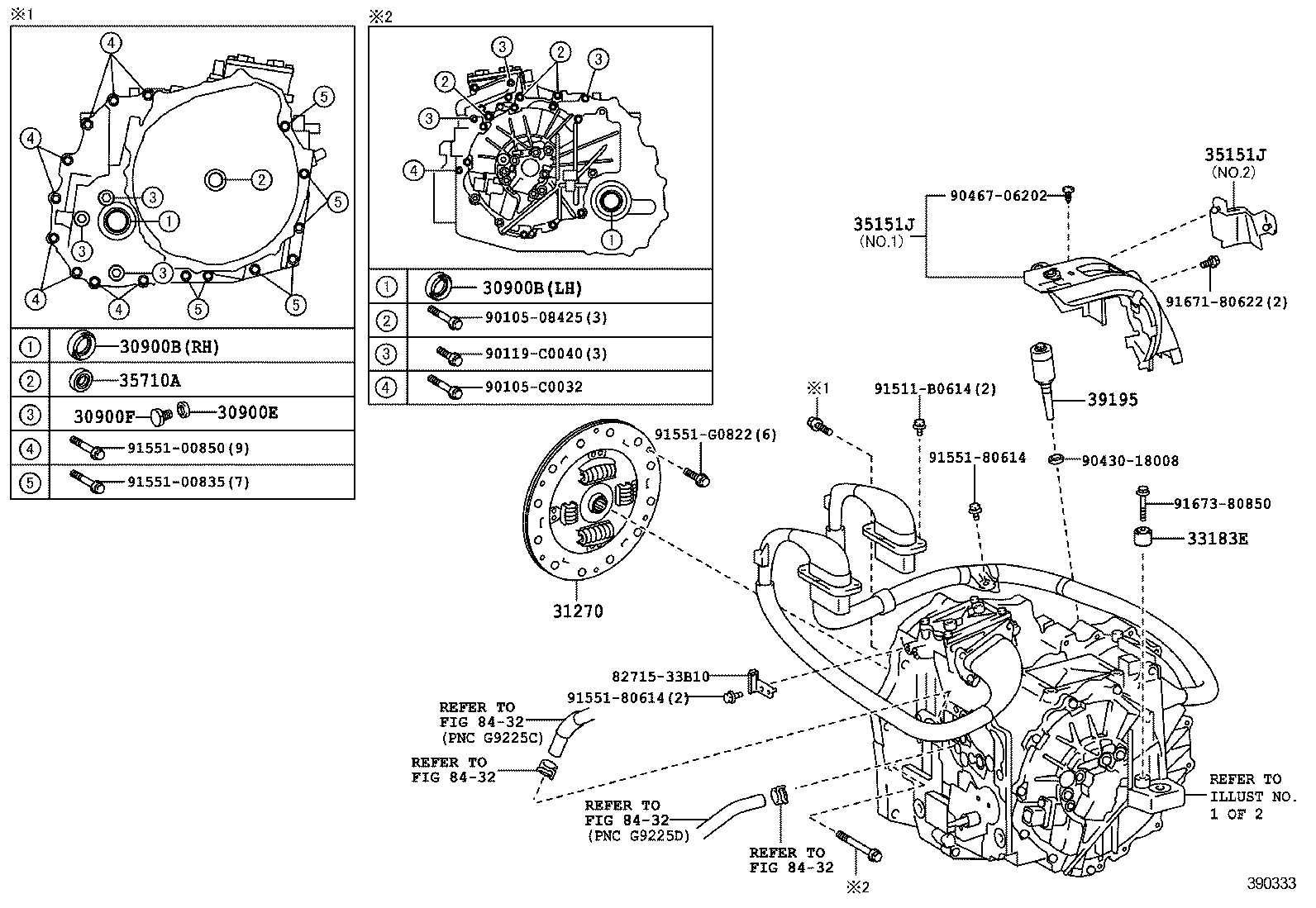

TRANSAXLE ASSY HYBRID VEHICLE

ILLUST NO. 2 OF 2(1003- )AHV41

CAMRY CHINA | TRANSAXLE ASSY HYBRID VEHICLE 30900B - SEAL, TYPE T OIL(FOR HYBRID VEHICLE TRANSAXLE ASSY) 30900B - SEAL, TYPE T OIL(FOR HYBRID VEHICLE TRANSAXLE ASSY) 30900E - GASKET(FOR TRANSAXLE HOUSING & CASE) 30900F - PLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & CASE) 31270 - DAMPER ASSY, TRANSMISSION INPUT 33183E - DAMPER, DYNAMIC 35151J - COVER, AUTOMATIC TRANSMISSION CASE 35151J - COVER, AUTOMATIC TRANSMISSION CASE 35710A - SEAL, TYPE T OIL(FOR INPUT SHAFT) 39195 - DAMPER, HV TRANSAXLE MASS ** Std Part ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
