TOYOTA COASTER XZB50L-ZEMSYR / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT SEAT TRACK

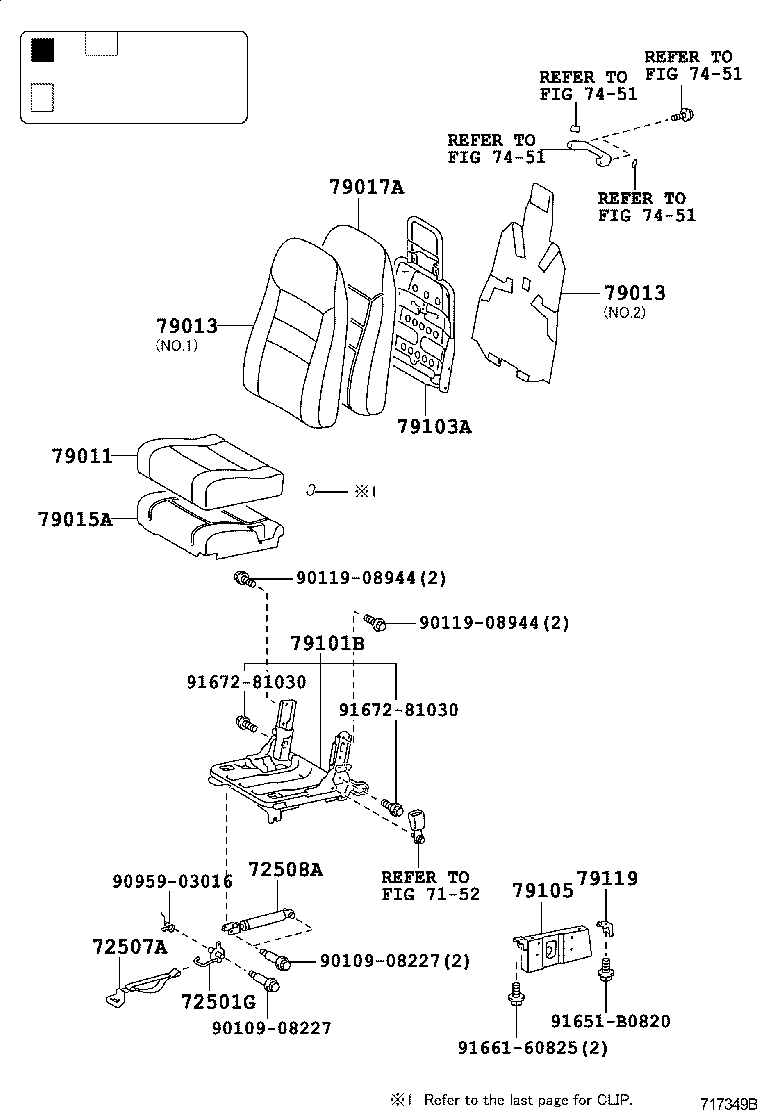

NO.1 SEAT(RH) ILLUST NO. 2 OF 4(1108- )TAIW

COASTER | SEAT SEAT TRACK ** Refer Fig 72501G - ARM SUB-ASSY, NO.1 SEAT RECLINING ADJUSTER, UPPER NO.1 RH 72507A - HANDLE SUB-ASSY, RECLINING RELEASE 72508A - SHAFT SUB-ASSY, NO.1 RECLINING ADJUSTING, RH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH 79015A - PAD SUB-ASSY, NO.1 SEAT CUSHION, RH 79017A - PAD SUB-ASSY, NO.1 SEAT BACK, RH 79101B - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH 79103A - FRAME SUB-ASSY, NO.1 SEAT BACK, RH 79105 - LEG SUB-ASSY, NO.1 SEAT, RH 79119 - BRACKET, NO.1 SEAT LEG, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
