TOYOTA CROWN GRS202R-AETQK / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

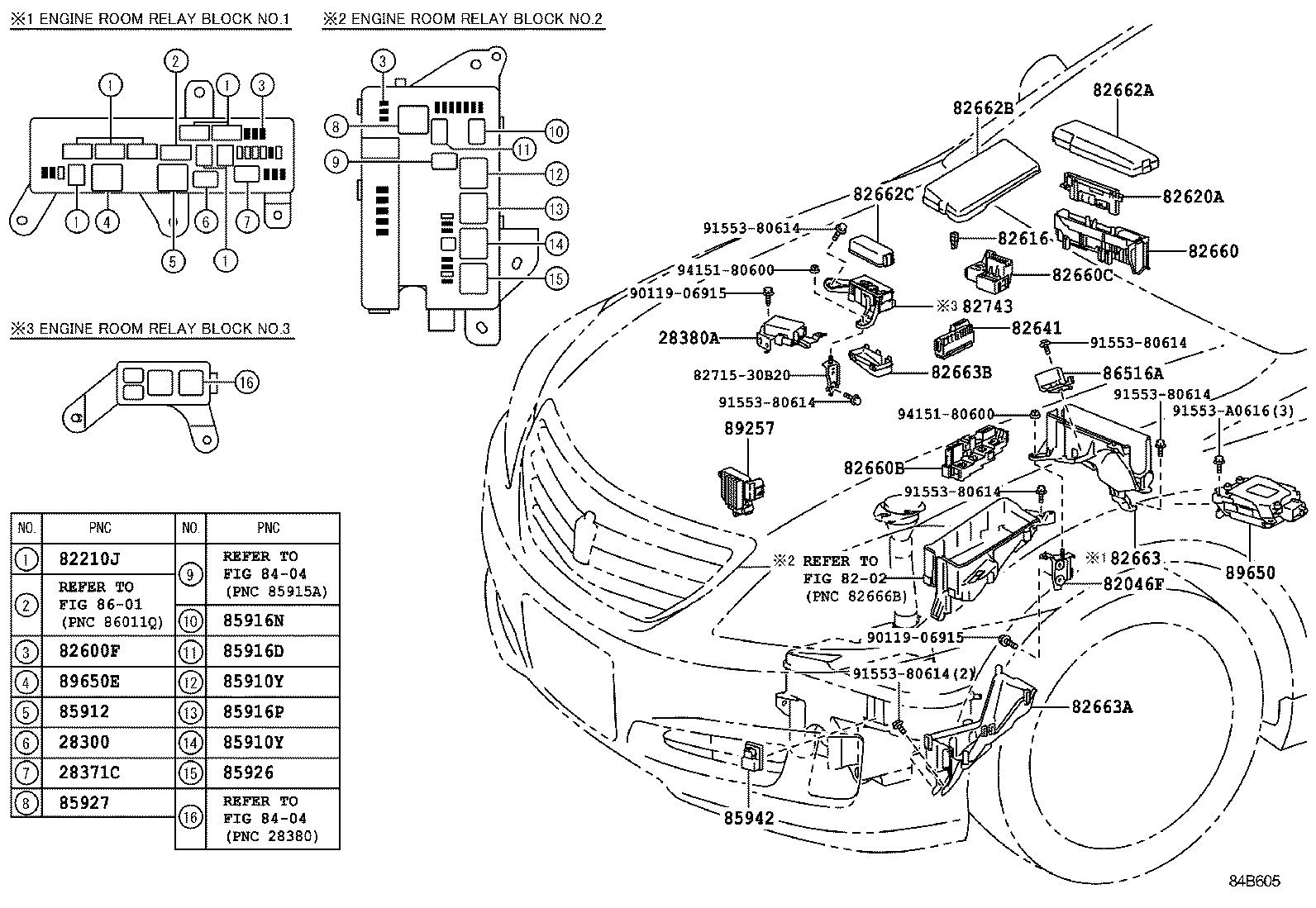

ENGINE ROOM ILLUST NO. 2 OF 8(1009- )

CROWN | SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER 28371C - RELAY, IGNITION, NO.2 28380A - RESISTER, FUEL PUMP ** Refer Fig 82046F - WIRE SUB-ASSY, BODY GROUND, NO.1 82210J - FUSIBLE LINK 82600F - FUSE, FUSE BLOCK 82616 - PULLER, FUSE 82620A - BLOCK ASSY, FUSIBLE LINK 82641 - RELAY, INTEGRATION NO.1 82660 - BLOCK ASSY, RELAY, ENGINE ROOM 82660B - BLOCK ASSY, RELAY 82660C - BLOCK ASSY, RELAY 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82662B - COVER, RELAY BLOCK, UPPER, NO.2 82662C - COVER, RELAY BLOCK, UPPER, NO.3 82663 - COVER, RELAY BLOCK, LOWER 82663A - COVER, RELAY BLOCK, LOWER, NO.2 82663B - COVER, RELAY BLOCK, LOWER, NO.3 ** Std Part 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 ** Refer Fig ** Refer Fig 85910Y - RELAY, REAR HEATER 85910Y - RELAY, REAR HEATER 85912 - RELAY, DEFOGGER 85916D - RELAY, FOG LAMP 85916N - RELAY, TAIL LAMP 85916P - RELAY, HEADLAMP 85926 - RELAY, HEADLAMP DIMMER 85927 - RELAY, COOLING FAN 85942 - RELAY, HEADLAMP CLEANER CONTROL ** Refer Fig 86516A - CONDENSER 89257 - COMPUTER, COOLING FAN 89650 - COMPUTER ASSY, POWER STEERING 89650E - RELAY, ELECTRIC POWER STEERING ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
