TOYOTA CROWN GRS202R-AETQK / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER UNIT

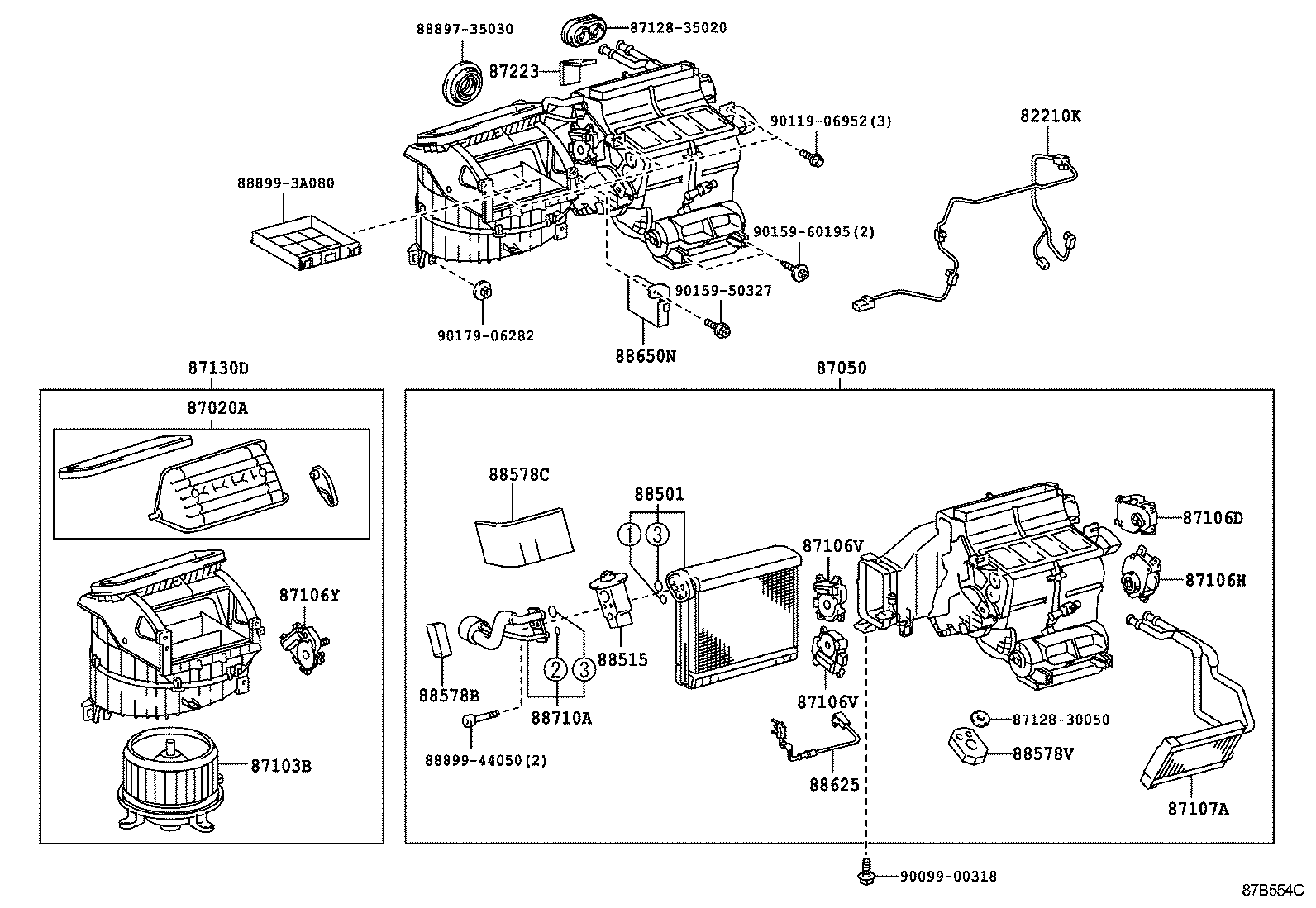

FRONT ILLUST NO. 1 OF 3(1009- )

CROWN | HEATING AIR CONDITIONING COOLER UNIT 82210K - HARNESS ASSY, AIR CONDITIONER 87020A - DAMPER ASSY, HEATER AIR 87050 - RADIATOR ASSY, AIR CONDITIONER 87103B - MOTOR SUB-ASSY, BLOWER W/FAN 87106D - SERVO SUB-ASSY, DAMPER, NO.1 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) 87106V - SERVO SUB-ASSY, DAMPER(FOR AIRMIX NO.2) 87106V - SERVO SUB-ASSY, DAMPER(FOR AIRMIX NO.2) 87106Y - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION & FRESH) 87107A - UNIT SUB-ASSY, HEATER RADIATOR ** Std Part ** Std Part 87130D - BLOWER ASSY 87223 - PAD, AIR DUCT 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 88515 - VALVE, COOLER EXPANSION 88578B - PACKING, COOLING UNIT, NO.1 88578C - PACKING, COOLING UNIT, NO.2 88578V - PACKING, COOLING UNIT, NO.3 88625 - THERMISTOR, COOLER, NO.1 88650N - AMPLIFIER ASSY, AIR CONDITIONER 88710A - TUBE ASSY, AIRCONDITIONER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
