TOYOTA CROWN GRS202R-AETQK / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER UNIT

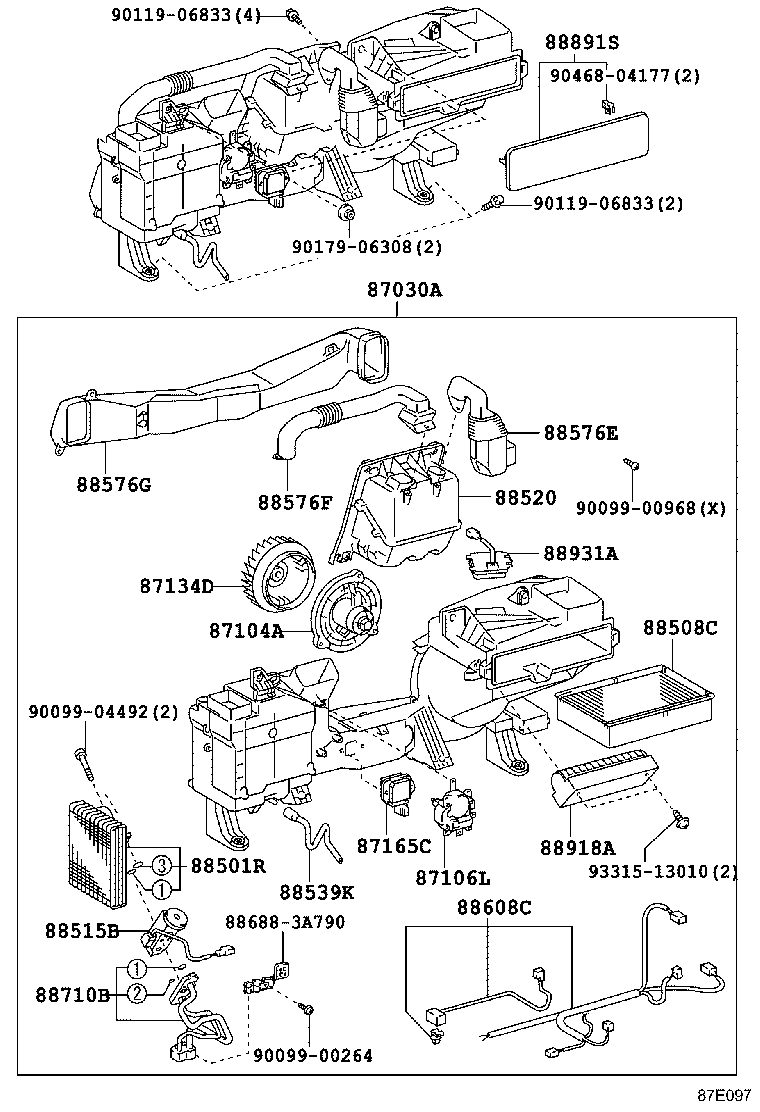

REAR ILLUST NO. 2 OF 3(1009- )

CROWN | HEATING AIR CONDITIONING COOLER UNIT 87030A - UNIT ASSY, COOLING, REAR 87104A - MOTOR SUB-ASSY, BLOWER 87106L - SERVO SUB-ASSY, DAMPER 87134D - FAN, BLOWER, NO.2 87165C - CONTROL, BLOWER MOTOR 88501R - EVAPORATOR SUB-ASSY (REAR) 88508C - FILTER SUB-ASSY, AIR 88515B - VALVE, REAR COOLING UNIT EXPANSION 88520 - BOX ASSY, COOLING 88539K - HOSE, DRAIN COOLER 88576E - DUCT, COOLER AIR, NO.1 88576F - DUCT, COOLER AIR, NO.2 88576G - DUCT, COOLER AIR, NO.3 88608C - HARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2 ** Std Part 88710B - TUBE ASSY, AIRCONDITIONER 88891S - COVER, COOLER, NO.1 88918A - LAMP ASSY, INDICATOR 88931A - SENSOR, SMOKE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
