TOYOTA CROWN GRS202R-AETQK / ELECTRICAL / HEATING AIR CONDITIONING CONTROL AIR DUCT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING CONTROL AIR DUCT

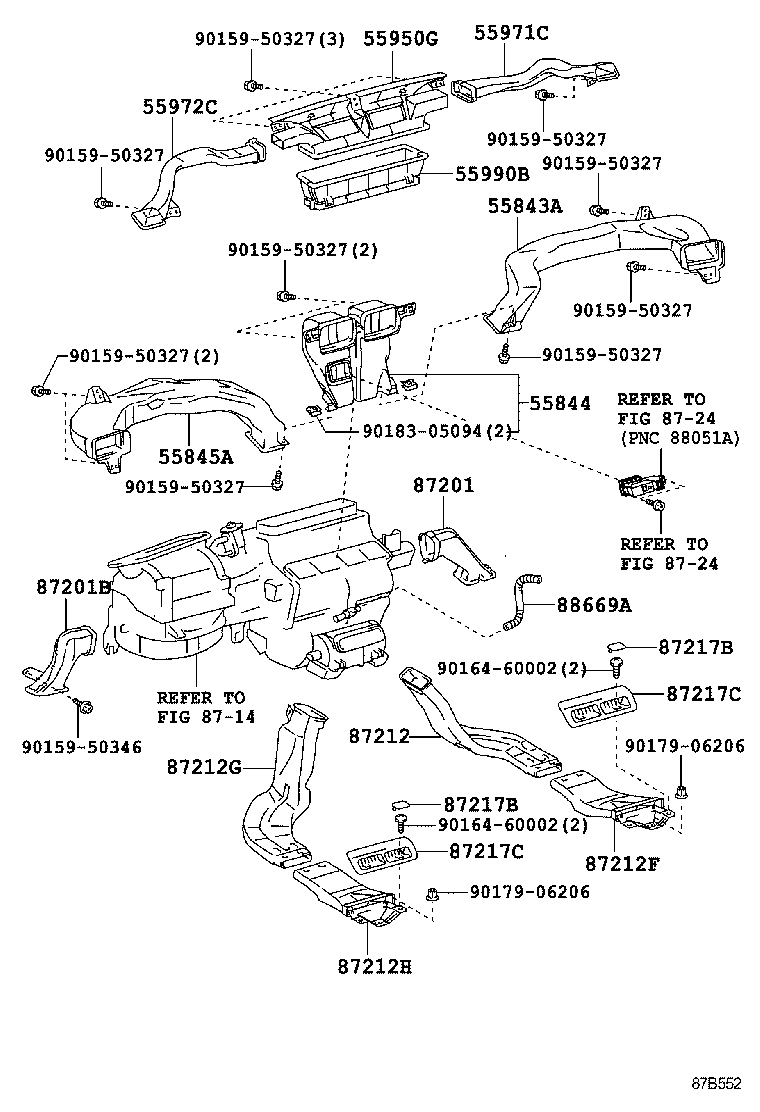

FRONT AIR DUCT ILLUST NO. 3 OF 5(1009- )

CROWN | HEATING AIR CONDITIONING CONTROL AIR DUCT 55843A - DUCT, HEATER TO REGISTER, NO.1 55844 - DUCT, HEATER TO REGISTER, NO.2 55845A - DUCT, HEATER TO REGISTER, NO.3 55950G - NOZZLE ASSY, DEFROSTER 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 55990B - NOZZLE ASSY, DEFROSTER, LOWER ** Refer Fig 87201 - DUCT SUB-ASSY, AIR, NO.1 87201B - DUCT SUB-ASSY, AIR, NO.2 87212 - DUCT, AIR, REAR NO.1 87212F - DUCT, AIR, REAR NO.2 87212G - DUCT, AIR, REAR NO.3 87212H - DUCT, AIR, REAR NO.4 87217B - PLUG, AIR DUCT 87217B - PLUG, AIR DUCT 87217C - DUCT, AIR, REAR NO.5 87217C - DUCT, AIR, REAR NO.5 ** Refer Fig ** Refer Fig 88669A - HOSE (FOR COOLER THERMISTOR) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
