TOYOTA DYNA XZU439L-TKFRDW3 / POWERTRAIN-CHASSIS / REAR SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR SPRING SHOCK ABSORBER

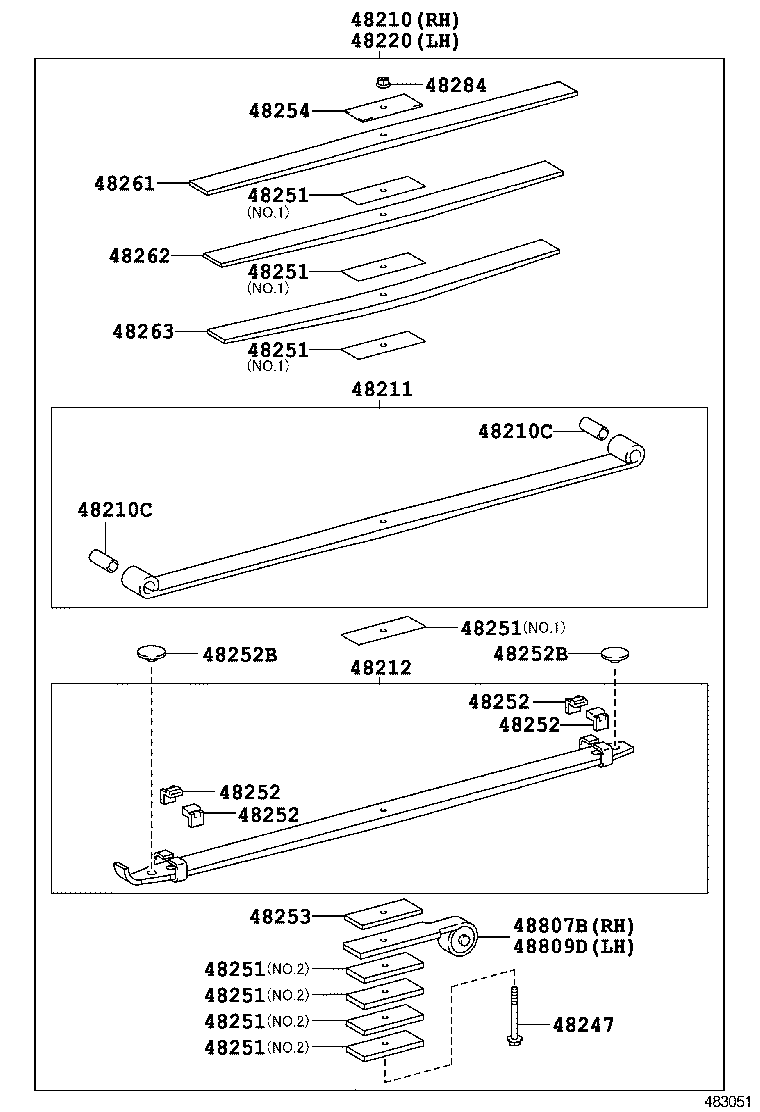

MAIN 2+HELPER 3-LEAF 48210-37F70 ILLUST NO. 2 OF 2(0908- )XZU419,429,439

DYNA | REAR SPRING SHOCK ABSORBER 48210 - SPRING ASSY, REAR RH 48210C - BUSH(FOR REAR SPRING LEAF) 48210C - BUSH(FOR REAR SPRING LEAF) 48211 - LEAF, REAR SPRING, NO.1 48212 - LEAF, REAR SPRING, NO.2 48220 - SPRING ASSY, REAR LH 48247 - BOLT, REAR SPRING, CENTER 48251 - SPACER, REAR SPRING LEAF 48251 - SPACER, REAR SPRING LEAF 48251 - SPACER, REAR SPRING LEAF 48251 - SPACER, REAR SPRING LEAF 48251 - SPACER, REAR SPRING LEAF 48251 - SPACER, REAR SPRING LEAF 48251 - SPACER, REAR SPRING LEAF 48251 - SPACER, REAR SPRING LEAF 48252 - SILENCER, REAR SPRING 48252 - SILENCER, REAR SPRING 48252 - SILENCER, REAR SPRING 48252 - SILENCER, REAR SPRING 48252B - SILENCER, REAR SPRING, NO.1 48252B - SILENCER, REAR SPRING, NO.1 48253 - SPACER, REAR SPRING, NO.1 48254 - SPACER, REAR SPRING LEAF 48261 - LEAF, REAR HELPER SPRING, NO.1 48262 - LEAF, REAR HELPER SPRING, NO.2 48263 - LEAF, REAR HELPER SPRING, NO.3 48284 - NUT, REAR SPRING CENTER BOLT 48807B - BRACKET SUB-ASSY, STABILIZER, RH 48809D - BRACKET SUB-ASSY, STABILIZER, LH
