TOYOTA EZ ZGR21L-GRFEKC / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

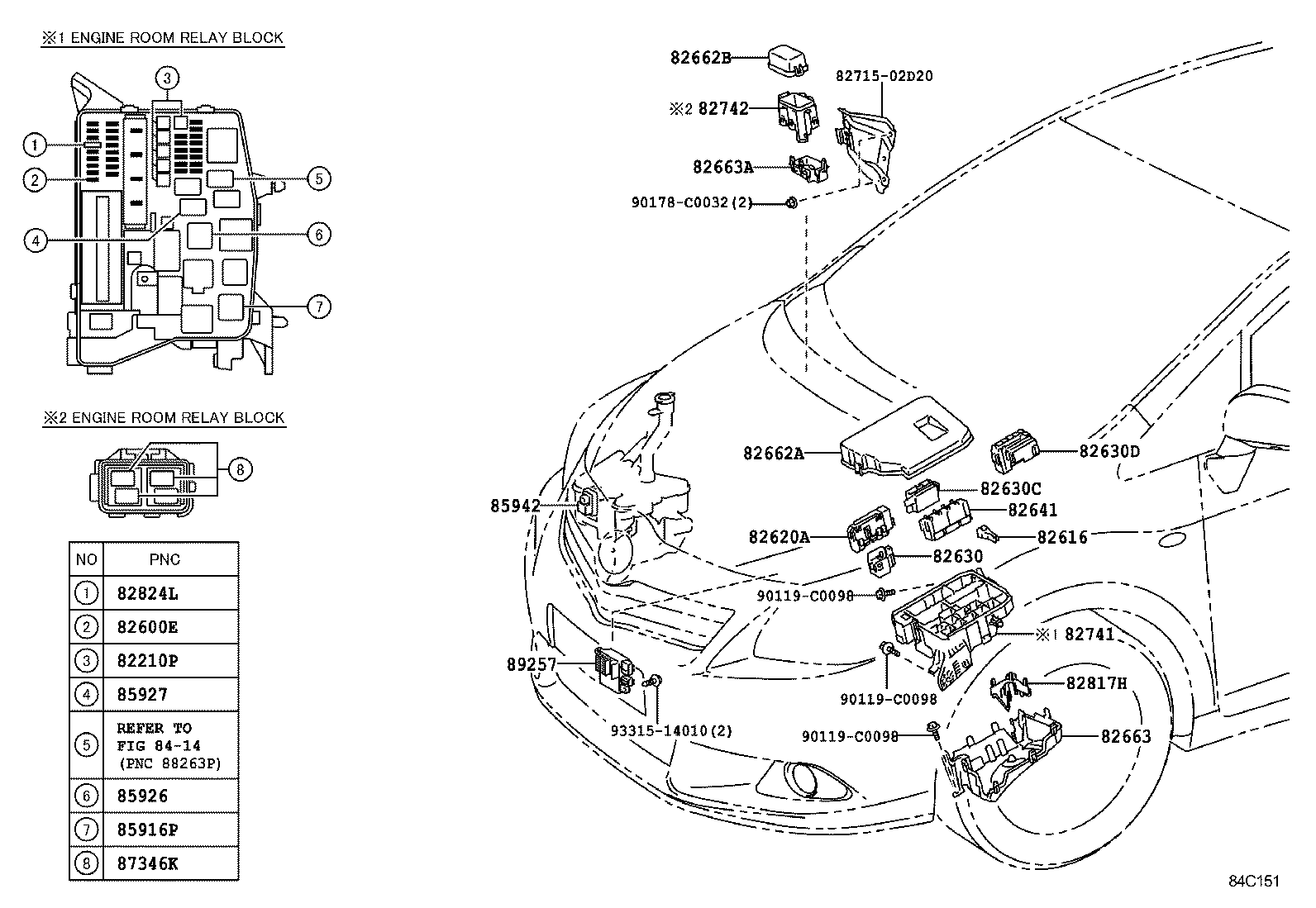

SWITCH RELAY COMPUTER

ENGINE ROOM ILLUST NO. 2 OF 7(1106- )

EZ | SWITCH RELAY COMPUTER 82210P - ENGINE ROOM FUSIBLE LINK 82600E - ENGINE ROOM FUSE 82616 - PULLER, FUSE 82620A - BLOCK ASSY, FUSIBLE LINK 82630 - HOLDER ASSY, FUSE 82630C - HOLDER ASSY, FUSE 82630D - HOLDER, FUSE 82641 - RELAY, INTEGRATION NO.1 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82662B - COVER, RELAY BLOCK, UPPER, NO.2 82663 - COVER, RELAY BLOCK, LOWER 82663A - COVER, RELAY BLOCK, LOWER, NO.2 ** Std Part 82741 - BLOCK, ENGINE ROOM RELAY 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 82817H - PROTECTOR, WIRING HARNESS 82824L - PIN, SHORT ** Refer Fig 85916P - RELAY, HEADLAMP 85926 - RELAY, HEADLAMP DIMMER 85927 - RELAY, COOLING FAN 85942 - RELAY, HEADLAMP CLEANER CONTROL 87346K - RELAY, PTC HEATER 89257 - COMPUTER, COOLING FAN ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
