TOYOTA FORTUNER KUN60R-NKMSHT / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

AIR CLEANER

V..KUN60..TH

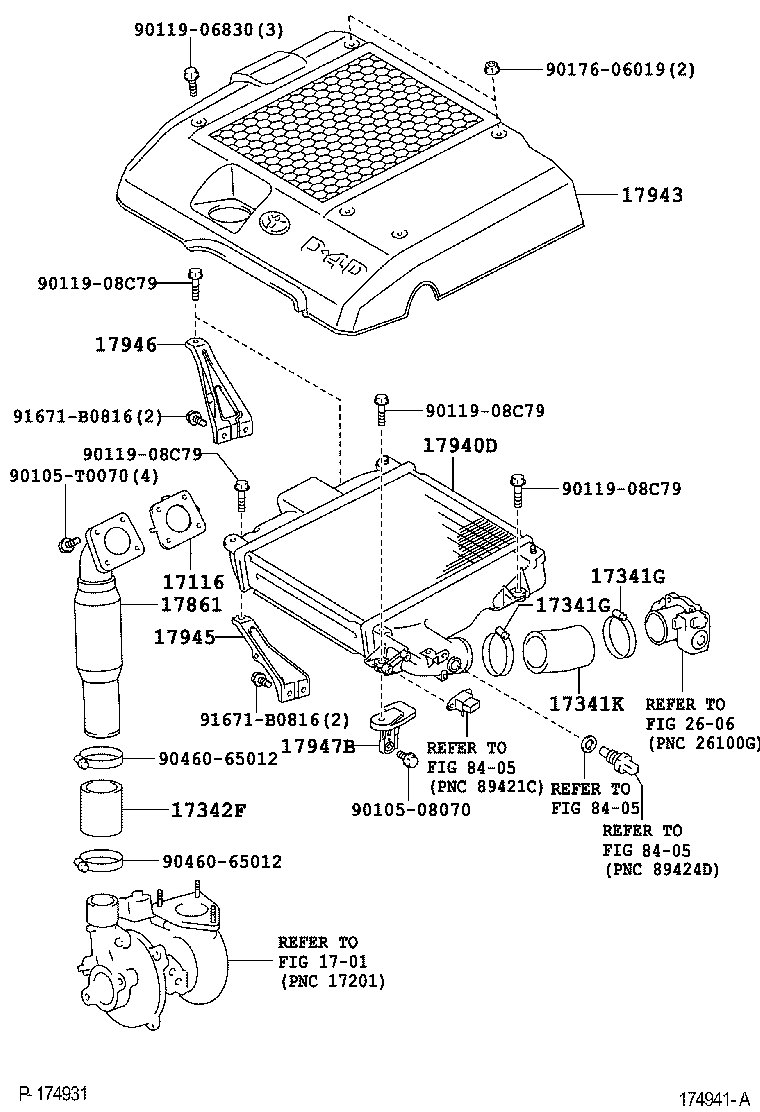

FORTUNER | AIR CLEANER ** Refer Fig 17116 - GASKET, INTAKE FLANGE 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) 17341K - HOSE, AIR, NO.1(FOR INTERCOOLER) 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) 17861 - CONNECTOR, INTAKE AIR 17940D - INTERCOOLER ASSY 17943 - PROTECTOR, INTERCOOLER 17945 - BRACKET, INTERCOOLER SUPPORT 17946 - BRACKET, INTERCOOLER SUPPORT, NO.2 17947B - BRACKET, INTERCOOLER SUPPORT, NO.3 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
