TOYOTA FORTUNER LAN50L-NKMSEN / POWERTRAIN-CHASSIS / CLUTCH PEDAL FLEXIBLE HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CLUTCH PEDAL FLEXIBLE HOSE

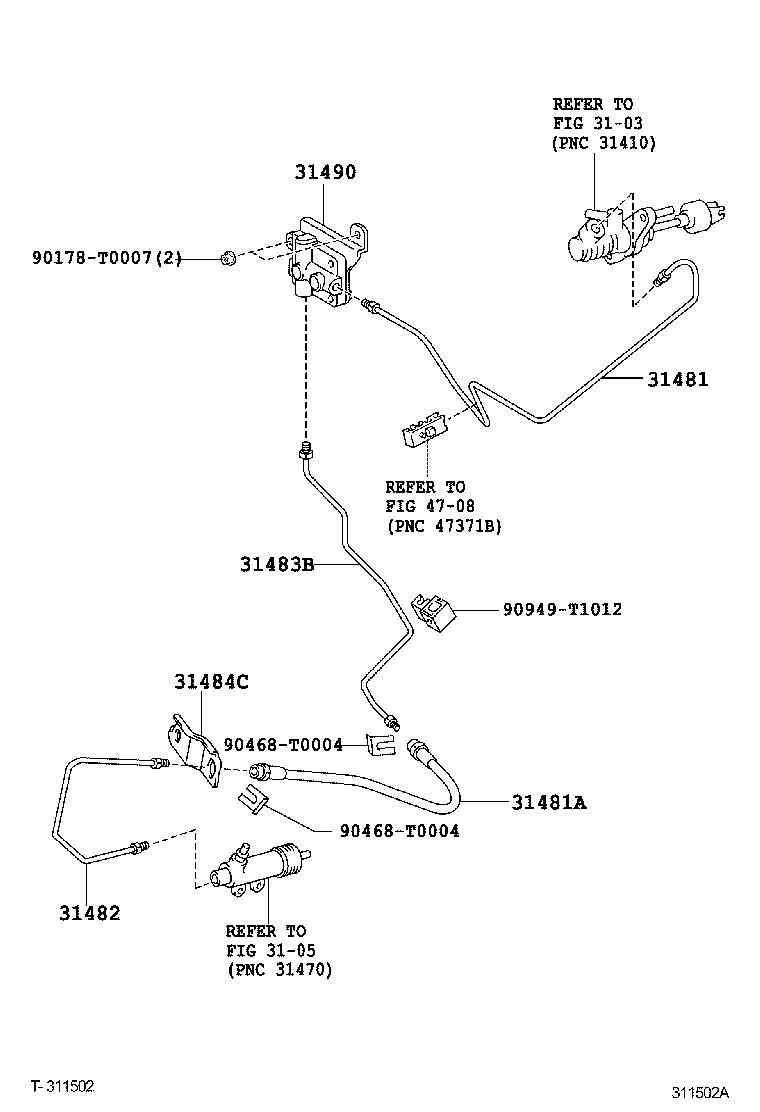

ILLUST NO. 2 OF 2(0605- )LAN50..LHD

FORTUNER | CLUTCH PEDAL FLEXIBLE HOSE ** Refer Fig ** Refer Fig 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE 31481A - HOSE, CLUTCH, NO.1 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE 31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE 31484C - BRACKET, CLUTCH TUBE, NO.1 31490 - ACCUMULATOR ASSY, CLUTCH ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part
