TOYOTA HIGHLANDER KLUGER GSU45L-BRANKX / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

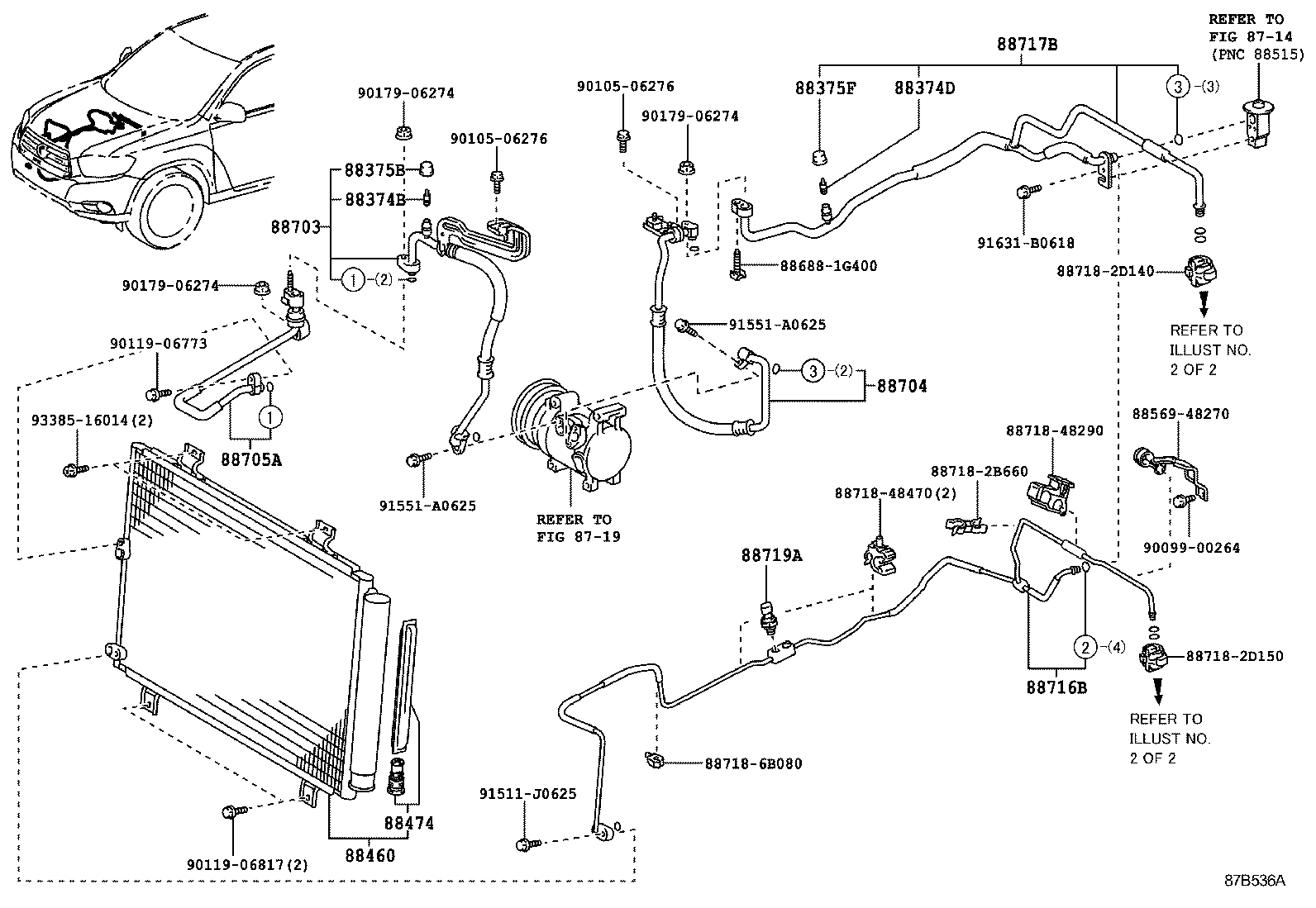

FRONT,W(REAR AIR CONDITIONER) ILLUST NO. 1 OF 3(1007- )RUS

HIGHLANDER KLUGER | HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig 88374B - VALVE, SERVICE, NO.1 88374D - VALVE, SERVICE NO.3 88375B - CAP, SERVICE VALVE, NO.1 88375F - CAP, SERVICE VALVE, NO.3 88460 - CONDENSER ASSY, COOLER 88474 - DRYER, COOLER ** Std Part ** Std Part 88703 - HOSE SUB-ASSY, DISCHARGE 88704 - HOSE SUB-ASSY, SUCTION 88705A - TUBE SUB-ASSY, DISCHARGE 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88717B - PIPE, COOLER REFRIGERANT SUCTION, B ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88719A - SENSOR, AIRCONDITIONER PRESSURE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
