TOYOTA LAND CRUISER 200 VDJ200R-KDMRZ / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

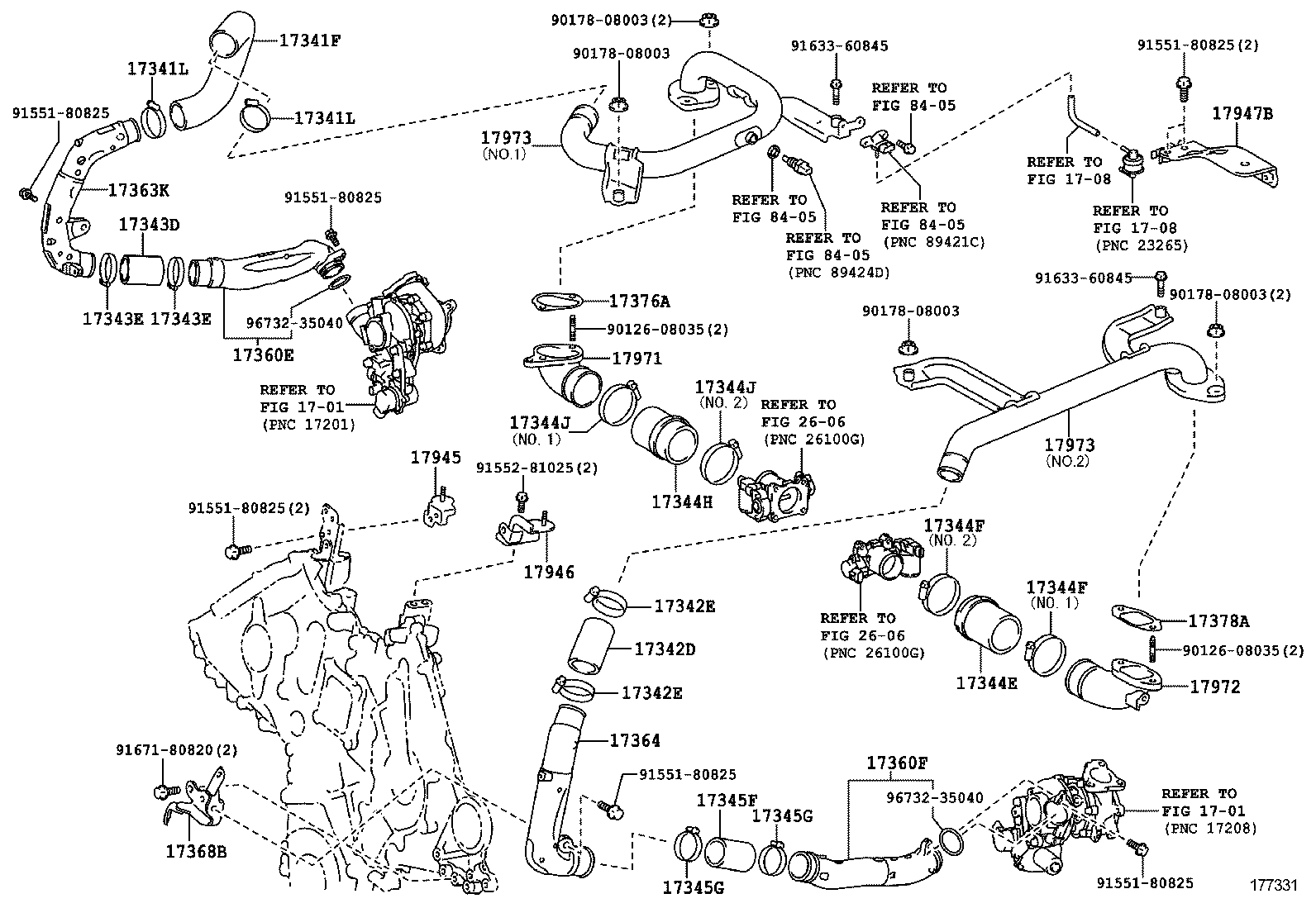

AIR CLEANER

W/O(INTERCOOLER) ILLUST NO. 2 OF 2(1109- )1VDFTV..5F..STD

LAND CRUISER 200 | AIR CLEANER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 17341F - HOSE, AIR, NO.1 17341L - CLAMP, HOSE 17341L - CLAMP, HOSE 17342D - HOSE, AIR, NO.2 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) 17343D - HOSE, AIR, NO.3 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) 17344E - HOSE, AIR, NO.4 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) 17344H - HOSE, AIR, NO.4(FOR INTERCOOLER) 17344J - CLAMP, HOSE, NO.4(FOR INTERCOOLER) 17344J - CLAMP, HOSE, NO.4(FOR INTERCOOLER) 17345F - HOSE, AIR, NO.5 17345G - CLAMP OR CLIP(FOR AIR HOSE, NO.5) 17345G - CLAMP OR CLIP(FOR AIR HOSE, NO.5) 17360E - TUBE ASSY, AIR, NO.1 17360F - TUBE ASSY, AIR, NO.2 17363K - TUBE, AIR, NO.3(FOR INTERCOOLER) 17364 - TUBE, AIR, NO.4 17368B - SUPPORT, AIR TUBE 17376A - GASKET, AIR TUBE 17378A - GASKET, AIR TUBE, NO.3 17945 - BRACKET, INTERCOOLER SUPPORT 17946 - BRACKET, INTERCOOLER SUPPORT, NO.2 17947B - BRACKET, INTERCOOLER SUPPORT, NO.3 17971 - INLET, COOL AIR, NO.1 17972 - INLET, COOL AIR, NO.2 17973 - INLET, COOL AIR, NO.3 17973 - INLET, COOL AIR, NO.3 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
