TOYOTA LAND CRUISER CHINA GRJ200L-GNANKC / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

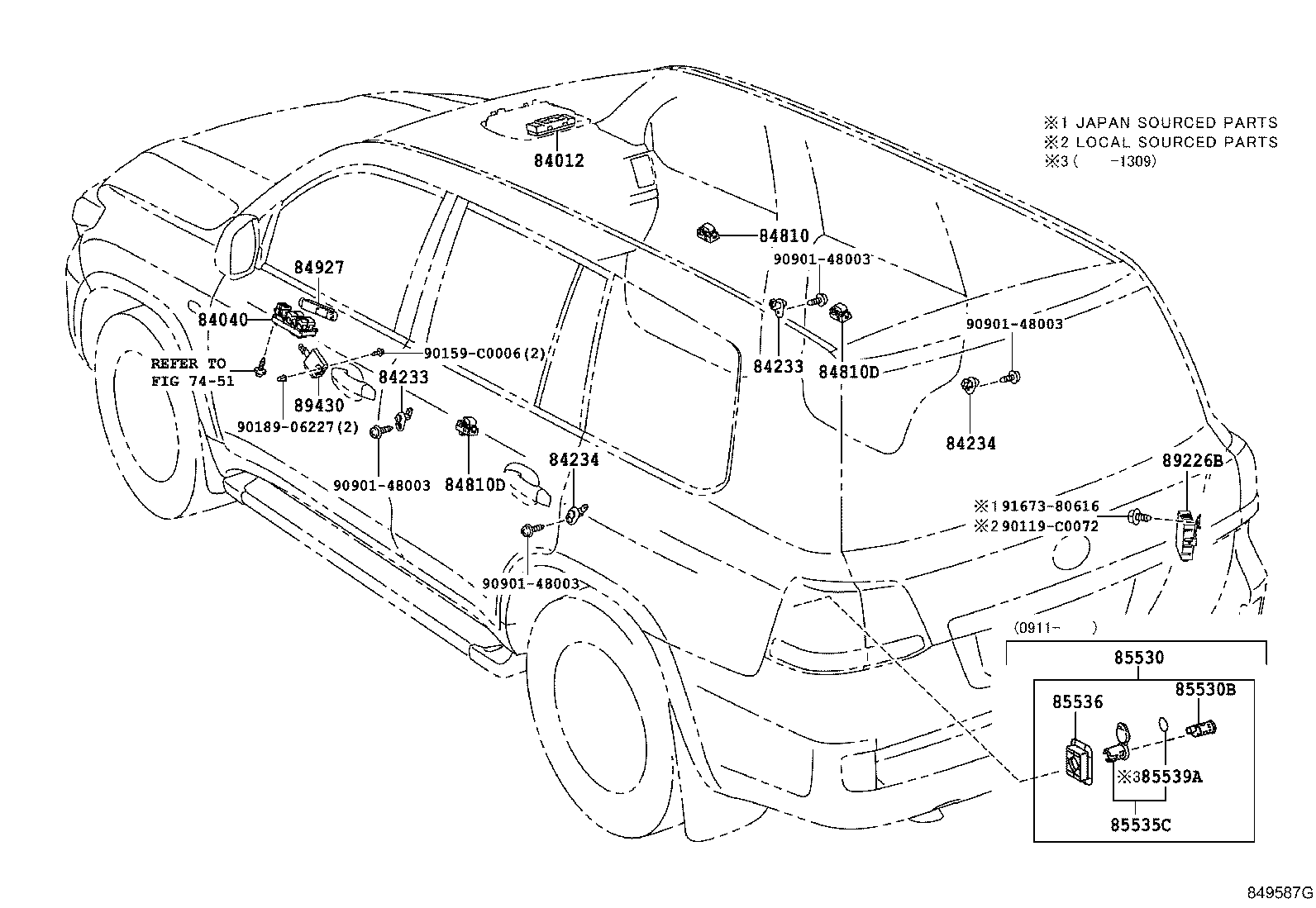

DOOR & ROOF ILLUST NO. 8 OF 9(0712- )

 LAND CRUISER CHINA |  SWITCH RELAY COMPUTER ** Refer Fig 84012 - CONTROL & PANEL SUB-ASSY, INTEGRATION 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 84810 - SWITCH ASSY, POWER WINDOW REGULATOR 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR 84927 - SWITCH, SEAT MEMORY 85530 - SOCKET ASSY, POWER OUTLET, NO.1 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 85535C - COVER, POWER OUTLET SOCKET, REAR 85536 - BEZEL, POWER OUTLET SOCKET 85539A - LABEL, POWER OUTLET NOTICE, REAR 89226B - COMPUTER, MULTIPLEX NETWORK BODY, NO.2 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
