TOYOTA LAND CRUISER PRADO GRJ150L-GKAEKC / BODY / ROOF PANEL BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

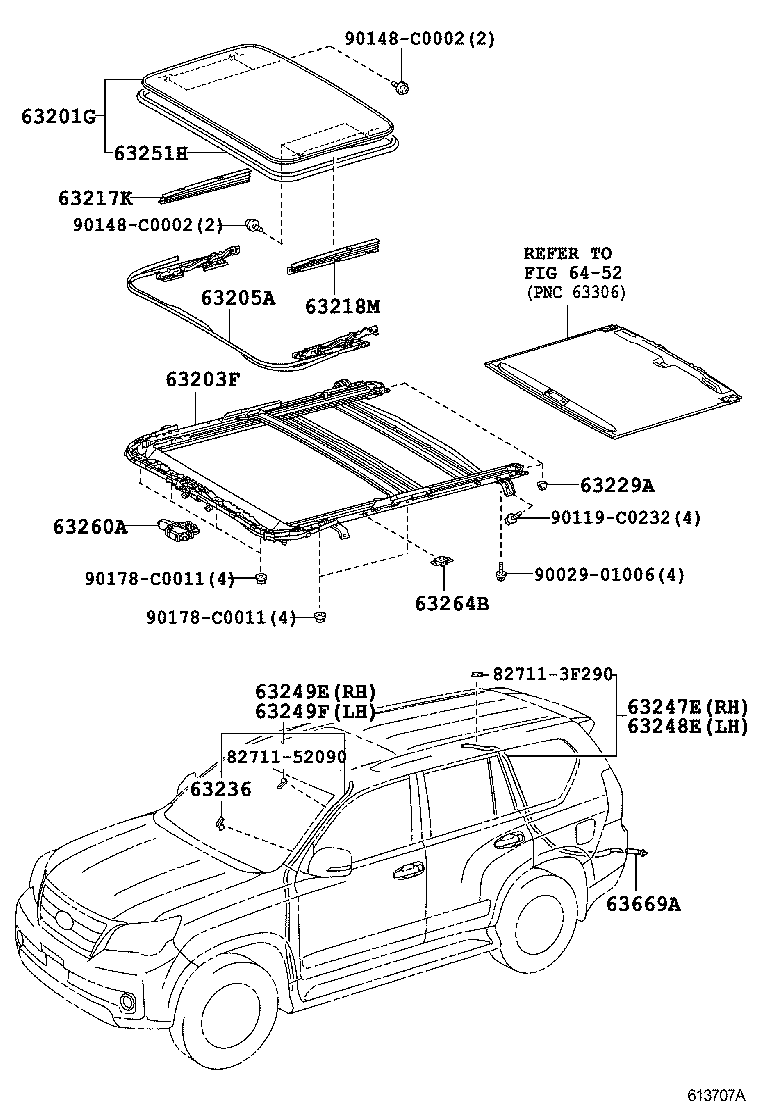

ROOF PANEL BACK PANEL

MOON ROOF ILLUST NO. 2 OF 3(1005- )

LAND CRUISER PRADO | ROOF PANEL BACK PANEL 63201G - GLASS SUB-ASSY, SLIDING ROOF 63203F - HOUSING SUB-ASSY, SLIDING ROOF 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE 63217K - GARNISH, SLIDING ROOF SIDE, RH 63218M - GARNISH, SLIDING ROOF SIDE, LH 63229A - STOPPER, SLIDING ROOF SUNSHADE 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE 63247E - HOSE, SLIDING ROOF DRAIN, REAR RH 63248E - HOSE, SLIDING ROOF DRAIN, REAR LH 63249E - HOSE, SLIDING ROOF DRAIN 63249F - HOSE, SLIDING ROOF DRAIN 63251H - WEATHERSTRIP, SLIDING ROOF 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE 63264B - PLATE, SLIDING ROOF LOCK CATCH, LH 63669A - GROMMET, SLIDING ROOF DRAIN ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
