TOYOTA LAND CRUISER PRADO GRJ150L-GKAEKC / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER UNIT

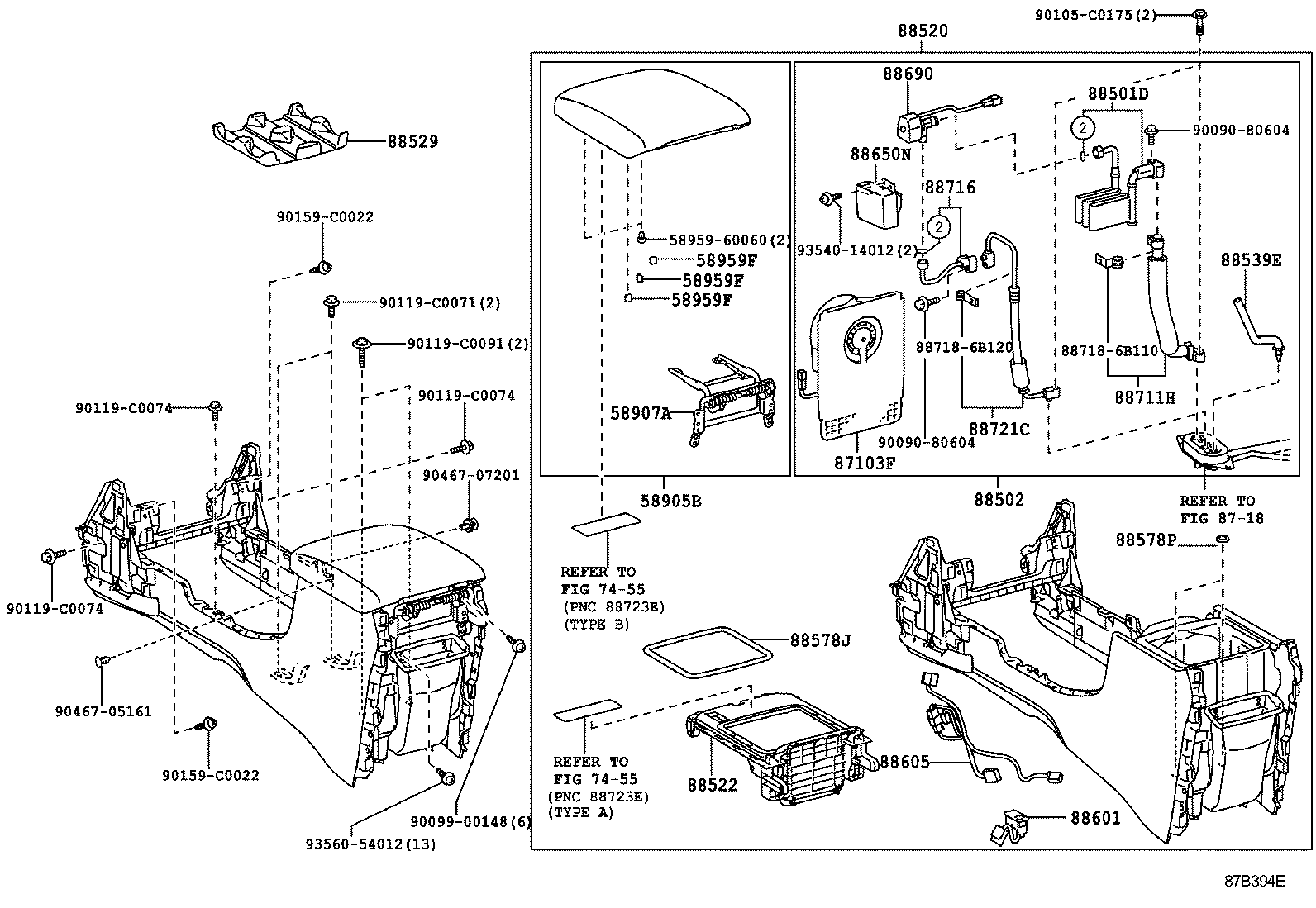

COOL BOX ILLUST NO. 3 OF 4(1005- )

LAND CRUISER PRADO | HEATING AIR CONDITIONING COOLER UNIT 58905B - DOOR SUB-ASSY, CONSOLE COMPARTMENT(FOR COOL BOX) 58907A - HINGE SUB-ASSY, COOLING BOX DOOR ** Std Part 58959F - CUSHION, COOLING BOX DOOR 58959F - CUSHION, COOLING BOX DOOR 58959F - CUSHION, COOLING BOX DOOR ** Refer Fig ** Refer Fig 87103F - MOTOR SUB-ASSY, BLOWER W/FAN(FOR COOL BOX) ** Refer Fig 88501D - EVAPORATOR SUB-ASSY, COOLER, NO.2 88502 - CASE SUB-ASSY, COOLING UNIT 88520 - BOX ASSY, COOLING 88522 - DOOR, COOLING UNIT 88529 - TRAY, COOLING BOX 88539E - HOSE, COOLER UNIT DRAIN, NO.3 88578J - PACKING, COOL BOX, NO.1 88578P - PACKING, COOL BOX, NO.2 88601 - SWITCH SUB-ASSY, COOLER CONTROL 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 88650N - AMPLIFIER ASSY, AIR CONDITIONER 88690 - VALVE ASSY, COOLER MAGNET 88711H - HOSE, DISCHARGE 88716 - TUBE, LIQUID ** Std Part ** Std Part 88721C - HOSE, LIQUID ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
