TOYOTA LAND CRUISER PRADO GRJ150L-GKAGKC / POWERTRAIN-CHASSIS / REAR SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

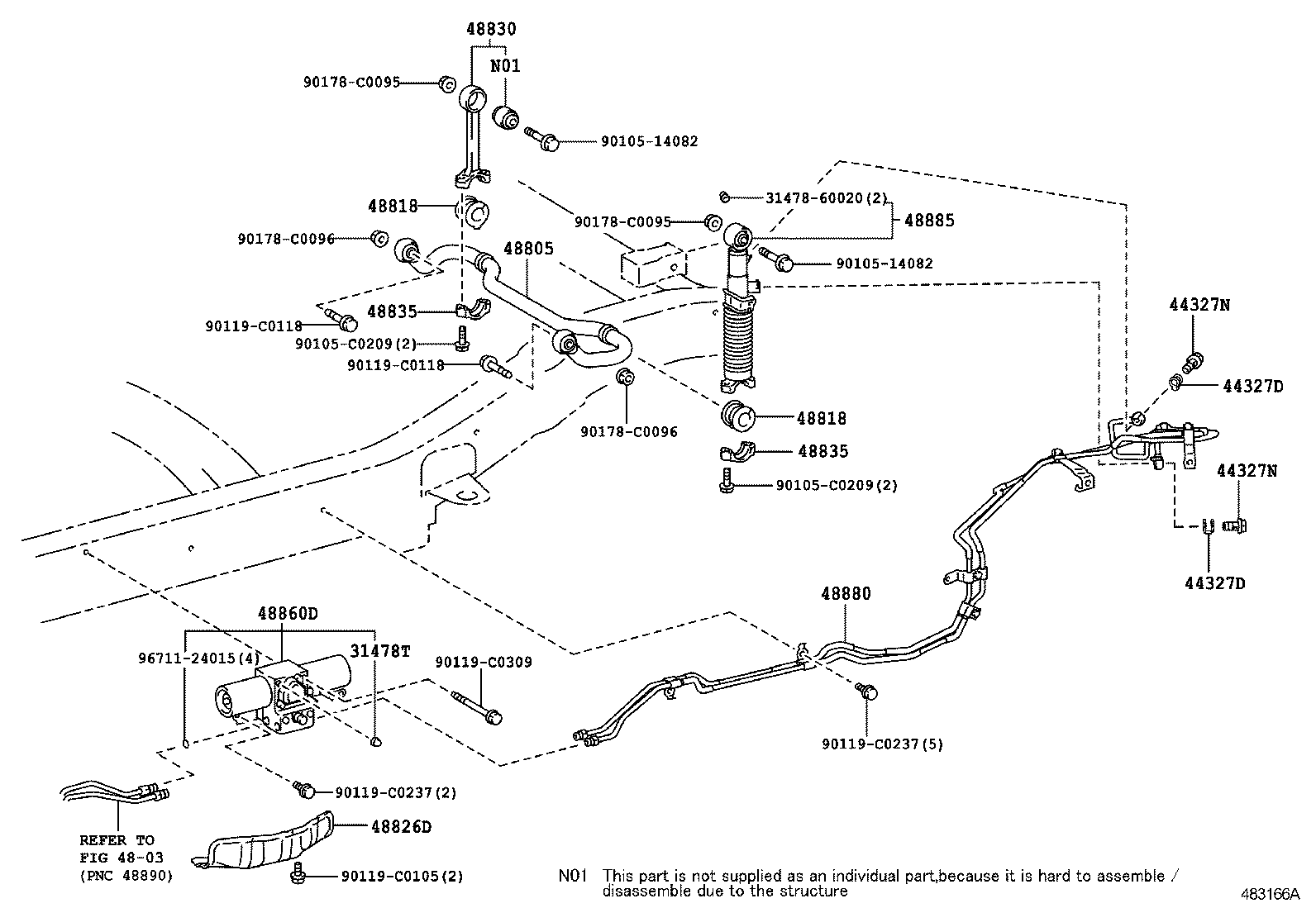

REAR SPRING SHOCK ABSORBER

ILLUST NO. 2 OF 2(1005- )VX

LAND CRUISER PRADO | REAR SPRING SHOCK ABSORBER ** Std Part 31478T - CAP, BLEEDER PLUG(FOR REAR SUSPENSION CONTROL) 44327D - GASKET, PRESSURE PORT(FOR REAR STABILIZER CONTROL TUBE) 44327D - GASKET, PRESSURE PORT(FOR REAR STABILIZER CONTROL TUBE) 44327N - BOLT, UNION(FOR REAR STABILIZER CONTOROL TUBE) 44327N - BOLT, UNION(FOR REAR STABILIZER CONTOROL TUBE) ** Refer Fig 48805 - BAR SUB-ASSY, REAR STABILIZER 48818 - BUSH, STABILIZER, REAR 48818 - BUSH, STABILIZER, REAR 48826D - PROTECTOR, STABILIZER CONTROL VALVE 48830 - LINK ASSY, REAR STABILIZER 48835 - BRACKET, REAR STABILIZER, LOWER 48835 - BRACKET, REAR STABILIZER, LOWER 48860D - HOUSING ASSY, STABILIZER CONTROL W/ACCUMULATOR 48880 - TUBE ASSY, REAR STABILIZER CONTROL, NO.1 48885 - CYLINDER, REAR STABILIZER CONTROL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
