TOYOTA LAND CRUISER PRADO TRJ155L-GJPEKV / BODY / SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SIDE MEMBER

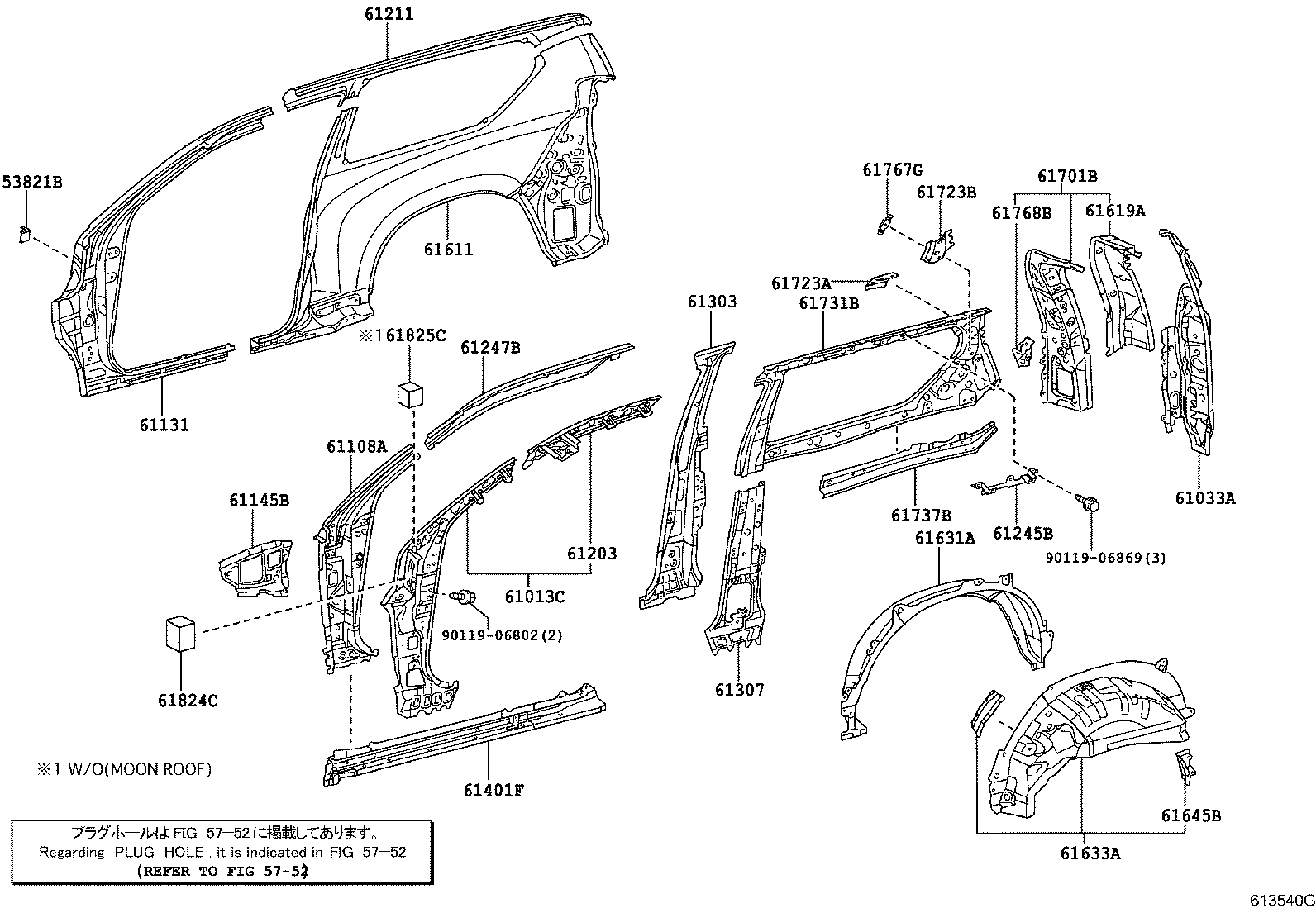

RH SIDE ILLUST NO. 1 OF 2(0908- )TRJ155

LAND CRUISER PRADO | SIDE MEMBER 53821B - BRACKET, FRONT FENDER, REAR RH ** Refer Fig 61013C - PANEL SUB-ASSY, SIDE, INNER RH 61033A - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH 61131 - PILLAR, FRONT BODY, UPPER OUTER RH 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH 61211 - RAIL, ROOF SIDE, OUTER RH 61245B - BRACKET, ASSIST GRIP, NO.3 RH 61247B - REINFORCEMENT, ROOF SIDE RAIL, INNER RH 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH 61401F - REINFORCEMENT SUB-ASSY, ROCKER PANEL, RH 61611 - PANEL, QUARTER, RH 61619A - REINFORCEMENT, QUARTER PANEL 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH 61701B - PANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH 61723A - REINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1 61723B - REINFORCEMENT, QUARTER WINDOW OPENING, NO.2 RH 61731B - PANEL, ROOF SIDE, INNER RH 61737B - PANEL, ROOF SIDE, INNER LOWER RH 61767G - RETAINER, SEAT BELT ANCHOR, NO.2 61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH 61824C - PAD, NOISE SHUTTER, NO.1 61825C - PAD, NOISE SHUTTER, NO.2 ** Std Part ** Std Part
