TOYOTA LAND CRUISER PRADO TRJ155L-GJPEKV / BODY / SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

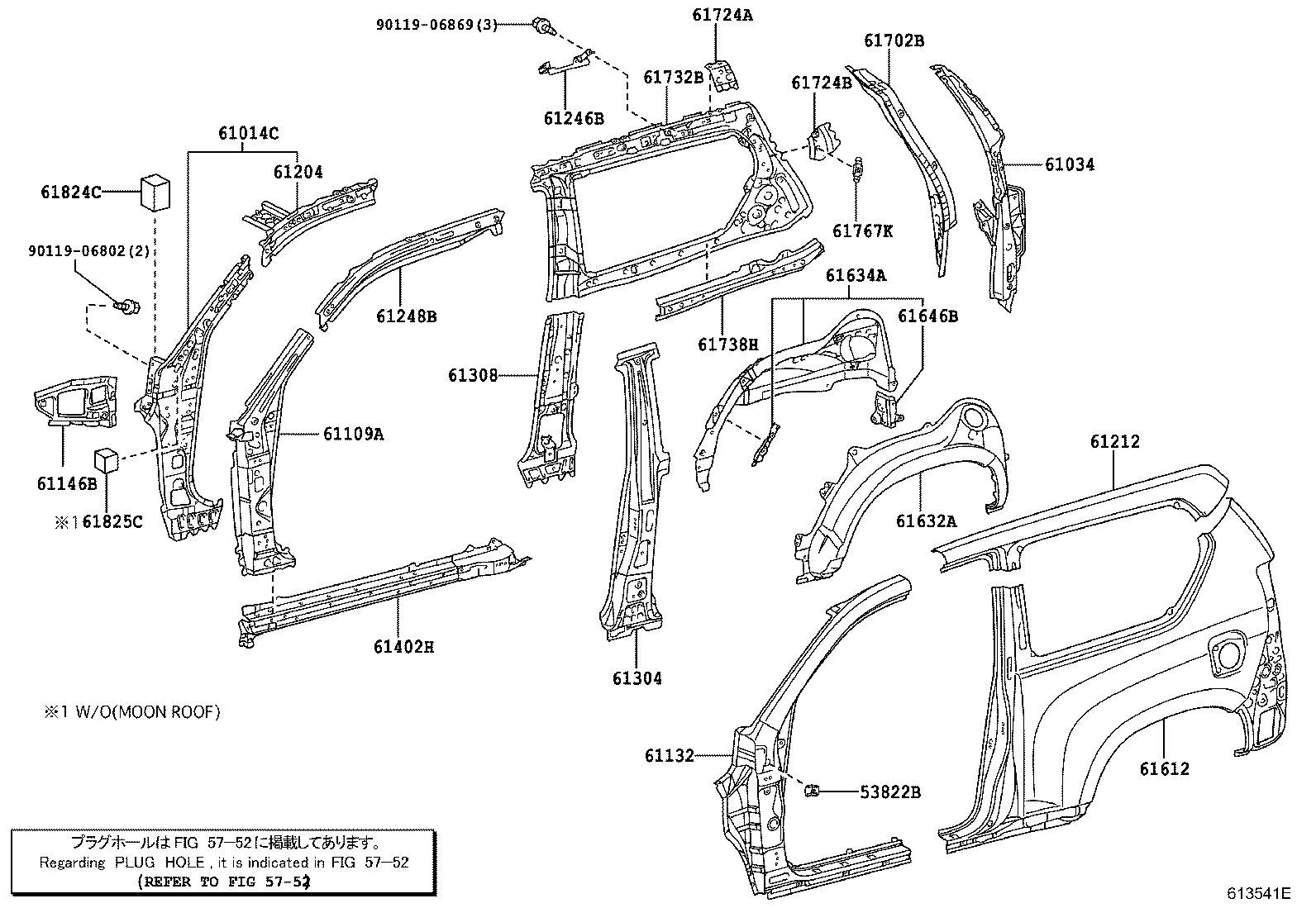

SIDE MEMBER

LH SIDE ILLUST NO. 2 OF 2(0908- )TRJ155

LAND CRUISER PRADO | SIDE MEMBER 53822B - BRACKET, FRONT FENDER, REAR LH ** Refer Fig 61014C - PANEL SUB-ASSY, SIDE, INNER LH 61034 - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH 61132 - PILLAR, FRONT BODY, UPPER OUTER LH 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH 61212 - RAIL, ROOF SIDE, OUTER LH 61246B - BRACKET, ASSIST GRIP, NO.3 LH 61248B - REINFORCEMENT, ROOF SIDE RAIL, INNER LH 61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH 61402H - REINFORCEMENT SUB-ASSY, ROCKER PANEL, LH 61612 - PANEL, QUARTER, LH 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH 61702B - PANEL SUB-ASSY, ROOF SIDE, INNER UPPER LH 61724A - REINFORCEMENT, QUARTER WINDOW OPENING, LH NO.1 61724B - REINFORCEMENT, QUARTER WINDOW OPENING, NO.2 LH 61732B - PANEL, ROOF SIDE, INNER LH 61738H - REINFORCEMENT, ROOF SIDE, INNER LH 61767K - RETAINER, SEAT BELT ANCHOR, NO.2 LH 61824C - PAD, NOISE SHUTTER, NO.1 61825C - PAD, NOISE SHUTTER, NO.2 ** Std Part ** Std Part
