TOYOTA LAND CRUISER PRADO TRJ155L-GJPEKV / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

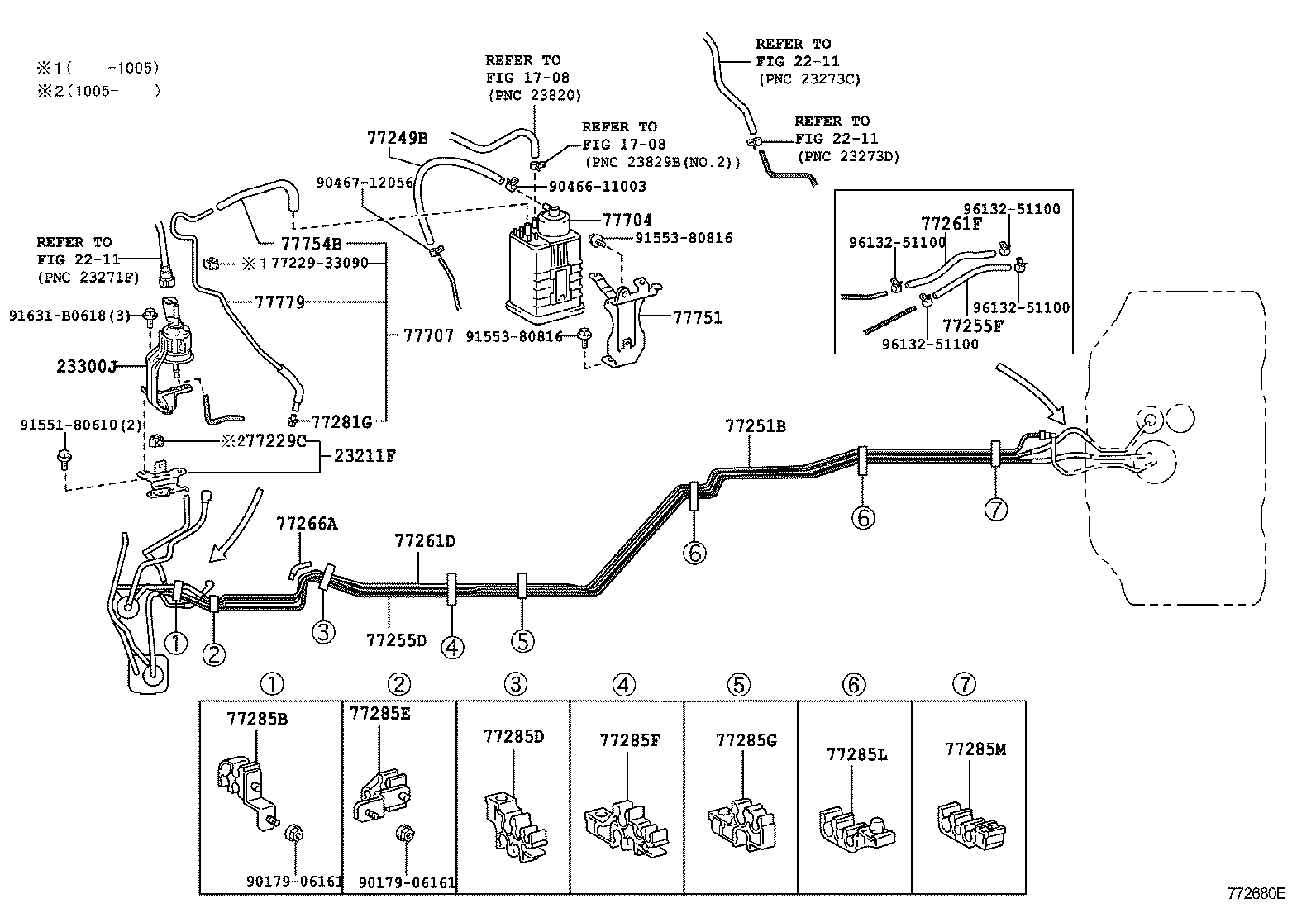

FUEL TANK TUBE

FUEL TUBE ILLUST NO. 2 OF 3(0908- )TRJ155

LAND CRUISER PRADO | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 23211F - BRACKET 23300J - FILTER ASSY, FUEL ** Std Part 77229C - CLAMP, BREATHER TUBE 77249B - HOSE, FUEL 77251B - TUBE, FUEL MAIN 77255D - TUBE, FUEL RETURN 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) 77261D - TUBE, FUEL TANK TO CANISTER 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) 77266A - PROTECTOR, FUEL TUBE, NO.1 77281G - CLAMP, FUEL HOSE 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 77285D - CLAMP, FUEL TUBE, NO.1 77285E - CLAMP, FUEL TUBE W/GROMMET, NO.1 77285F - CLAMP, FUEL TUBE, NO.1 77285G - CLAMP, FUEL TUBE, NO.1 77285L - CLAMP, FUEL TUBE, NO.1 77285M - CLAMP, FUEL TUBE, NO.1 77704 - CANISTER SUB-ASSY, CHARCOAL 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET 77751 - BRACKET, CHARCOAL CANISTER BASE 77754B - HOSE, CHARCOAL CANISTER OUTLET 77779 - TUBE, CHARCOAL CANISTER OUTLET ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
