TOYOTA PREVIA TARAGO ACR50R-GFXGK / POWERTRAIN-CHASSIS / TRANSAXLE ASSY CVT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

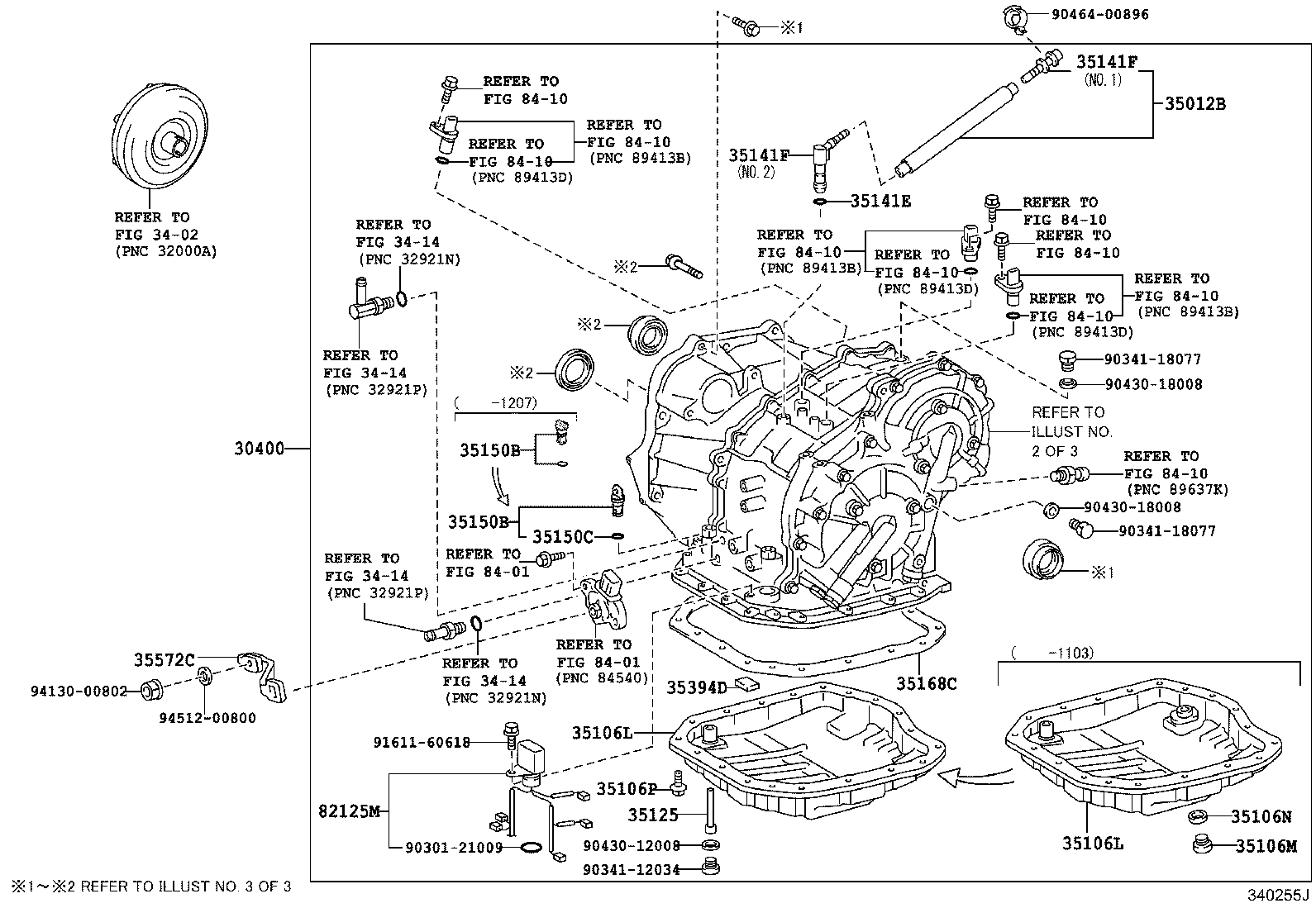

TRANSAXLE ASSY CVT

K112 ILLUST NO. 1 OF 3(1003- )RHD..CVFC..DLX,GL..GEN

PREVIA TARAGO | TRANSAXLE ASSY CVT 30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 35012B - HOSE SUB-ASSY, TRANSMISSION BREATHER 35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT) 35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT) 35106M - PLUG SUB-ASSY, DRAIN(CVT) 35106N - GASKET, DRAIN PLUG(CVT) 35106P - BOLT(FOR TRANSAXLE OIL PAN) 35125 - TUBE, TRANSMISSION OIL FILLER, NO.1 35141E - RING, O(FOR BREATHER PLUG) 35141F - PLUG, BREATHER, NO.1(CVT) 35141F - PLUG, BREATHER, NO.1(CVT) 35150B - PLUG ASSY, TRANSMISSION CASE 35150B - PLUG ASSY, TRANSMISSION CASE 35150C - RING, O (FOR TRANSMISSION CASE PLUG) 35168C - GASKET, TRANSAXLE OIL PAN(CVT) 35394D - MAGNET, OIL CLEANER(CVT) 35572C - LEVER, TRANSMISSION CONTROL SHAFT 82125M - WIRE, TRANSMISSION ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
