TOYOTA PREVIA TARAGO ACR50R-GFXGK / POWERTRAIN-CHASSIS / TRANSAXLE ASSY CVT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

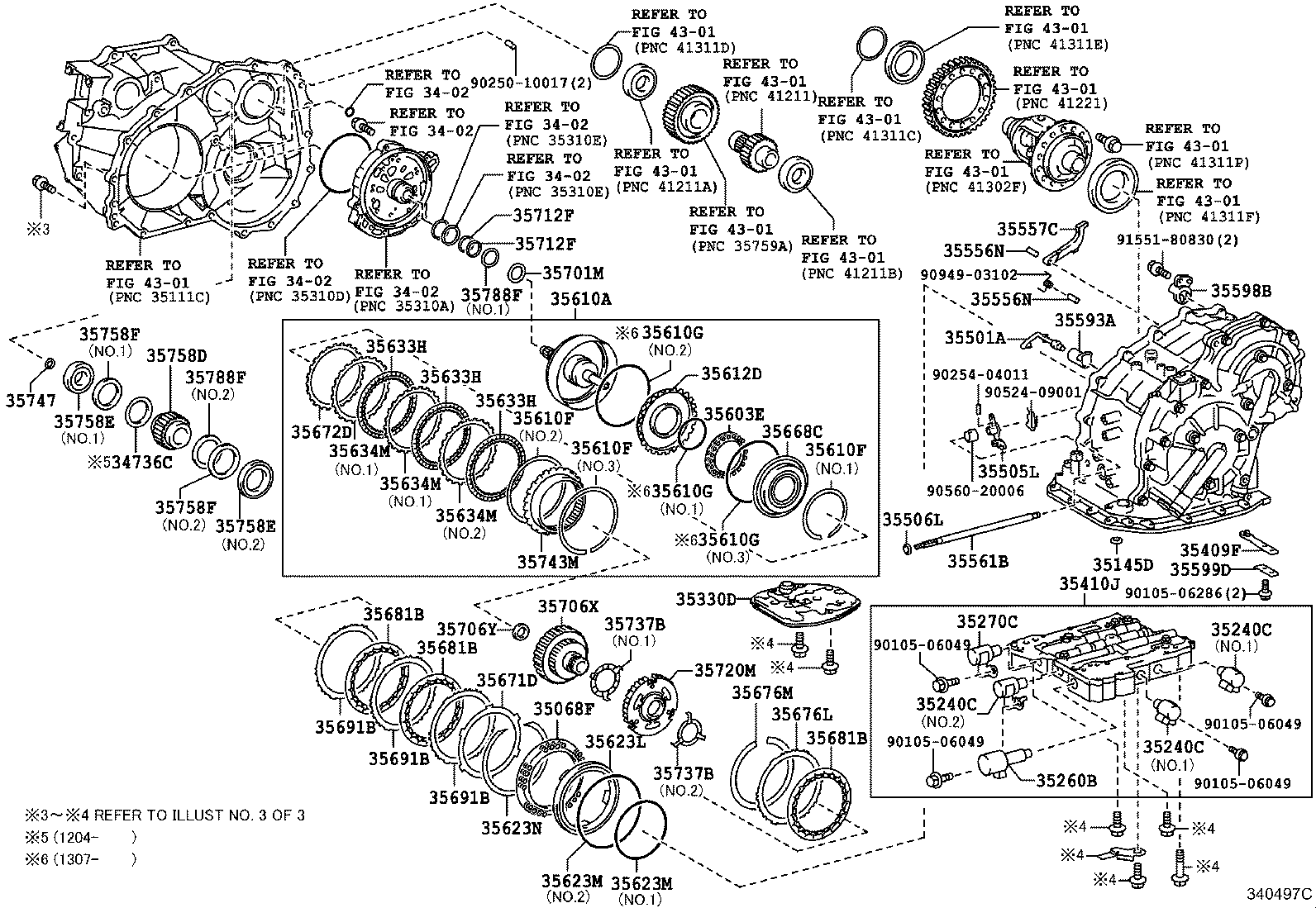

TRANSAXLE ASSY CVT

K112 ILLUST NO. 2 OF 3(1003- )CVFC..DLX,GL..GEN

PREVIA TARAGO | TRANSAXLE ASSY CVT ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 34736C - RACE, THRUST BEARING UNDERDRIVE, NO.2 35068F - SPRING SUB-ASSY, REVERSE BRAKE RETURN 35145D - GASKET, TRANSAXLE CASE 35240C - SOLENOID ASSY, TRANSMISSION 3WAY, NO.1 35240C - SOLENOID ASSY, TRANSMISSION 3WAY, NO.1 35240C - SOLENOID ASSY, TRANSMISSION 3WAY, NO.1 35260B - SOLENOID ASSY, SHEAVE CONTROL 35270C - SOLENOID ASSY, TRANSMISSION 3WAY LOCK UP 35330D - STRAINER ASSY, OIL 35409F - SPRING SUB-ASSY, MANUAL DETENT 35410J - BODY ASSY, TRANSMISSION VALVE 35501A - ROD SUB-ASSY, PARKING LOCK 35505L - LEVER SUB-ASSY, MANUAL VALVE 35506L - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) 35556N - SHAFT, PARKING LOCK PAWL 35556N - SHAFT, PARKING LOCK PAWL 35557C - PAWL, PARKING LOCK 35561B - SHAFT, MANUAL VALVE LEVER 35593A - SLEEVE, CAM GUIDE 35598B - SLEEVE, PARKING LOCK 35599D - COVER, MANUAL DETENT SPRING 35603E - SPRING SUB-ASSY, FORWARD CLUTCH RETURN 35610A - CLUTCH ASSY, FORWARD MULTIPLE DISC 35610F - RING, SNAP (FOR FORWARD MULTIPLE DISC CLUTCH) 35610F - RING, SNAP (FOR FORWARD MULTIPLE DISC CLUTCH) 35610F - RING, SNAP (FOR FORWARD MULTIPLE DISC CLUTCH) 35610G - RING, O (FOR FORWARD MULTIPLE DISC CLUTCH) 35610G - RING, O (FOR FORWARD MULTIPLE DISC CLUTCH) 35610G - RING, O (FOR FORWARD MULTIPLE DISC CLUTCH) 35612D - PISTON, FORWARD CLUTCH 35623L - PISTON, REVERSE BRAKE 35623M - RING, O (FOR REVERSE BRAKE PISTON) 35623M - RING, O (FOR REVERSE BRAKE PISTON) 35623N - RING, SNAP (FOR REVERSE BRAKE PISTON) 35633H - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) 35633H - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) 35633H - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) 35634M - PLATE, CLUTCH, NO.1(FOR FORWARD MULTIPLE DISC CLUTCH) 35634M - PLATE, CLUTCH, NO.1(FOR FORWARD MULTIPLE DISC CLUTCH) 35634M - PLATE, CLUTCH, NO.1(FOR FORWARD MULTIPLE DISC CLUTCH) 35668C - BALANCER, CLUTCH, NO.1 35671D - PLATE, BRAKE CUSHION 35672D - PLATE, CLUTCH CUSHION 35676L - FLANGE, BRAKE 35676M - RING, SNAP (FOR BRAKE FLANGE) 35681B - DISC, BRAKE, NO.1 35681B - DISC, BRAKE, NO.1 35681B - DISC, BRAKE, NO.1 35691B - PLATE, BRAKE, NO.1 35691B - PLATE, BRAKE, NO.1 35691B - PLATE, BRAKE, NO.1 35701M - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT) 35706X - GEAR SUB-ASSY, PLANETARY SUN 35706Y - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR) 35712F - RING, INPUT SHAFT OIL SEAL 35712F - RING, INPUT SHAFT OIL SEAL 35720M - GEAR ASSY, PLANETARY 35737B - WASHER, PLANETARY CARRIER THRUST 35737B - WASHER, PLANETARY CARRIER THRUST 35743M - GEAR, PLANETARY RING 35747 - RING, SHEAVE SHAFT OIL SEAL 35758D - GEAR, REDUCTION DRIVE 35758E - BEARING, CYLINDRICAL ROLLER (FOR REDUCTION DRIVE GEAR) 35758E - BEARING, CYLINDRICAL ROLLER (FOR REDUCTION DRIVE GEAR) 35758F - BEARING, THRUST NEEDLE ROLLER (FOR REDUCTION DRIVE GEAR) 35758F - BEARING, THRUST NEEDLE ROLLER (FOR REDUCTION DRIVE GEAR) 35788F - RACE, THRUST BEARING 35788F - RACE, THRUST BEARING ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
