TOYOTA PRIUS C NHP10R-AHXVB / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

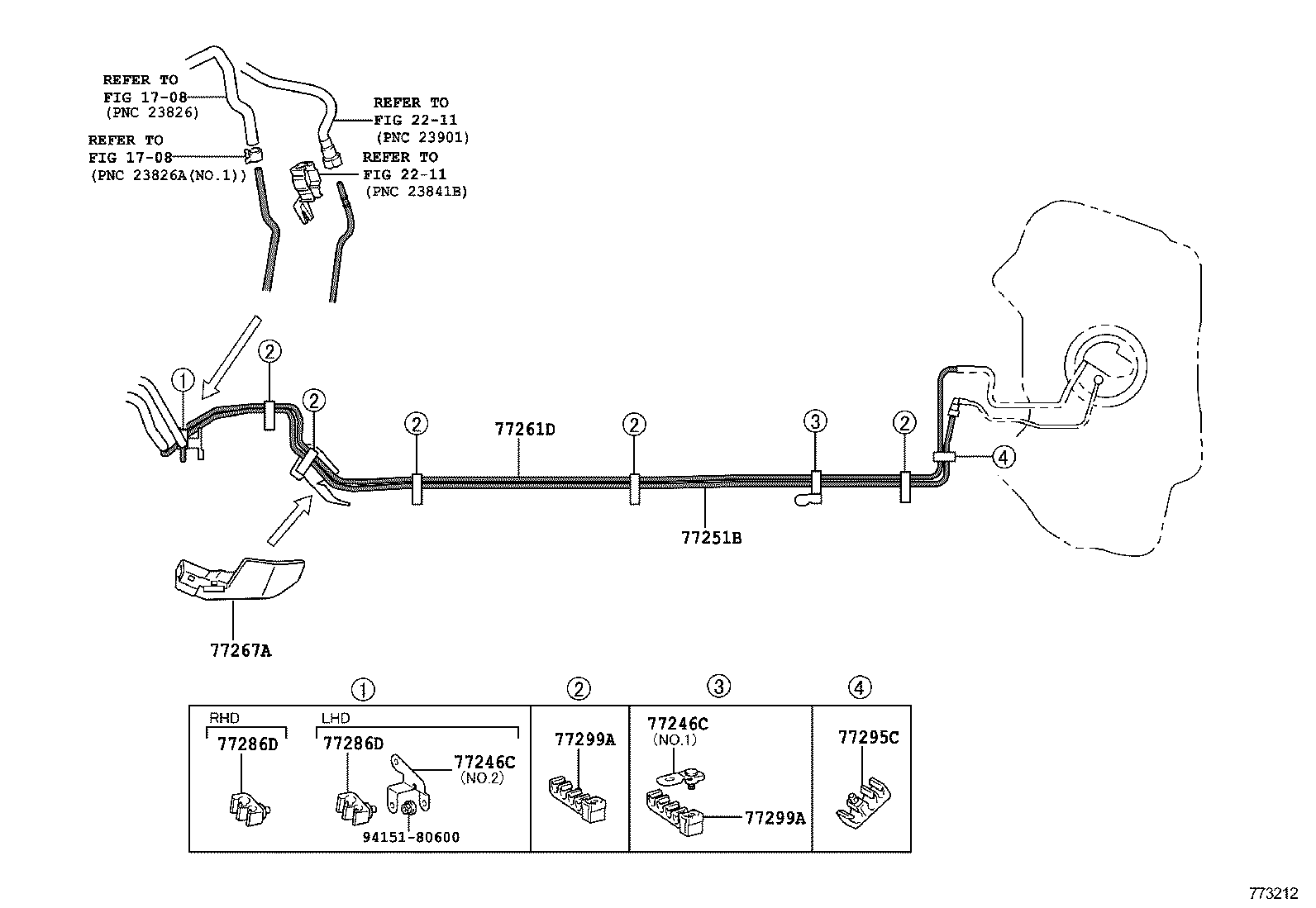

FUEL TUBE ILLUST NO. 2 OF 3(1112- )

 PRIUS C |  FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 77246C - SUPPORT, FUEL MAIN TUBE 77246C - SUPPORT, FUEL MAIN TUBE 77251B - TUBE, FUEL MAIN 77261D - TUBE, FUEL TANK TO CANISTER 77267A - PROTECTOR, FUEL TUBE, NO.2 77286D - CLAMP, FUEL TUBE, NO.2 77286D - CLAMP, FUEL TUBE, NO.2 77295C - GROMMET, FUEL TUBE 77299A - CLAMP, FUEL TUBE, NO.5 77299A - CLAMP, FUEL TUBE, NO.5  ** Std Part
