TOYOTA PRIUS CHINA ZVW30L-AHXEBC / ELECTRICAL / BATTERY BATTERY CABLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BATTERY BATTERY CABLE

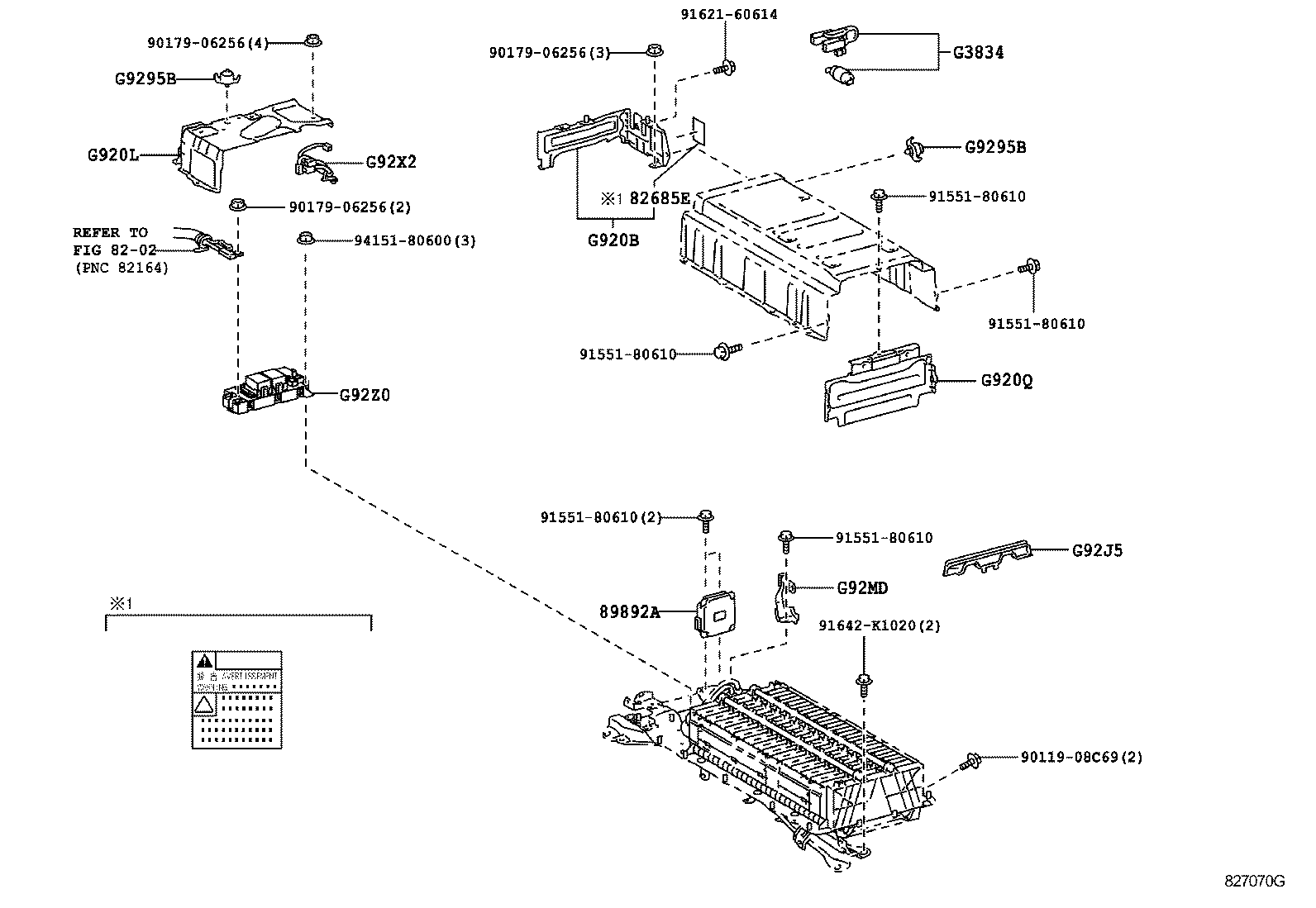

HV BATTERY ILLUST NO. 3 OF 4(1112- )

 PRIUS CHINA |  BATTERY BATTERY CABLE ** Refer Fig 82685E - PLATE, SERVICE PLUG CAUTION 89892A - SENSOR, BATTERY VOLTAGE  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part G3834 - GRIP, SERVICE PLUG G920B - BRACKET SUB-ASSY, HYBRID VEHICLE BATTERY CARRIER, NO.1 G920L - COVER SUB-ASSY, HYBRID BATTERY, UPPER G920Q - SHIELD SUB-ASSY, HYBRID BATTERY, NO.1 G9295B - STRIKER, BATTERY COVER LOCK G9295B - STRIKER, BATTERY COVER LOCK G92J5 - PACKING, HYBRID BATTERY, NO.1 G92MD - BRACKET, HV BATTERY UPPER CARRIER, NO.7 G92X2 - WIRE, HYBRID BATTERY PACK, NO.2 G92Z0 - BLOCK ASSY, HYBRID BATTERY JUNCTION
