TOYOTA WISH ZGE21R-HPXGP / POWERTRAIN-CHASSIS / TRANSAXLE ASSY CVT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

TRANSAXLE ASSY CVT

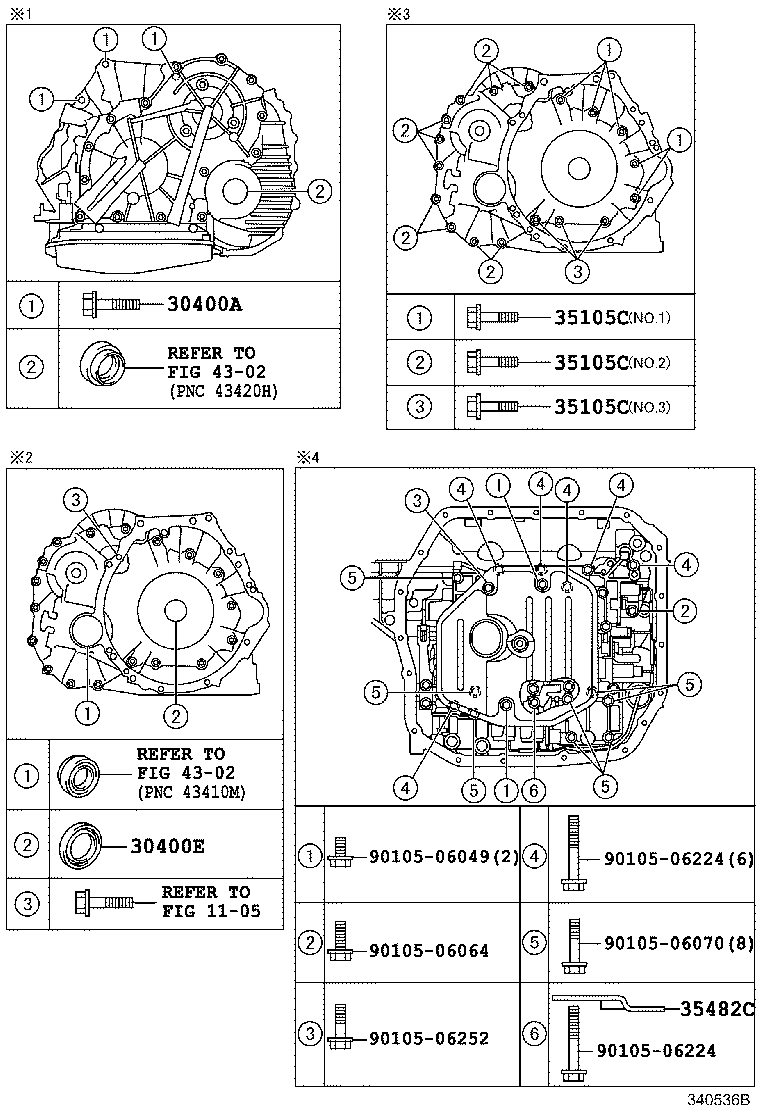

K111 ILLUST NO. 3 OF 3(1006- )ZGE21,22

WISH | TRANSAXLE ASSY CVT ** Refer Fig 30400A - BOLT(FOR TRANSAXLE & ENGINE SETTING) 30400E - SEAL, TYPE T OIL(FOR CVT OIL PUMP) 35105C - BOLT(FOR TRANSAXLE HOUSING & CASE SET) 35105C - BOLT(FOR TRANSAXLE HOUSING & CASE SET) 35105C - BOLT(FOR TRANSAXLE HOUSING & CASE SET) 35482C - CLAMP, TEMPERATURE SENSOR ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
