TOYOTA YARIS ASIA NCP91L-AHMRKM / POWERTRAIN-CHASSIS / CLUTCH PEDAL FLEXIBLE HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

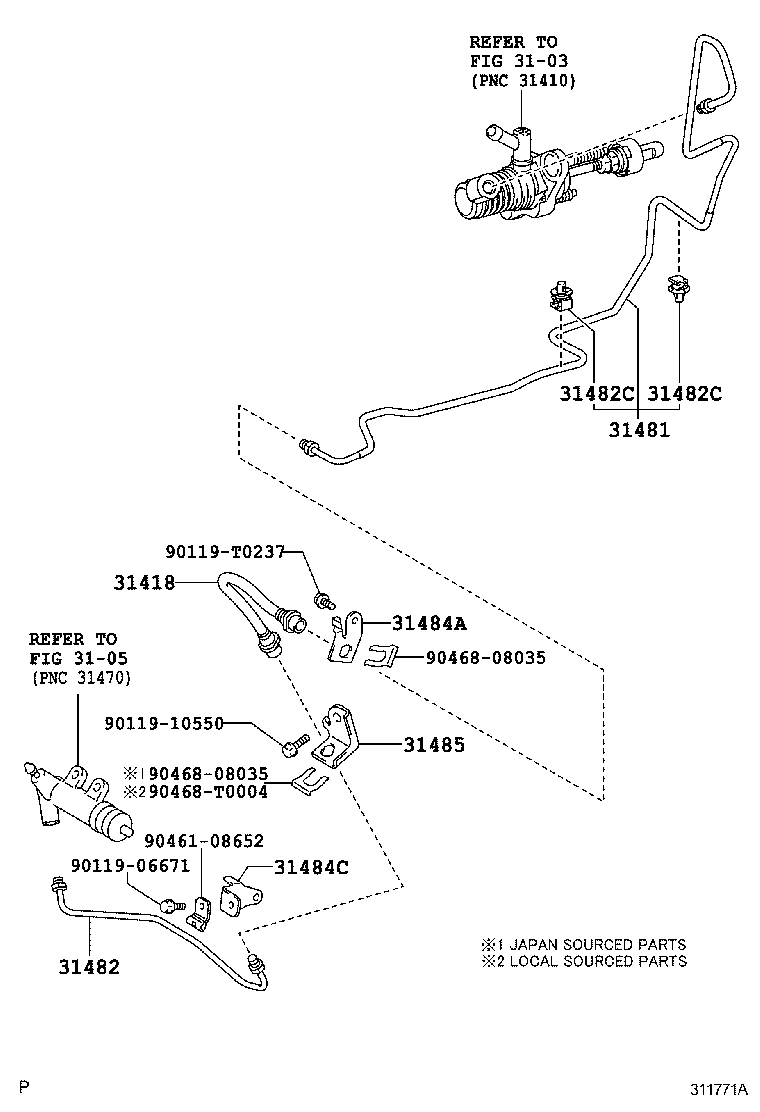

CLUTCH PEDAL FLEXIBLE HOSE

ILLUST NO. 2 OF 2(0701- )MTM..PH

YARIS ASIA | CLUTCH PEDAL FLEXIBLE HOSE ** Refer Fig ** Refer Fig 31418 - HOSE, CLUTCH 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE 31482C - CLAMP(FOR CLUTCH TUBE) 31482C - CLAMP(FOR CLUTCH TUBE) 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) 31484C - BRACKET, CLUTCH TUBE, NO.1 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
