TOYOTA GT86 86 ZN6AK-E8 / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

RADIATOR WATER OUTLET

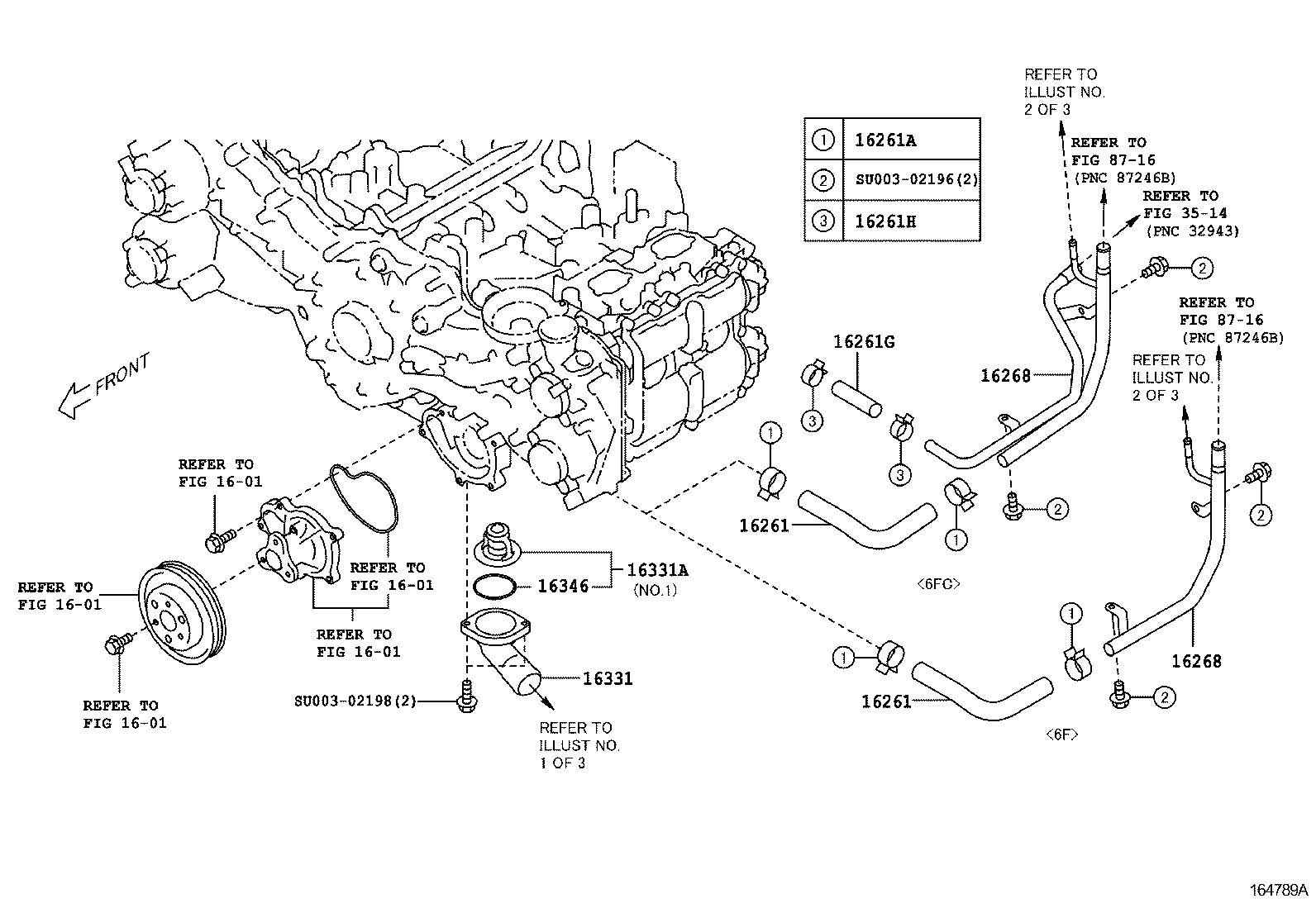

WATER OUTLET ILLUST NO. 3 OF 3(1204- )FA20..BASE,HI,LOW,LOWC

 GT86 86 |  RADIATOR WATER OUTLET ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 16261 - HOSE, WATER BY-PASS 16261 - HOSE, WATER BY-PASS 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261G - HOSE, WATER BY-PASS, NO.1 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) 16268 - PIPE, WATER BY-PASS, NO.1 16268 - PIPE, WATER BY-PASS, NO.1 16331 - OUTLET, WATER 16331A - THERMOSTAT 16346 - GASKET, THERMOSTAT ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part
