TOYOTA LAND CRUISER PRADO GRJ150L-GKAEKC / BODY / CONSOLE BOX BRACKET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

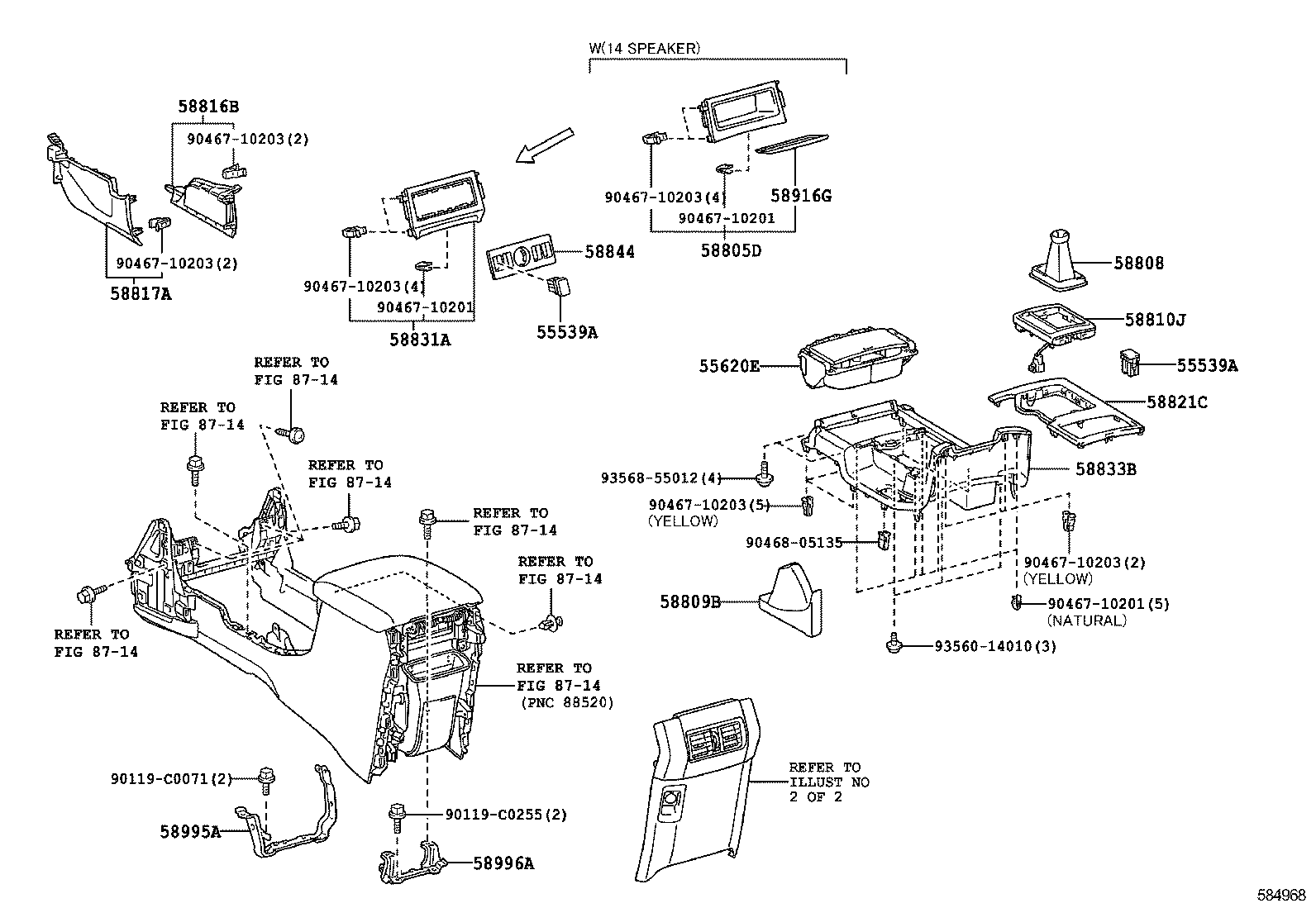

CONSOLE BOX BRACKET

ILLUST NO. 1 OF 2(1311- )

LAND CRUISER PRADO | CONSOLE BOX BRACKET 55539A - COVER, SPARE SWITCH HOLE 55539A - COVER, SPARE SWITCH HOLE 55620E - HOLDER ASSY, INSTRUMENT PANEL CUP 58805D - COVER SUB-ASSY, TRANSFER LEVER HOLE 58808 - COVER SUB-ASSY, SHIFTING HOLE 58809B - COVER SUB-ASSY, PARKING BRAKE HOLE 58810J - BOX ASSY, CONSOLE 58816B - INSERT, CONSOLE BOX 58817A - INSERT, CONSOLE BOX, FRONT NO.2 58821C - PANEL, CONSOLE, UPPER 58831A - GARNISH, CONSOLE UPPER PANEL, FRONT 58833B - GARNISH, CONSOLE UPPER PANEL, NO.1 58844 - BEZEL, CONSOLE BOX 58916G - MAT, BOX BOTTOM, NO.2 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
