TOYOTA HIACE KDH220R-MSMDYN / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

RADIATOR WATER OUTLET

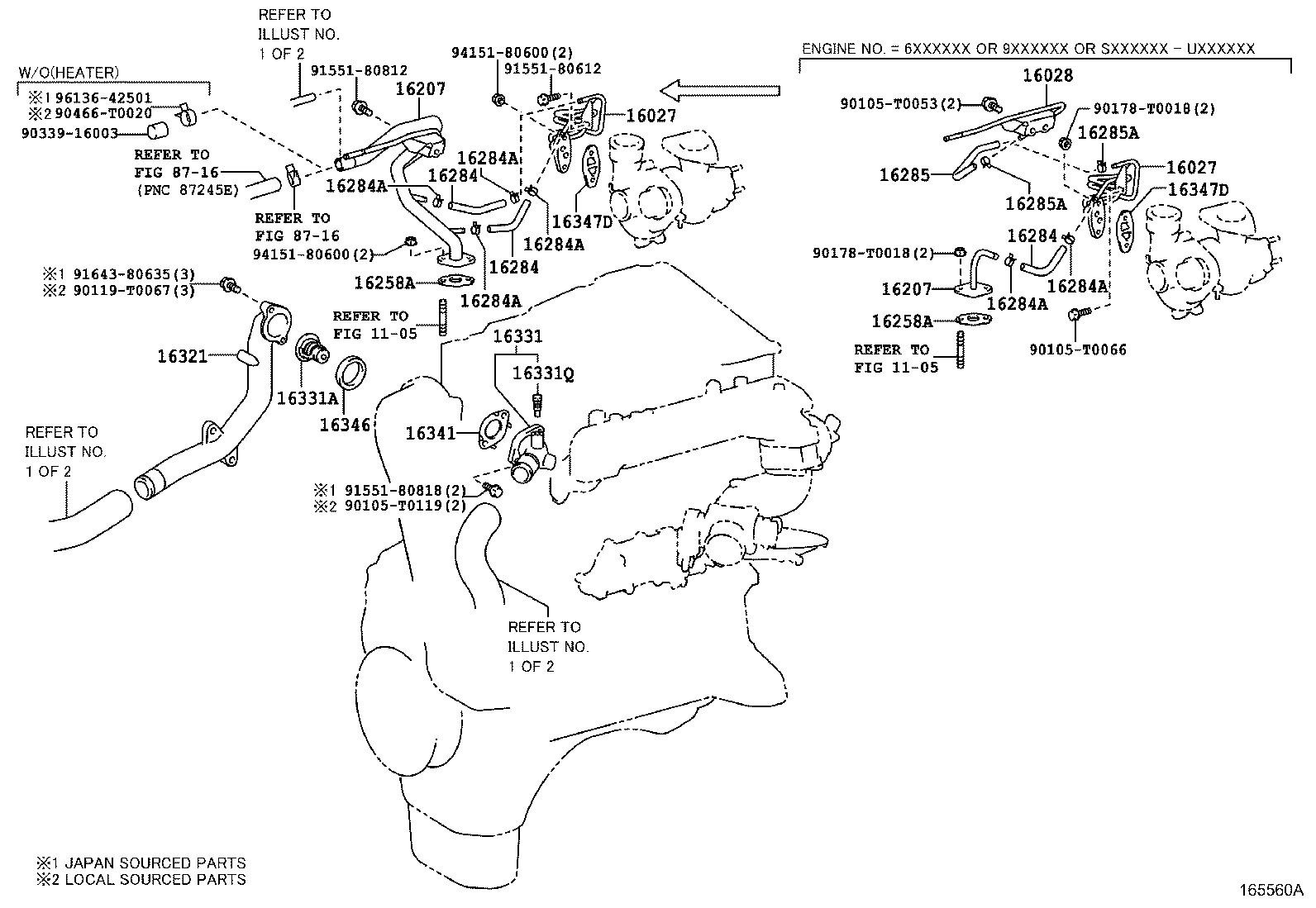

ILLUST NO. 2 OF 2(1312- )2KDFTV

HIACE | RADIATOR WATER OUTLET ** Refer Fig ** Refer Fig 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 16028 - PIPE SUB-ASSY, TURBO WATER, NO.2 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 16258A - GASKET(FOR HEATER RETURN) 16258A - GASKET(FOR HEATER RETURN) 16284 - HOSE, TURBO WATER, NO.1 16284 - HOSE, TURBO WATER, NO.1 16284 - HOSE, TURBO WATER, NO.1 16284A - CLIP(FOR TURBO WATER HOSE NO.1) 16284A - CLIP(FOR TURBO WATER HOSE NO.1) 16284A - CLIP(FOR TURBO WATER HOSE NO.1) 16284A - CLIP(FOR TURBO WATER HOSE NO.1) 16284A - CLIP(FOR TURBO WATER HOSE NO.1) 16284A - CLIP(FOR TURBO WATER HOSE NO.1) 16285 - HOSE, TURBO WATER, NO.2 16285A - CLIP(FOR TURBO WATER HOSE NO.2) 16285A - CLIP(FOR TURBO WATER HOSE NO.2) 16321 - INLET, WATER 16331 - OUTLET, WATER 16331A - THERMOSTAT 16331Q - PLUG(FOR WATER OUTLET) 16341 - GASKET, WATER OUTLET 16346 - GASKET, THERMOSTAT 16347D - GASKET, WATER BY-PASS 16347D - GASKET, WATER BY-PASS ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
