TOYOTA LAND CRUISER 200 VDJ200L-GNTEZ / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

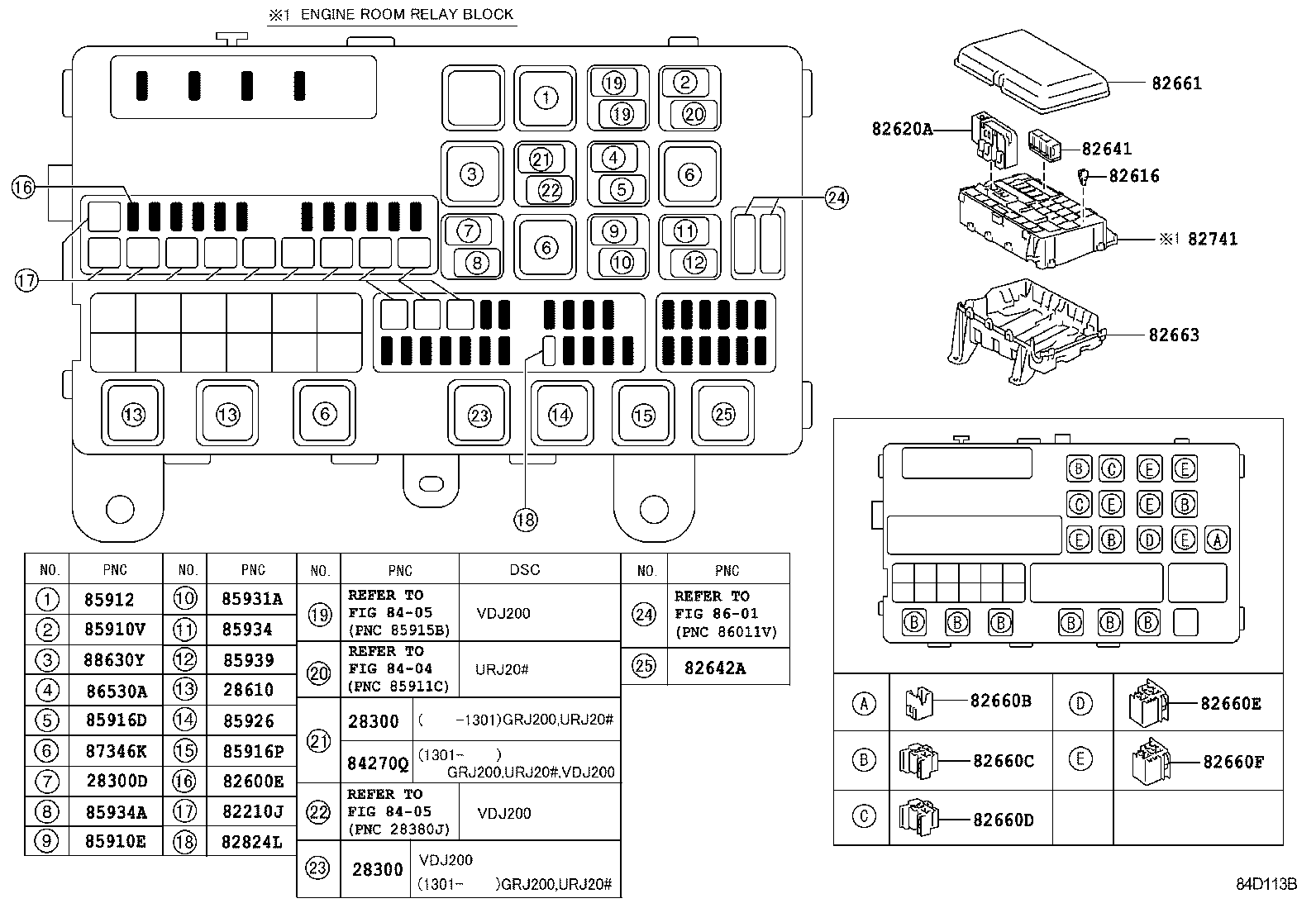

ENGINE ROOM RELAY BLOCK ILLUST NO. 3 OF 9(1201- )

 LAND CRUISER 200 |  SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER 28300 - RELAY ASSY, STARTER 28300D - RELAY, STARTER CUT 28610 - RELAY ASSY, GLOW PLUG 82210J - FUSIBLE LINK 82600E - ENGINE ROOM FUSE 82616 - PULLER, FUSE 82620A - BLOCK ASSY, FUSIBLE LINK 82641 - RELAY, INTEGRATION NO.1 82642A - RELAY, RUNNING LIGHT 82660B - BLOCK ASSY, RELAY 82660C - BLOCK ASSY, RELAY 82660D - BLOCK ASSY, RELAY 82660E - BLOCK ASSY, RELAY 82660F - BLOCK ASSY, RELAY 82661 - COVER, RELAY BLOCK, NO.1 82663 - COVER, RELAY BLOCK, LOWER 82741 - BLOCK, ENGINE ROOM RELAY 82824L - PIN, SHORT ** Refer Fig ** Refer Fig ** Refer Fig 84270Q - RELAY, LAMP CUT 85910E - RELAY, INJECTOR 85910V - RELAY, SEAT HEATER 85912 - RELAY, DEFOGGER 85916D - RELAY, FOG LAMP 85916P - RELAY, HEADLAMP 85926 - RELAY, HEADLAMP DIMMER 85931A - RELAY BRAKE LAMP 85934 - RELAY, MAGNET-CLUTCH 85934A - RELAY CONDENSER FAN 85939 - RELAY, POWER WINDOW ** Refer Fig 86530A - RELAY, HORN 87346K - RELAY, PTC HEATER 88630Y - RELAY, REAR COOLER
