TOYOTA PUBLICA KP31-SR / TOOL-ENGINE-FUEL / CARBURETOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

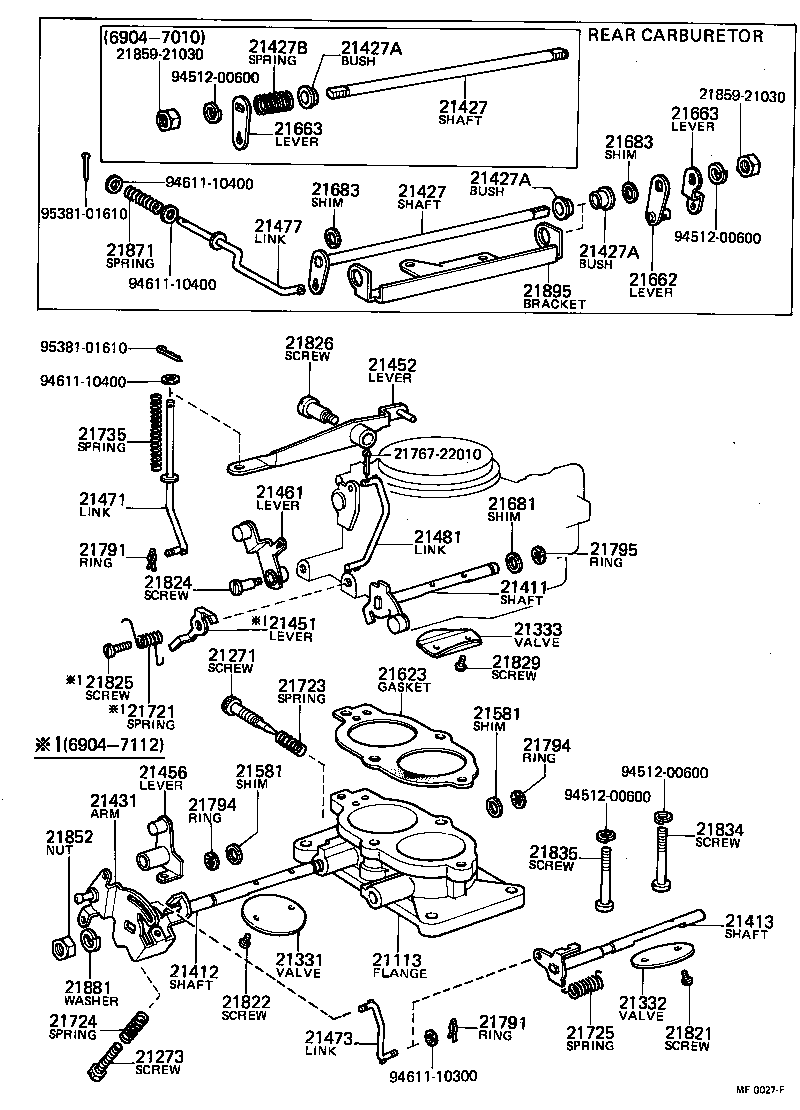

CARBURETOR

ILLUST NO. 2 OF 2(6904-7304)KB,3KB#

PUBLICA | CARBURETOR 21113 - FLANGE, CARBURETOR 21271 - SCREW, IDLE ADJUSTING 21273 - SCREW, THROTTLE ADJUSTING 21331 - VALVE, 1ST THROTTLE 21332 - VALVE, 2ND THROTTLE 21333 - VALVE, HIGH SPEED 21411 - SHAFT, HIGH SPEED 21412 - SHAFT, 1ST THROTTLE 21413 - SHAFT, 2ND THROTTLE 21427 - SHAFT, CHOKE CONNECTOR 21427 - SHAFT, CHOKE CONNECTOR 21427A - BUSH, SHAFT CHOKE CONNECTOR 21427A - BUSH, SHAFT CHOKE CONNECTOR 21427A - BUSH, SHAFT CHOKE CONNECTOR 21427B - SPRING, SHAFT CHOKE CONNECTOR 21431 - ARM, 1ST THROTTLE SHAFT 21451 - LEVER, HIGH SPEED VALVE STOP 21452 - LEVER, PUMP 21456 - LEVER, 1ST THROTTLE IDLE ADJUSTING, NO.1 21461 - LEVER, 1ST IDLE 21471 - LINK, PUMP CONNECTING 21473 - LINK, THROTTLE SHAFT 21477 - LINK, CHOKE LEVER 21481 - CONNECTOR, 1ST IDLE 21581 - SHIM, 1ST THROTTLE SHAFT 21581 - SHIM, 1ST THROTTLE SHAFT 21623 - GASKET, BODY FLANGE 21662 - LEVER, CHOKE CONNECTOR SHAFT, NO.1 21663 - LEVER, CHOKE CONNECTOR SHAFT, NO.2 21663 - LEVER, CHOKE CONNECTOR SHAFT, NO.2 21681 - SHIM(FOR HIGH SPEED SHAFT) 21683 - SHIM, CHOKE CONNECTOR SHAFT 21683 - SHIM, CHOKE CONNECTOR SHAFT 21721 - SPRING, HIGH SPEED VALVE STOP LEVER 21723 - SPRING, IDLE ADJUSTING 21724 - SPRING, THROTTLE ADJUSTING 21725 - SPRING, 2ND THROTTLE BACK 21735 - SPRING, PUMP ARM ** Std Part 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21794 - RING, RETAINER, NO.1(FOR THROTTLE SHAFT) 21794 - RING, RETAINER, NO.1(FOR THROTTLE SHAFT) 21795 - RING, RETAINER, NO.2(FOR HIGH SPEED SHAFT) 21821 - SCREW, 2ND THROTTLE VALVE SET 21822 - SCREW, 1ST THROTTLE VALVE SET 21824 - SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET) 21825 - SCREW, STOP LEVER SET 21826 - SCREW, PUMP ARM SET 21829 - SCREW, HIGH SPEED VALVE SET 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) 21835 - SCREW, SET, NO.3(FOR CARBURETOR BODY SET) 21852 - NUT, THROTTLE LEVER SET ** Std Part ** Std Part 21871 - SPRING, CHOKE CONNECTING LINK 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) 21895 - BRACKET, CHOKE CONNECTOR SHAFT ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
