TOYOTA TOWN MASTERACE V WG TR15G-MQ / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT SEAT TRACK

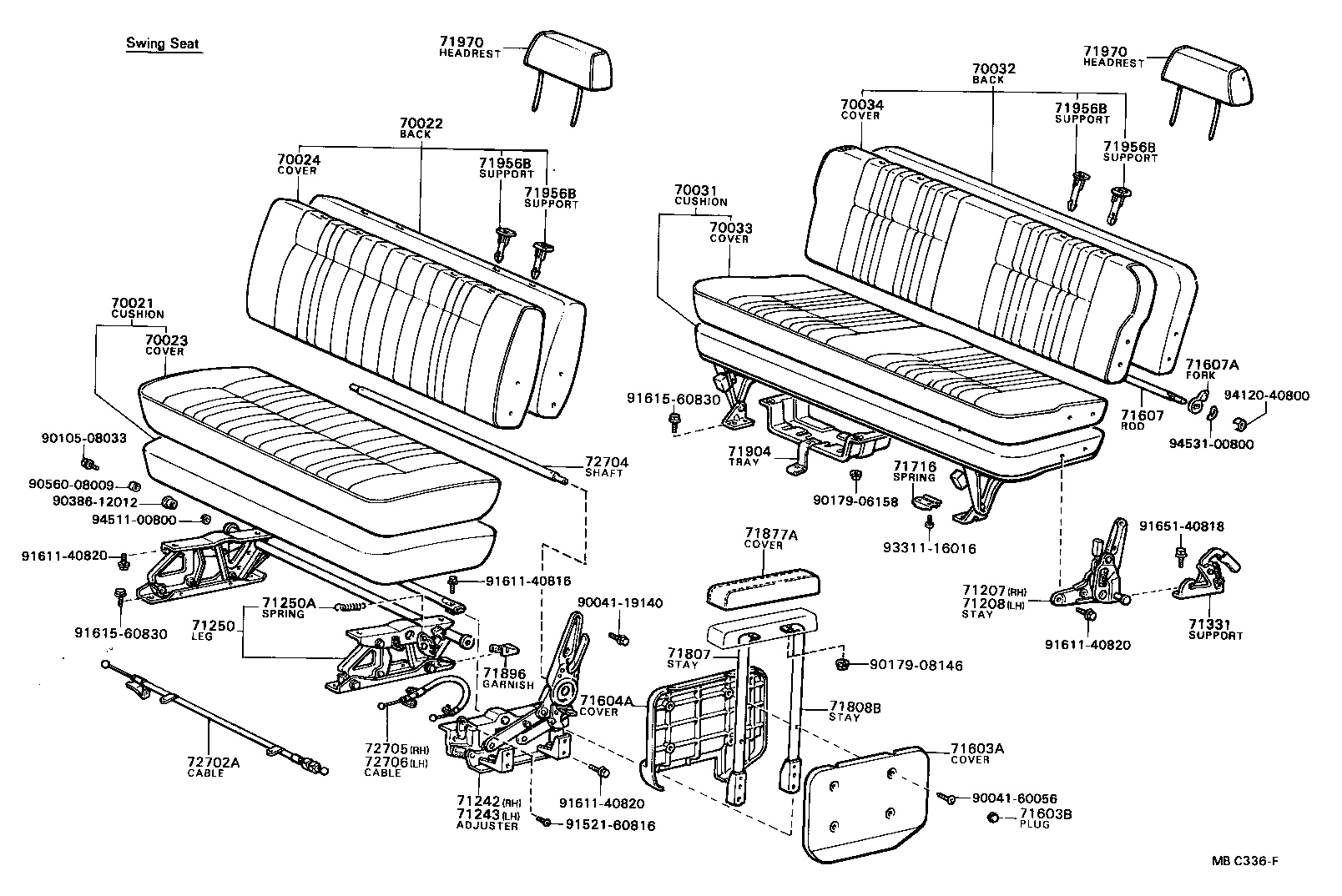

ILLUST NO. 2 OF 2(8101-8201)SNR,SRF..GEX,SUE ; (8201- )TR15..3

TOWN MASTERACE V WG | SEAT SEAT TRACK 70021 - CUSHION ASSY, NO.2 SEAT 70022 - BACK ASSY, NO.2 SEAT 70023 - COVER ASSY, NO.2 SEAT CUSHION 70024 - COVER ASSY, NO.2 SEAT BACK 70031 - CUSHION ASSY, NO.3 SEAT 70032 - BACK ASSY, NO.3 SEAT 70033 - COVER ASSY, NO.3 SEAT CUSHION 70034 - COVER ASSY, NO.3 SEAT BACK 71207 - STAY ASSY, REAR SEAT BACK, RH 71208 - STAY ASSY, REAR SEAT BACK, LH 71242 - HINGE, PASSENGER SEAT BACK, RH 71243 - HINGE, PASSENGER SEAT BACK, LH 71250 - LEG ASSY, REAR NO.1 SEAT 71250A - SPRING, REAR NO.1 SEAT LEG 71331 - SUPPORT, REAR SEAT CUSHION 71603A - COVER SUB-ASSY, REAR NO.1 SEAT, OUTER, LH 71603B - PLUG, HOLE(FOR REAR SEAT COVER) 71604A - COVER SUB-ASSY, REAR NO.1 SEAT, INNER LH 71607 - ROD SUB-ASSY, REAR NO.2 SEAT 71607A - FORK, REAR NO.2 SEAT RECLINING CONNECTING 71716 - SPRING, JACK HANDLE SUPPORT 71807 - STAY SUB-ASSY, REAR NO.1 SEAT ARMREST, FRONT 71808B - STAY SUB-ASSY, REAR NO.1 SEAT ARMREST, REAR 71877A - COVER SUB-ASSY, REAR NO.1 SEAT ARMREST 71896 - GARNISH, REAR NO.1 SEAT LEG REAR 71904 - TRAY SUB-ASSY, REAR SEAT HEADREST 71956B - SUPPORT, REAR SEAT HEADREST 71956B - SUPPORT, REAR SEAT HEADREST 71956B - SUPPORT, REAR SEAT HEADREST 71956B - SUPPORT, REAR SEAT HEADREST 71970 - HEADREST ASSY, REAR SEAT 71970 - HEADREST ASSY, REAR SEAT 72702A - CABLE SUB-ASSY, REVERSIBLE REAR SEAT LOCKING LEVER CONTROL 72704 - SHAFT SUB-ASSY, RECLINING CONNECT 72705 - CABLE SUB-ASSY, SEAT LOCK CONTROL, RH 72706 - CABLE SUB-ASSY, SEAT LOCK CONTROL, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
