TOYOTA CROWN GS126V-SXMFE / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FLOOR PAN LOWER BACK PANEL

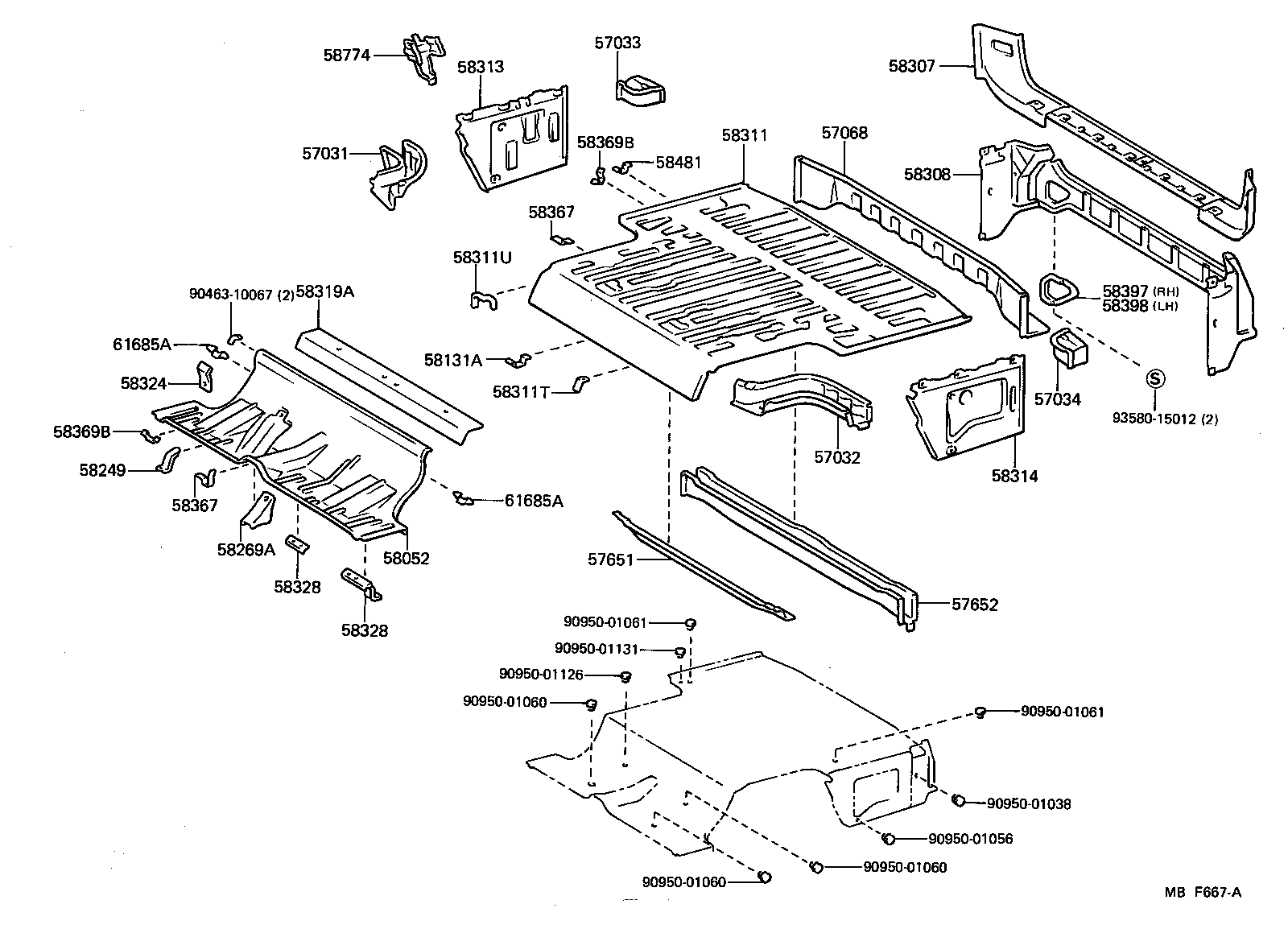

ILLUST NO. 2 OF 2(8308- )GS126,LS126

CROWN | FLOOR PAN LOWER BACK PANEL 57031 - BRACKET SUB-ASSY, NO.7 BODY MOUNTING, RH 57032 - BRACKET SUB-ASSY, NO.7 BODY MOUNTING, LH 57033 - BRACKET SUB-ASSY, NO.8 BODY MOUNTING, RH 57034 - BRACKET SUB-ASSY, NO.8 BODY MOUNTING, LH 57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER 57651 - CROSSMEMBER, REAR FLOOR, FRONT 57652 - CROSSMEMBER, REAR FLOOR, NO.2 58052 - PAN SUB-ASSY, CENTER FLOOR 58131A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 58249 - HANGER, PARKING BRAKE RETURN SPRING 58269A - BRACKET, PARKING BRAKE CABLE GUIDE, NO.3 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER 58311 - PAN, REAR FLOOR 58311T - CLAMP, NO.1(FOR REAR FLOOR) 58311U - CLAMP, NO.2(FOR REAR FLOOR) 58313 - PANEL, REAR FLOOR SIDE, RH 58314 - PANEL, REAR FLOOR SIDE, LH 58319A - PLATE, REAR FLOOR PANEL, FRONT 58324 - BRACKET, FLEXIBLE HOSE 58328 - REINFORCEMENT, SAFETY BELT ANCHORAGE 58328 - REINFORCEMENT, SAFETY BELT ANCHORAGE 58367 - BRACKET, FUEL TUBE CLAMP 58367 - BRACKET, FUEL TUBE CLAMP 58369B - BRACKET, FUEL TUBE, NO.3 58369B - BRACKET, FUEL TUBE, NO.3 58397 - COVER, LOWER BACK, OUTER RH 58398 - COVER, LOWER BACK, OUTER LH 58481 - PLATE, BLEETHER TUBE CATCH 58774 - BRACKET, JACK, NO.2 61685A - BRACKET, REAR SEAT BACK MOUNTING 61685A - BRACKET, REAR SEAT BACK MOUNTING ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
