TOYOTA SOARER MZ10-HCPNT / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

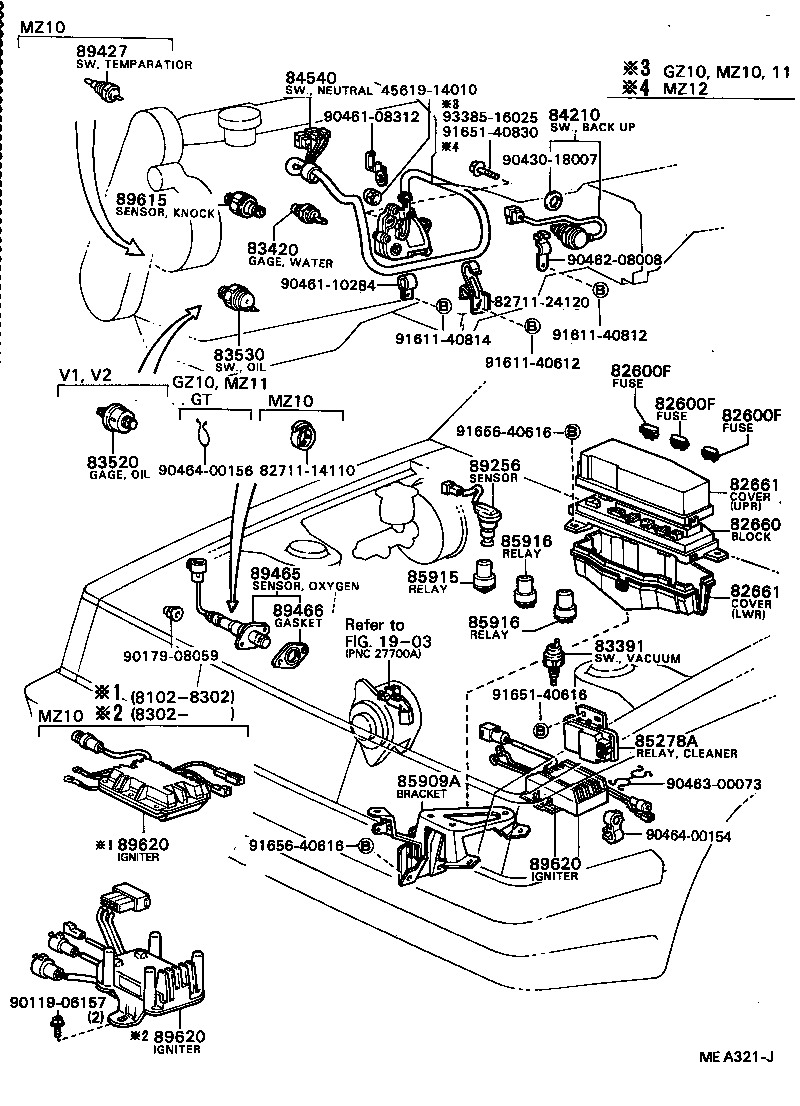

ILLUST NO. 1 OF 5(8102- )

SOARER | SWITCH RELAY COMPUTER ** Refer Fig ** Std Part 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82660 - BLOCK ASSY, RELAY, ENGINE ROOM 82661 - COVER, RELAY BLOCK, NO.1 82661 - COVER, RELAY BLOCK, NO.1 ** Std Part ** Std Part 83391 - SWITCH, VACUUM 83420 - GAGE ASSY, WATER TEMPERATURE SENDER 83520 - GAGE ASSY,OIL PRESSURE SENDER 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) 84210 - SWITCH ASSY, BACK-UP LAMP 84540 - SWITCH ASSY, NEUTRAL START 85278A - RELAY ASSY, HEADLAMP CLEANER CONTROL 85909A - BRACKET SUB-ASSY, RELAY BLOCK 85915 - RELAY, MAIN 85916 - RELAY, LIGHT CONTROL 85916 - RELAY, LIGHT CONTROL 89256 - SENSOR, LEVEL WARNING 89427 - SWITCH, TEMPERATURE DETECT 89465 - SENSOR, OXYGEN 89466 - GASKET, OXYGEN SENSOR 89615 - SENSOR, KNOCK CONTROL 89620 - IGNITER ASSY 89620 - IGNITER ASSY 89620 - IGNITER ASSY ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
