TOYOTA SOARER MZ10-HCPNT / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

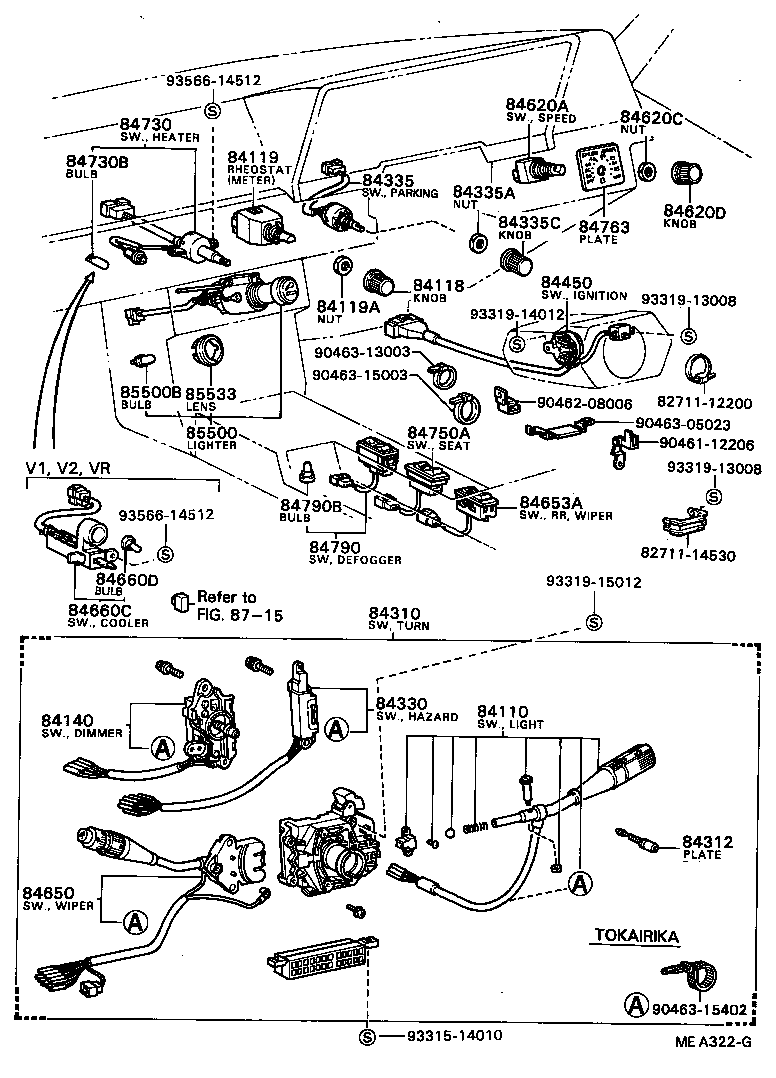

ILLUST NO. 2 OF 5(8102-8302)

SOARER | SWITCH RELAY COMPUTER ** Std Part ** Std Part 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 84118 - KNOB, LIGHT CONTROL RHEOSTAT 84119 - RHEOSTAT, LIGHT CONTROL 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET 84140 - SWITCH ASSY, HEADLAMP DIMMER 84310 - SWITCH ASSY, TURN SIGNAL 84312 - PLATE, HORN CONTACT 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL 84335 - SWITCH ASSY, PARKING LAMP 84335A - BOLT OR NUT, PARKING LAMP SWITCH SET 84335C - KNOB, PARKING LAMP SWITCH 84450 - SWITCH ASSY, IGNITION OR STARTER 84620A - SWITCH ASSY, SPEED WARNING 84620C - NUT, SPEED WARNING SWITCH 84620D - KNOB, SPEED WARNING SWITCH 84650 - SWITCH ASSY, WINDSHIELD WIPER 84653A - SWITCH, REAR WIPER 84660C - SWITCH, COOLER 84660D - BULB(FOR COOLER SWITCH) 84730 - SWITCH ASSY, HEATER BLOWER 84730B - BULB, HEATER BLOWER SWITCH 84750A - SWITCH ASSY, SEAT 84763 - PLATE, SWITCH 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) 85500 - LIGHTER ASSY, CIGARETTE 85500B - BULB, CIGARETTE LIGHTER 85533 - LENS, CIGARETTE LIGHTER INDICATOR ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
