TOYOTA SPRINTER CARIB AL25G-MWFNS / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

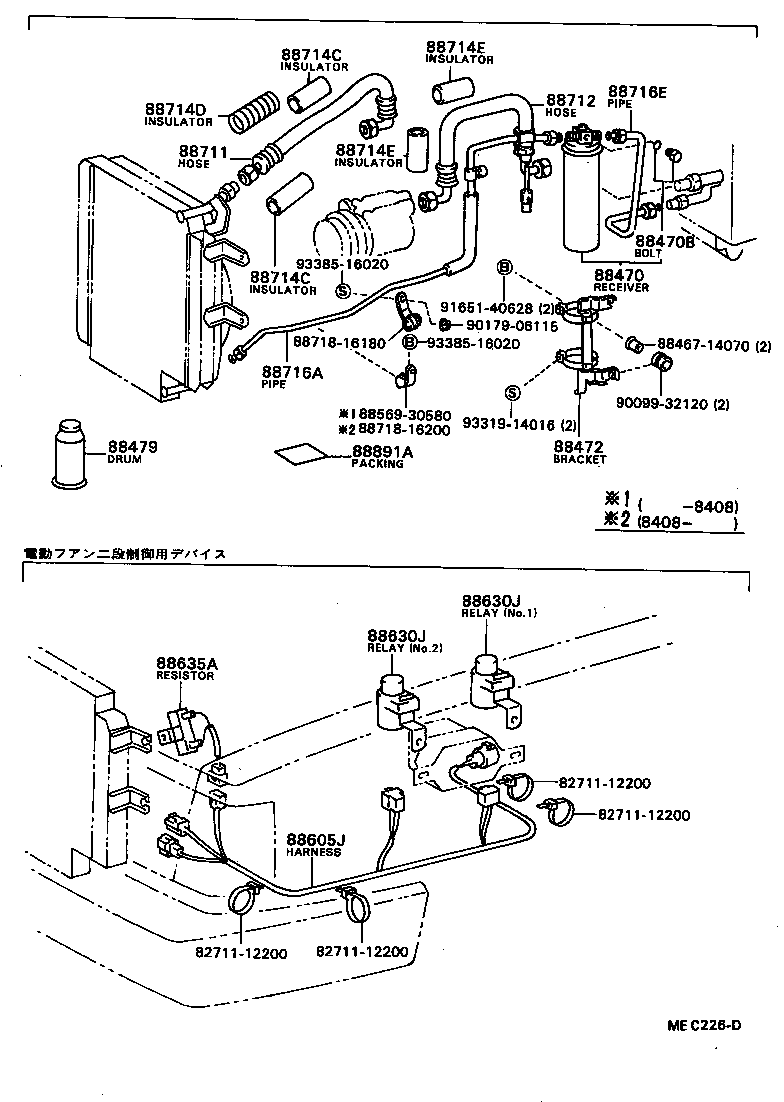

HEATING AIR CONDITIONING COOLER PIPING

ILLUST NO. 2 OF 2(8208- )

 SPRINTER CARIB |  HEATING AIR CONDITIONING COOLER PIPING  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part 88470 - RECEIVER & DRYER ASSY, COOLER 88470B - BOLT, FUSE 88472 - BRACKET, RECEIVER TANK, NO.1 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)  ** Std Part 88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING 88630J - RELAY ASSY (FOR CONDENSER MOTOR) 88630J - RELAY ASSY (FOR CONDENSER MOTOR) 88635A - RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR) 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 88714D - INSULATOR, COOLER REFRIGERANT HOSE, NO.2 88714E - INSULATOR, COOLER REFRIGERANT HOSE, NO.3 88714E - INSULATOR, COOLER REFRIGERANT HOSE, NO.3 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716E - PIPE, COOLER REFRIGERANT LIQUID, E  ** Std Part  ** Std Part 88891A - PACKING A (FOR COOLER)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
