TOYOTA LAND CRUISER VAN FJ62V-MRC / POWERTRAIN-CHASSIS / FRONT STEERING GEAR LINK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

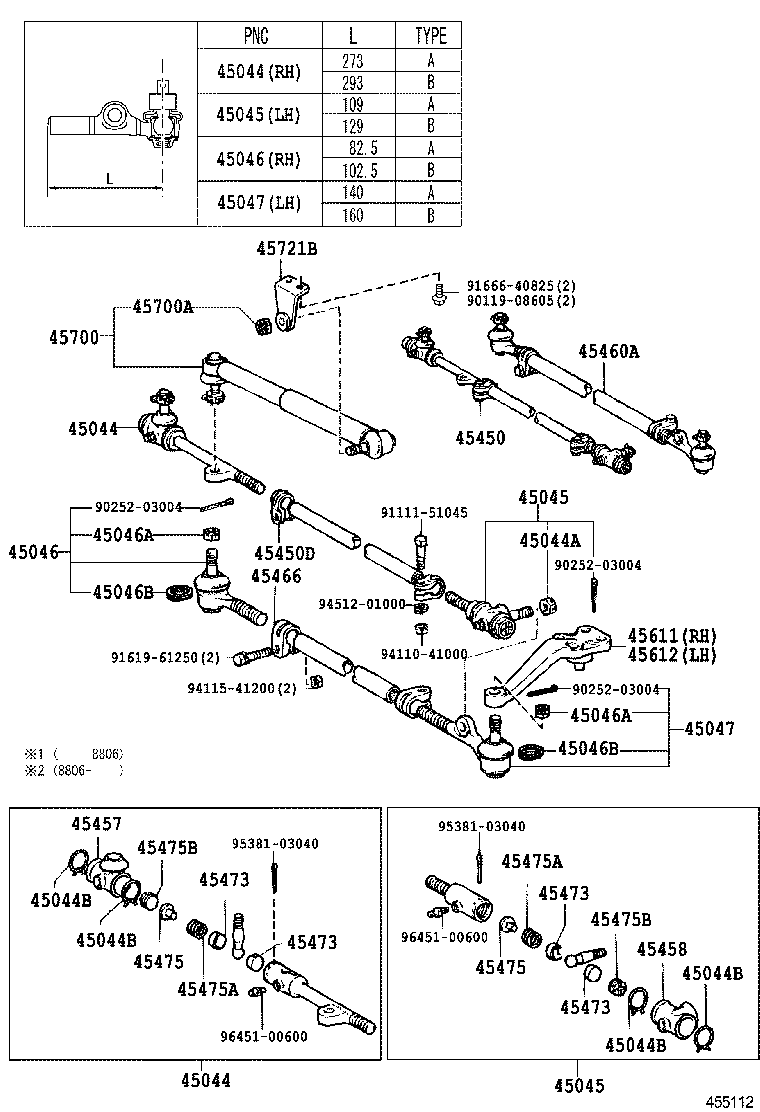

FRONT STEERING GEAR LINK

ILLUST NO. 3 OF 3(8708- )

 LAND CRUISER VAN |  FRONT STEERING GEAR LINK 45044 - END SUB-ASSY, STEERING RELAY ROD, RH 45044 - END SUB-ASSY, STEERING RELAY ROD, RH 45044A - NUT, CASTLE(FOR RELAY ROD) 45044B - RING, SET(FOR RELAY ROD) 45044B - RING, SET(FOR RELAY ROD) 45044B - RING, SET(FOR RELAY ROD) 45044B - RING, SET(FOR RELAY ROD) 45045 - END SUB-ASSY, STEERING RELAY ROD, LH 45045 - END SUB-ASSY, STEERING RELAY ROD, LH 45046 - END SUB-ASSY, TIE ROD, RH 45046A - NUT, CASTLE(FOR TIE ROD END) 45046A - NUT, CASTLE(FOR TIE ROD END) 45046B - RING, SET(FOR TIE ROD END DUST SEAL) 45046B - RING, SET(FOR TIE ROD END DUST SEAL) 45047 - END SUB-ASSY, TIE ROD, LH 45450 - ROD ASSY, STEERING RELAY 45450D - CLAMP, STEERING RELAY ROD END 45457 - SEAL, STEERING LINK DUST, RH 45458 - SEAL, STEERING LINK DUST, LH 45460A - ROD ASSY, TIE 45466 - CLAMP, TIE ROD END 45473 - SEAT, BALL STUD 45473 - SEAT, BALL STUD 45473 - SEAT, BALL STUD 45473 - SEAT, BALL STUD 45475 - SEAT, STEERING LINK JOINT SPRING 45475 - SEAT, STEERING LINK JOINT SPRING 45475A - SPRING, COMPRESSION(FOR STEERING LINK JOINT) 45475A - SPRING, COMPRESSION(FOR STEERING LINK JOINT) 45475B - PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT) 45475B - PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT) 45611 - ARM, STEERING KNUCKLE, RH 45612 - ARM, STEERING KNUCKLE, LH 45700 - DAMPER ASSY, STEERING 45700A - NUT(FOR STEERING DAMPER) 45721B - BRACKET, STEERING DAMPER, NO.3  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
