TOYOTA ARISTO JZS147-BEPVZ / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

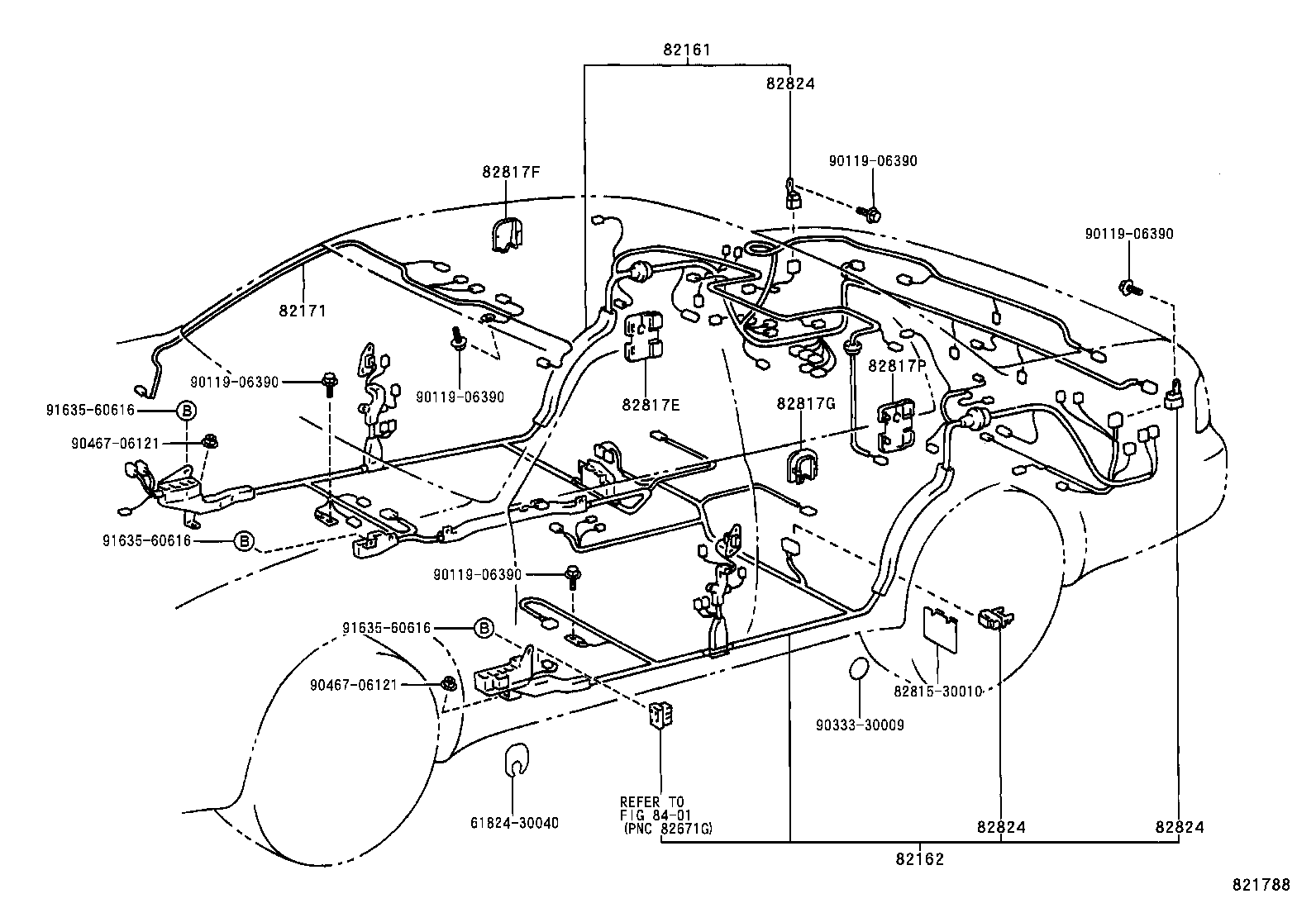

WIRING CLAMP

ﾙ-ﾌ & ﾌﾛｱ ﾜｲﾔ ILLUST NO. 9 OF13(9110-9708)

ARISTO | WIRING CLAMP ** Std Part 82161 - WIRE, FLOOR 82162 - WIRE, FLOOR, NO.2 82171 - WIRE, ROOF, NO.1 ** Std Part 82817E - PROTECTOR, WIRING HARNESS, NO.6 82817F - PROTECTOR, WIRING HARNESS, NO.7 82817G - PROTECTOR, WIRING HARNESS, NO.8 82817P - PROTECTOR, WIRING HARNESS, NO.14 82824 - CONNECTOR, WIRING HARNESS 82824 - CONNECTOR, WIRING HARNESS 82824 - CONNECTOR, WIRING HARNESS ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
