TOYOTA LAND CRUISER S T H T KZJ71G-MET / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

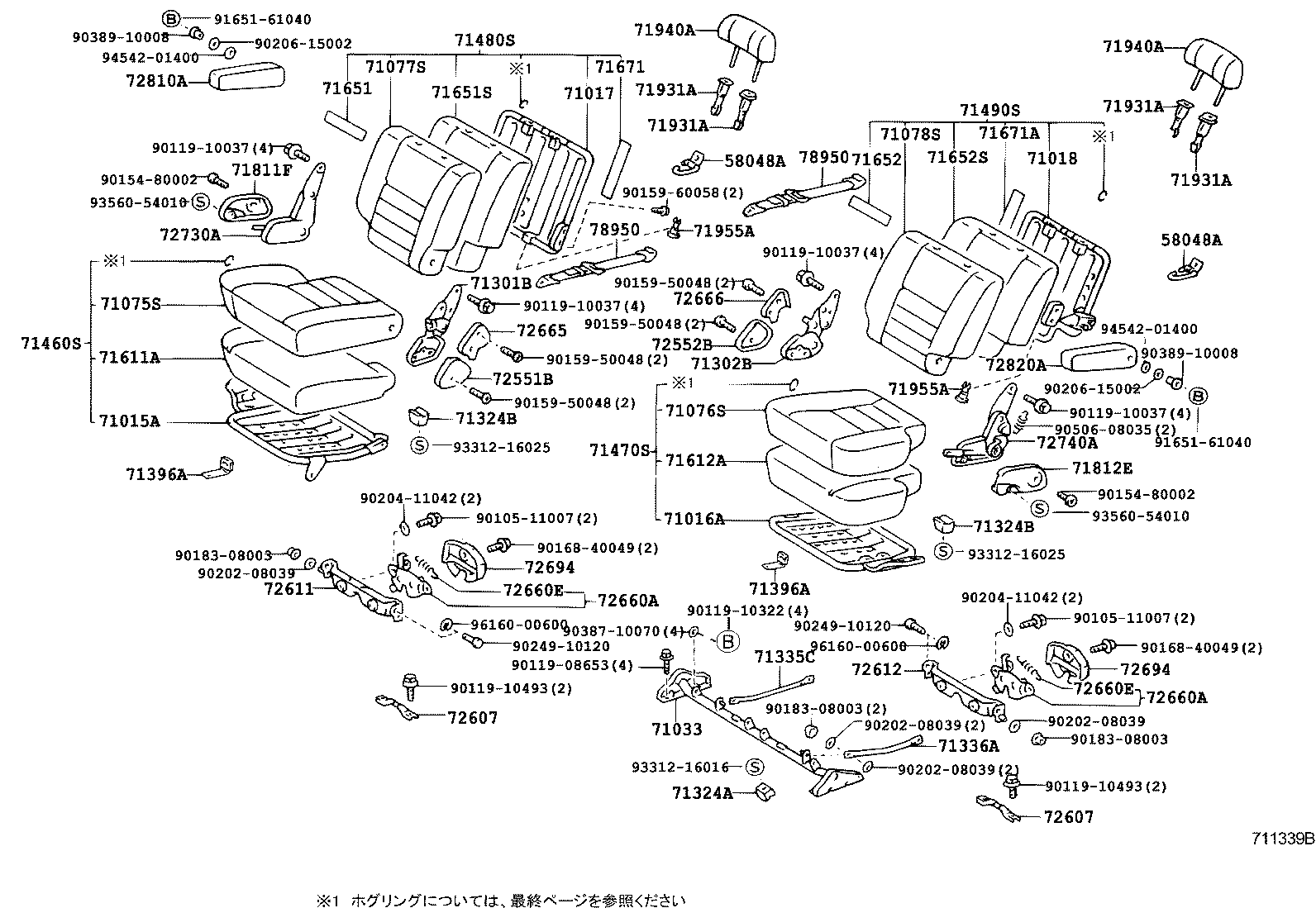

SEAT SEAT TRACK

ILLUST NO. 2 OF 4(9004-9305)LJ71 ; (9305-9604)KZJ71

LAND CRUISER S T H T | SEAT SEAT TRACK 58048A - HOOK SUB-ASSY, ROPE, NO.1 58048A - HOOK SUB-ASSY, ROPE, NO.1 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH 71033 - LEG SUB-ASSY, REAR SEAT CUSHION 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71301B - HINGE SUB-ASSY, REAR NO.1 SEAT, RH 71302B - HINGE SUB-ASSY, REAR NO.1 SEAT, LH 71324A - CUSHION, REAR SEAT 71324B - CUSHION, REAR SEAT 71324B - CUSHION, REAR SEAT 71335C - STAY, REAR SEAT CUSHION LINK, RH 71336A - STAY, REAR SEAT CUSHION LINK, LH 71396A - PLATE, REAR SEAT BAND HOOK 71396A - PLATE, REAR SEAT BAND HOOK 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) 71611A - PAD, REAR SEAT CUSHION, RH 71612A - PAD, REAR SEAT CUSHION, LH 71651 - PAD, REAR NO.1 SEAT BACK 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) 71652 - PAD, REAR NO.1 SEAT BACK 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71671 - PAD, REAR SEAT BACK SILENCER, A 71671A - PAD, REAR SEAT BACK SILENCER, A 71811F - COVER, RECLINING ADJUSTER, RH 71812E - COVER, RECLINING ADJUSTER, LH 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 71940A - HEADREST ASSY, REAR SEAT 71955A - SUPPORT, REAR SEAT HEADREST 71955A - SUPPORT, REAR SEAT HEADREST 72551B - COVER, RECLINING HINGE, RH 72552B - COVER, RECLINING HINGE, LH 72607 - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK 72607 - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK 72611 - BRACKET, REAR SEAT LOCK, RH 72612 - BRACKET, REAR SEAT LOCK, LH 72660A - SUPPORT ASSY, REAR SEAT CUSHION 72660A - SUPPORT ASSY, REAR SEAT CUSHION 72660E - SPRING(FOR REAR SEAT CUSHION SUPPORT) 72660E - SPRING(FOR REAR SEAT CUSHION SUPPORT) 72665 - COVER, REAR SEAT BACK LOCK, RH 72666 - COVER, REAR SEAT BACK LOCK, LH 72694 - COVER, REAR SEAT CUSHION LOCK 72694 - COVER, REAR SEAT CUSHION LOCK 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH 72810A - ARMREST ASSY, SEAT, RH 72820A - ARMREST ASSY, SEAT, LH 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
