TOYOTA DYNA 200 TOYOACE G25 BU102D-TUMMS / BODY / REAR BODY SIDE GATE LOCK TAIL GATE LOCK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR BODY SIDE GATE LOCK TAIL GATE LOCK

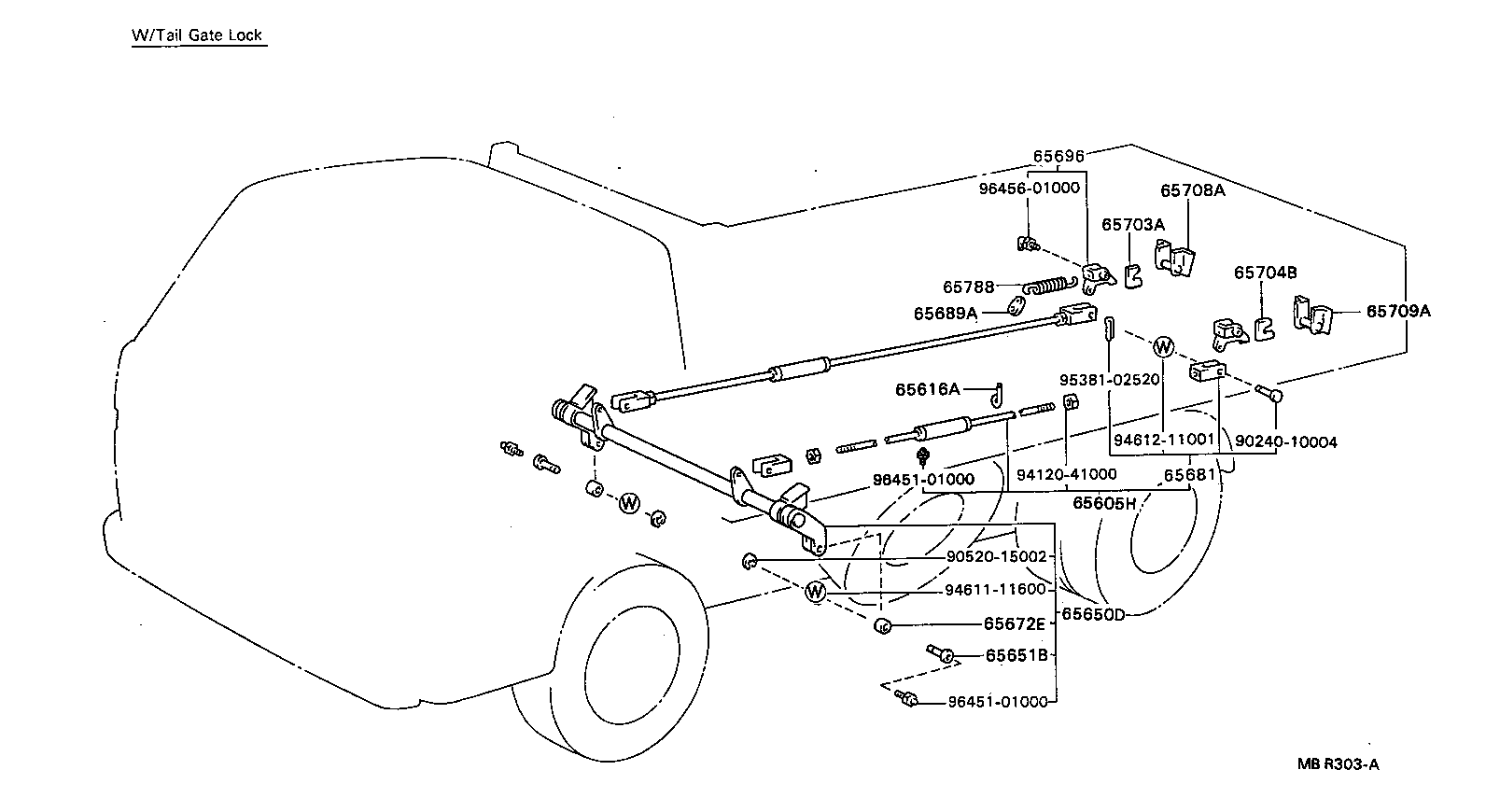

ｱﾘ(ﾃ-ﾙｹﾞ-ﾄ ﾛﾂｸ) ILLUST NO. 2 OF 2(9505-9807)DM3

DYNA 200 TOYOACE G25 | REAR BODY SIDE GATE LOCK TAIL GATE LOCK 65605H - LINK SUB-ASSY, TAIL GATE LOCK W/ SPRING 65616A - GUIDE, ROD ASSY SUPPORT 65650D - SHAFT ASSY, TAIL GATE C 65651B - SHAFT, TAIL GATE LOCK 65672E - ROLLER, TAIL GATE LOCK 65681 - END, TAIL GATE LOCK LINK 65689A - BRACKET 65696 - LATCH, TAIL GATE LOCK 65703A - GUIDE SUB-ASSY, TAIL GATE LOCK HINGE, RH 65704B - GUIDE SUB-ASSY, TAIL GATE LOCK HINGE, LH 65708A - BAR SUB-ASSY, TAIL GATE LOCK, RH 65709A - BAR SUB-ASSY, TAIL GATE LOCK, LH 65788 - SPRING, TAIL GATE CONTROL ROD RETURN ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
