TOYOTA DYNA 200 TOYOACE G25 BU102H-PKMMS4 / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT SEAT TRACK

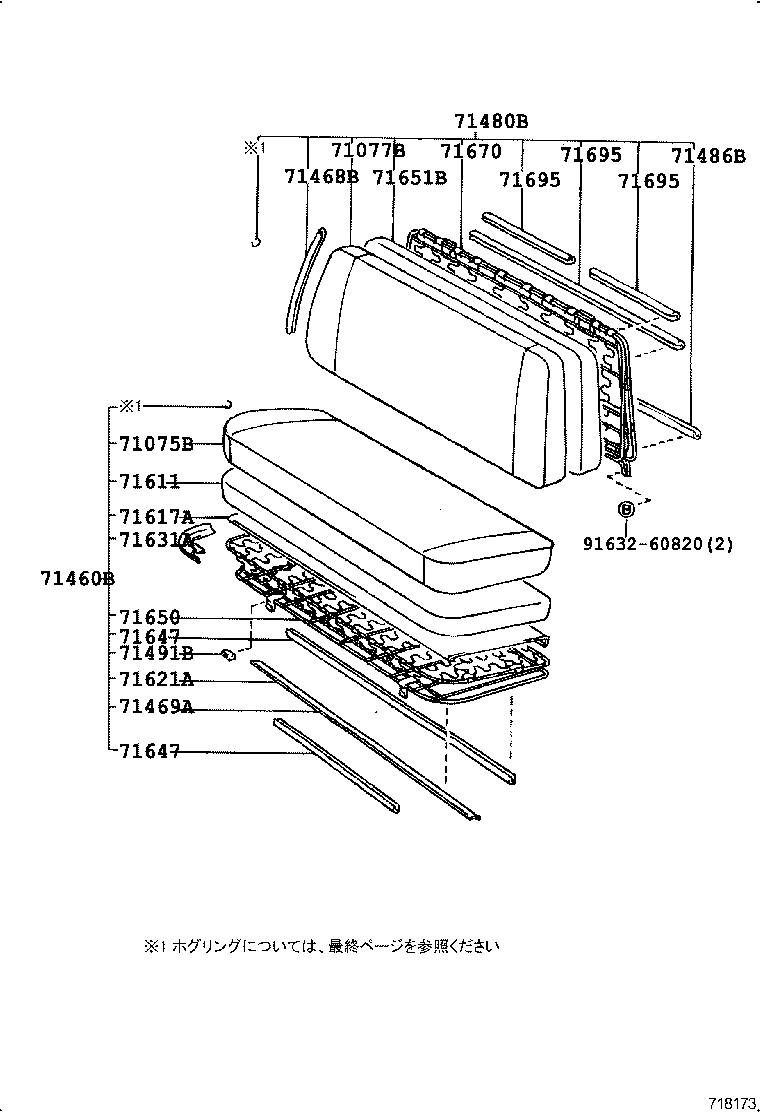

ILLUST NO. 3 OF 3(9505- )BU102..IV4

DYNA 200 TOYOACE G25 | SEAT SEAT TRACK 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) 71468B - PROTECTOR, REAR SEAT, NO.1 71469A - PAD, REAR SEAT BACK 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) 71486B - PROTECTOR, REAR SEAT, NO.3 71491B - CUSHION, REAR SEAT SET 71611 - PAD, REAR SEAT CUSHION 71617A - CLOTH, REAR SEAT CUSHION UNDER 71621A - PAD, REAR SEAT CUSHION SILENCER, A 71631A - PAD, REAR SEAT CUSHION CORNER 71647 - PROTECTOR, REAR SEAT CUSHION EDGE 71647 - PROTECTOR, REAR SEAT CUSHION EDGE 71650 - SPRING ASSY, REAR SEAT CUSHION 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) 71695 - PROTECTOR, REAR SEAT BACK 71695 - PROTECTOR, REAR SEAT BACK 71695 - PROTECTOR, REAR SEAT BACK ** Std Part
