TOYOTA MARK 2 LX90-ATPNT / POWERTRAIN-CHASSIS / REAR AXLE SHAFT HUB

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

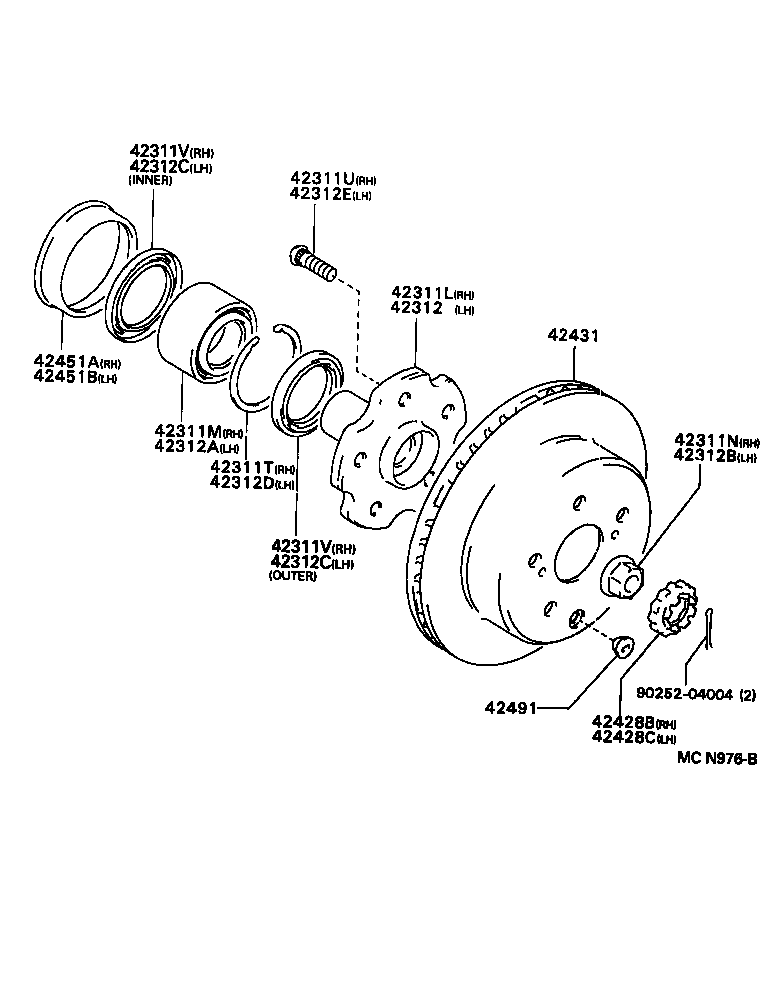

REAR AXLE SHAFT HUB

ILLUST NO. 2 OF 2(9210- )

MARK 2 | REAR AXLE SHAFT HUB 42311L - SHAFT, REAR AXLE, RH 42311M - BEARING (FOR REAR AXLE SHAFT RH) 42311N - NUT (FOR REAR AXLE SHAFT RH) 42311T - RING, SNAP (FOR REAR AXLE SHAFT RH) 42311U - BOLT, HUB (FOR REAR AXLE RH) 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) 42312 - SHAFT, REAR AXLE, LH 42312A - BEARING (FOR REAR AXLE SHAFT LH) 42312B - NUT (FOR REAR AXLE SHAFT LH) 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) 42312D - RING, SNAP (FOR REAR AXLE SHAFT LH) 42312E - BOLT, HUB (FOR REAR AXLE LH) 42428B - PLATE, REAR AXLE LOCK NUT, RH 42428C - PLATE, REAR AXLE LOCK NUT, LH 42431 - DISC, REAR 42451A - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH 42451B - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) ** Std Part
