TOYOTA CALDINA ST215G-DWPGK / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

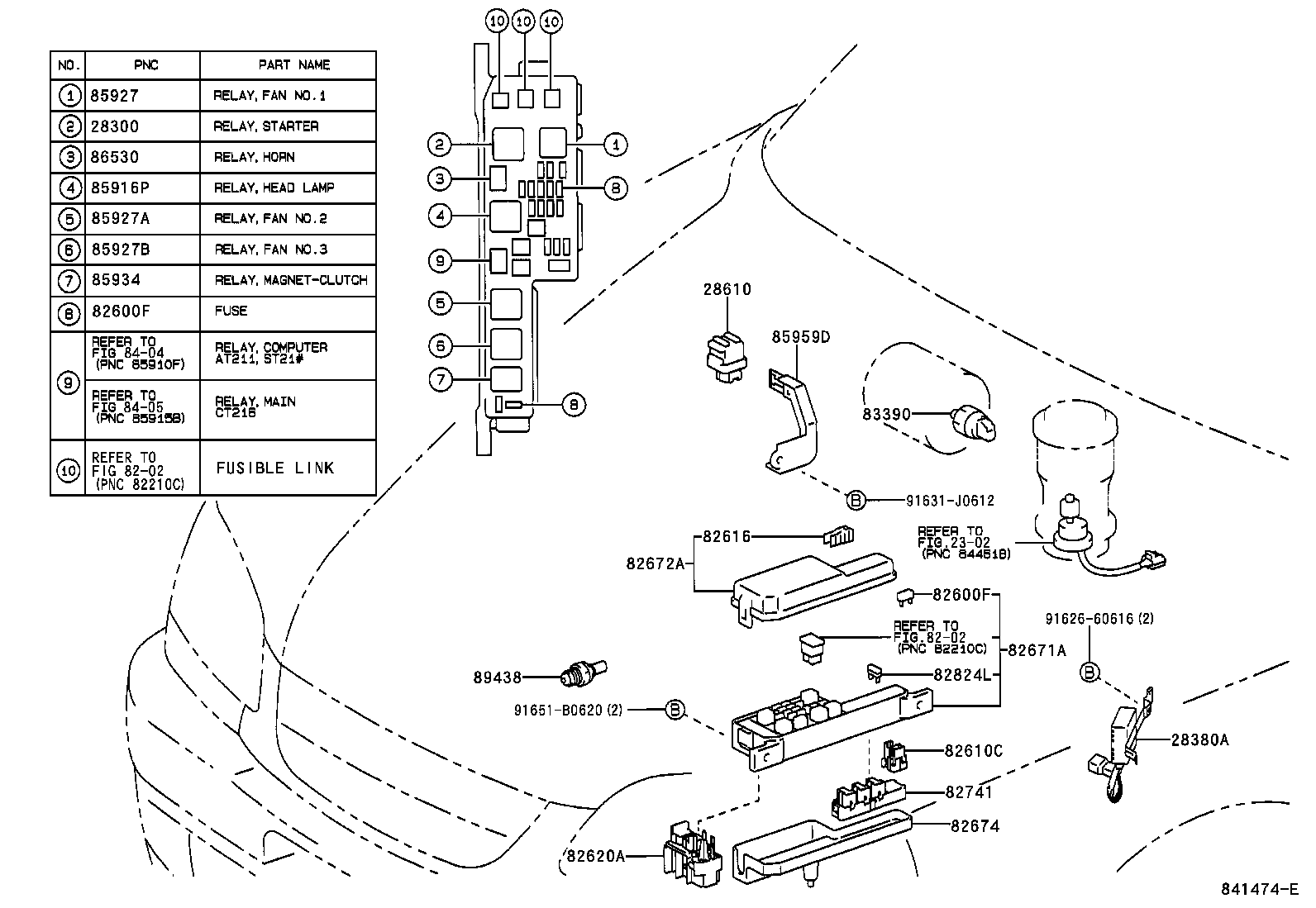

ENGINE ROOM ILLUST NO. 2 OF 6(9708- )

CALDINA | SWITCH RELAY COMPUTER ** Refer Fig 28300 - RELAY ASSY, STARTER 28380A - RESISTER, FUEL PUMP 28610 - RELAY ASSY, GLOW PLUG ** Refer Fig ** Refer Fig 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82610C - BLOCK ASSY, FUSE 82616 - PULLER, FUSE 82620A - BLOCK ASSY, FUSIBLE LINK 82671A - BLOCK, JUNCTION 82672A - COVER, JUNCTION BLOCK 82674 - COVER, JUNCTION BLOCK LOWER 82741 - BLOCK, ENGINE ROOM RELAY 82824L - PIN, SHORT 83390 - SWITCH ASSY, VACUUM WARNING ** Refer Fig ** Refer Fig 85916P - RELAY, HEADLAMP 85927 - RELAY, COOLING FAN 85927A - RELAY, COOLING FAN, NO.2 85927B - RELAY, COOLING FAN, NO.3 85934 - RELAY, MAGNET-CLUTCH 85959D - HOLDER, RELAY 86530 - RELAY ASSY, HORN 89438 - SWITCH, POWER STEERING OIL PRESSURE ** Std Part ** Std Part ** Std Part
