TOYOTA MEGA CRUISER BXD20V-RRPEW / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

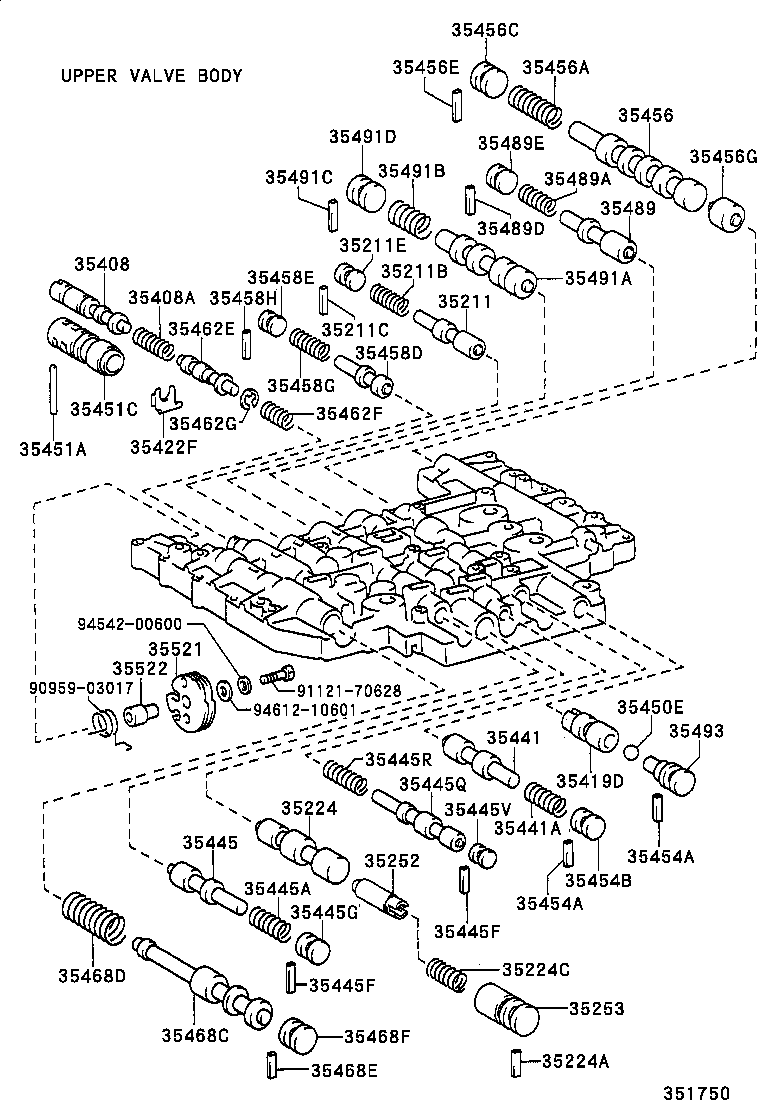

VALVE BODY OIL STRAINER ATM

A443F ILLUST NO. 2 OF 4(9601-9906)

MEGA CRUISER | VALVE BODY OIL STRAINER ATM 35211 - VALVE, LOCK UP SIGNAL 35211B - SPRING, COMPRESSION (FOR LOCK UP SIGNAL VALVE) 35211C - KEY, STRAIGHT (FOR LOCK UP SIGNAL VALVE) 35211E - PLUG (FOR LOCK UP SIGNAL VALVE) 35224 - VALVE, REVERSE CONTROL 35224A - KEY, STRAIGHT (FOR REVERSE CONTROL VALVE) 35224C - SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE) 35252 - PLUNGER, REVERSE CONTROL VALVE 35253 - SLEEVE, REVERSE CONTROL VALVE PLUNGER 35408 - PLUG SUB-ASSY, PRIMARY DOWN SHIFT 35408A - SPRING, COMPRESSION (FOR PRIMARY DOWN SHIFT PLUG) 35419D - VALVE, CHECK, NO.2 35422F - STOPPER, VALVE VIBRATING 35441 - VALVE, LOW COAST SHIFT CONTROL 35441A - SPRING, COMPRESSION (FOR LOW COAST SHIFT CONTROL VALVE) 35445 - VALVE, LOW MODULATOR 35445A - SPRING, COMPRESSION (FOR LOW MODULATOR VALVE) 35445F - KEY, STRAIGHT (FOR LOW MODULATOR VALVE) 35445F - KEY, STRAIGHT (FOR LOW MODULATOR VALVE) 35445G - PLUG (FOR LOW MODULATOR VALVE) 35445Q - VALVE, LOW COAST MODULATOR 35445R - SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE) 35445V - PLUG (FOR LOW COAST MODULATOR VALVE) 35450E - BALL (FOR UPPER VALVE BODY) 35451A - PIN, STRAIGHT (FOR THROTTLE VALVE SLEEVE) 35451C - SLEEVE, THROTTLE VALVE, NO.1 35454A - KEY, STRAIGHT (FOR LOW COAST SHIFT VALVE) 35454A - KEY, STRAIGHT (FOR LOW COAST SHIFT VALVE) 35454B - PLUG (FOR LOW COAST SHIFT VALVE) 35456 - VALVE, 2-3 SHIFT 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) 35456C - PLUG (FOR 2-3 SHIFT VALVE) 35456E - PIN, STRAIGHT (FOR 2-3 SHIFT VALVE) 35456G - PLUG (FOR 2-3 SHIFT VALVE) 35458D - VALVE, CUT BACK 35458E - PLUG (FOR CUT BACK VALVE) 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) 35458H - KEY, STRAIGHT (FOR CUT BACK VALVE) 35462E - VALVE, PRIMARY THROTTLE 35462F - SPRING, COMPRESSION (FOR PRIMARY THROTTLE VALVE) 35462G - RING, E (FOR PRIMARY THROTTLE VALVE) 35468C - VALVE, SECONDARY REGULATOR 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) 35468E - KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE) 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) 35489 - VALVE, 3-2 KICK DOWN ORIFICE CONTROL 35489A - SPRING (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE) 35489D - KEY, STRAIGHT (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE) 35489E - PLUG (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE) 35491A - VALVE, ACCUMULATOR CONTROL, NO.1 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1) 35491C - KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1) 35491D - PLUG (FOR ACCUMULATOR CONTROL VALVE NO.1) 35493 - SEAT, SHIFT VALVE SPRING 35521 - CAM, THROTTLE VALVE 35522 - PIN, THROTTLE VALVE CAM ** Std Part ** Std Part ** Std Part ** Std Part
