TOYOTA MEGA CRUISER BXD20V-RRPEW / TOOL-ENGINE-FUEL / INJECTION PUMP BODY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

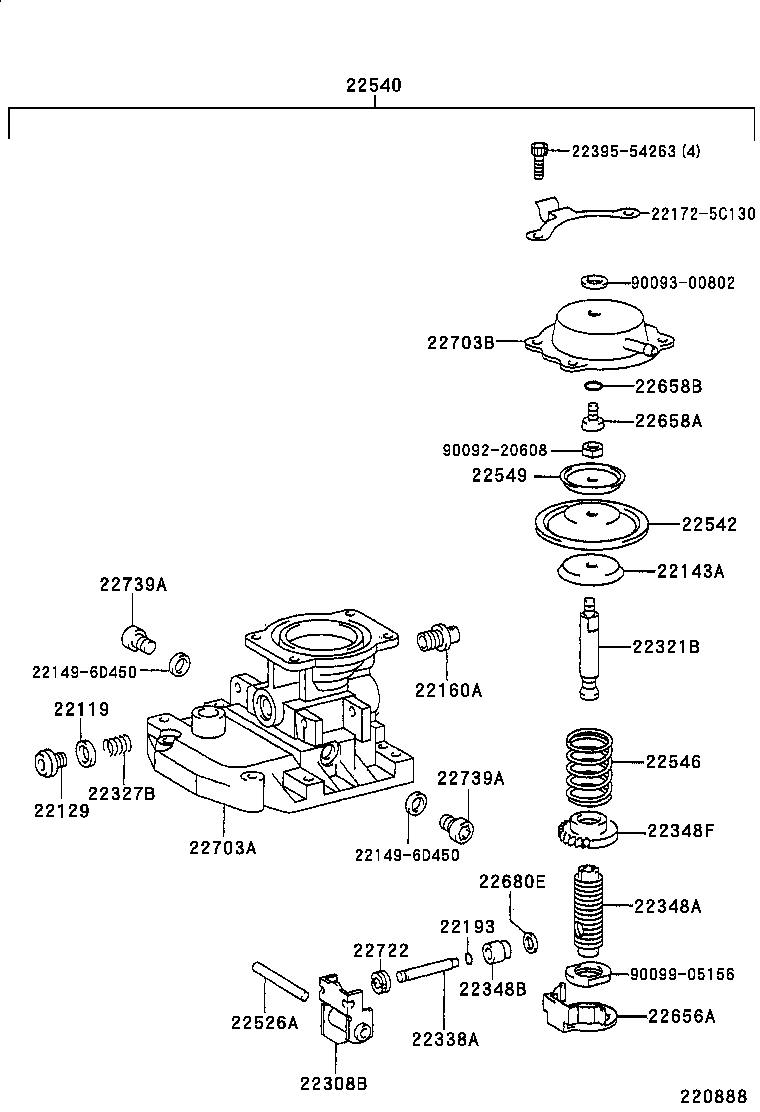

INJECTION PUMP BODY

ILLUST NO. 2 OF 2(9601-9906)

MEGA CRUISER | INJECTION PUMP BODY 22119 - WASHER, AIR BLEEDER NIPPLE 22129 - PLUG, SCREW 22143A - SEAT, SPRING UPPER, NO.2 ** Std Part ** Std Part 22160A - SCREW SUB-ASSY, OVER FLOW, NO.2 ** Std Part 22193 - RING, O(FOR LEVER CONNECTING PIN) 22308B - LEVER SUB-ASSY, CONTROL 22321B - ROD, PUSH(FOR ALTITUDE COMPENSATING TIMER ADVANCER) 22327B - SPRING(FOR ALTITUDE COMPENSATING TIMER ADVANCER) 22338A - PIN, LEVER CONNECTING 22348A - BUSHING, GUIDE 22348B - BUSHING, GUIDE(FOR LEVER CONNECTING PIN) 22348F - BUSHING, GUIDE ** Std Part 22526A - PIN, LEVER SUPPORT 22540 - COMPENSATOR SUB-ASSY, BOOST 22542 - DIAPHRAGM(FOR BOOST COMPENSATOR) 22546 - SPRING, BOOST COMPENSATOR 22549 - WASHER, THRUST(FOR BOOST COMPENSATOR DIAPHRAGM) 22656A - CLIP, TIMER 22658A - STOPPER, TIMER SLIDE 22658B - RING, O(FOR TIMER SLIDE STOPPER) 22680E - WASHER, COPPER PLATE 22703A - COVER SUB-ASSY, GOVERNOR 22703B - COVER, GOVERNOR 22722 - NUT, GOVERNOR SHAFT ROCK 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 ** Std Part ** Std Part ** Std Part
