TOYOTA VEROSSA JZX110-BEAVH / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT SEAT SEAT TRACK

パワ-シ-ト ILLUST NO. 2 OF 2(0106- )

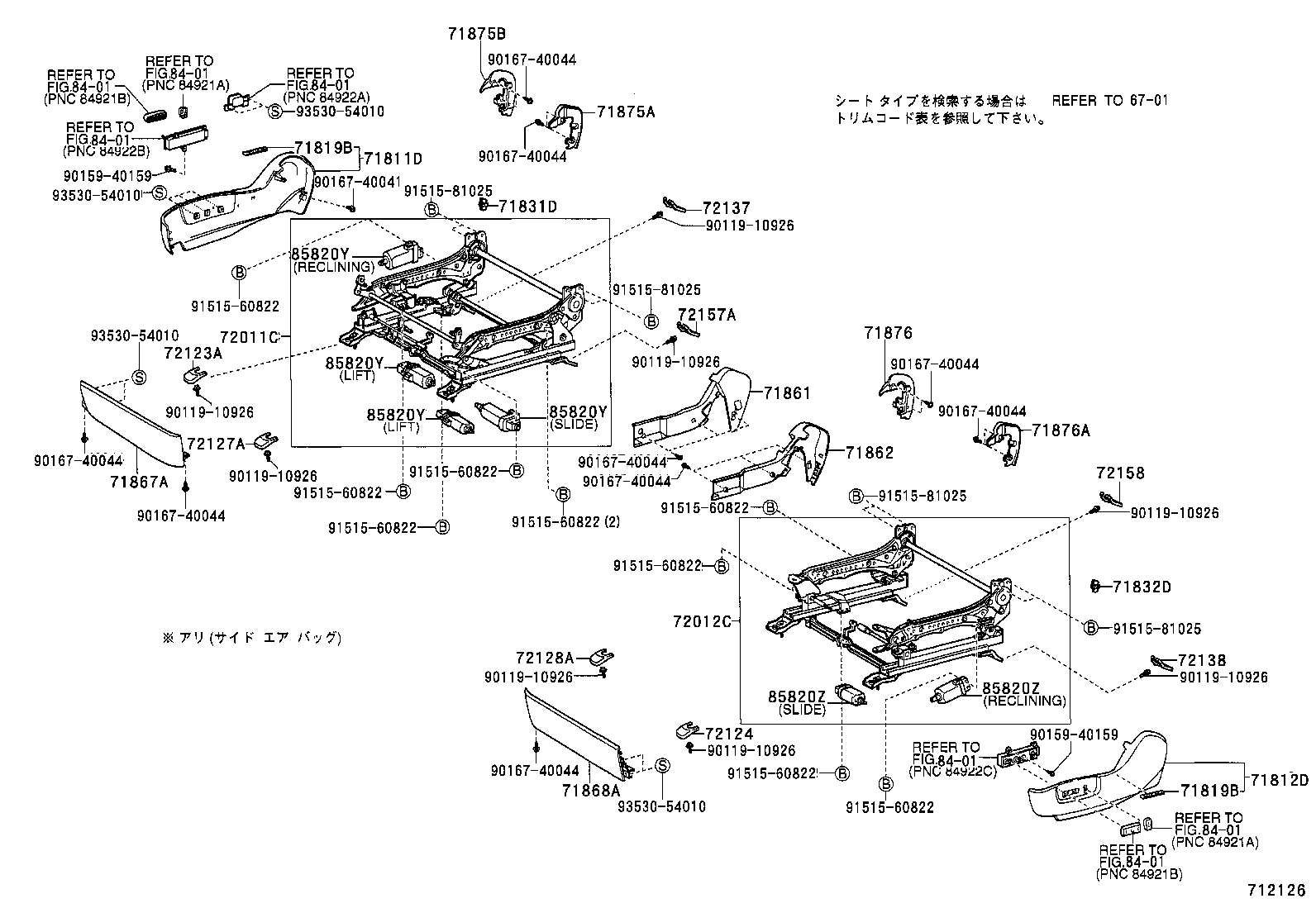

 VEROSSA |  FRONT SEAT SEAT TRACK ** Refer Fig 71811D - SHIELD, FRONT SEAT CUSHION, RH 71812D - SHIELD, FRONT SEAT CUSHION, LH 71819B - LABEL, SIDE AIR BAG NAME 71819B - LABEL, SIDE AIR BAG NAME 71831D - COVER, FRONT SEAT HINGE, RH 71832D - COVER, FRONT SEAT HINGE, LH 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH 71875A - COVER, RECLINING ADJUSTER INSIDE, RH 71875B - COVER, RECLINING ADJUSTER INSIDE, RH 71876 - COVER, RECLINING ADJUSTER INSIDE, LH 71876A - COVER, RECLINING ADJUSTER INSIDE, LH 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH 72137 - COVER, SEAT TRACK OUTER, RH 72138 - COVER, SEAT TRACK OUTER, LH 72157A - COVER, SEAT TRACK BRACKET, INNER RH 72158 - COVER, SEAT TRACK BRACKET, INNER LH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85820Y - MOTOR ASSY, POWER SEAT 85820Y - MOTOR ASSY, POWER SEAT 85820Y - MOTOR ASSY, POWER SEAT 85820Y - MOTOR ASSY, POWER SEAT 85820Z - MOTOR ASSY, POWER SEAT 85820Z - MOTOR ASSY, POWER SEAT  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
