TOYOTA VISTA VISTA ARDEO ZZV50G-BWSSK / BODY / ROOF PANEL BACK WINDOW GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

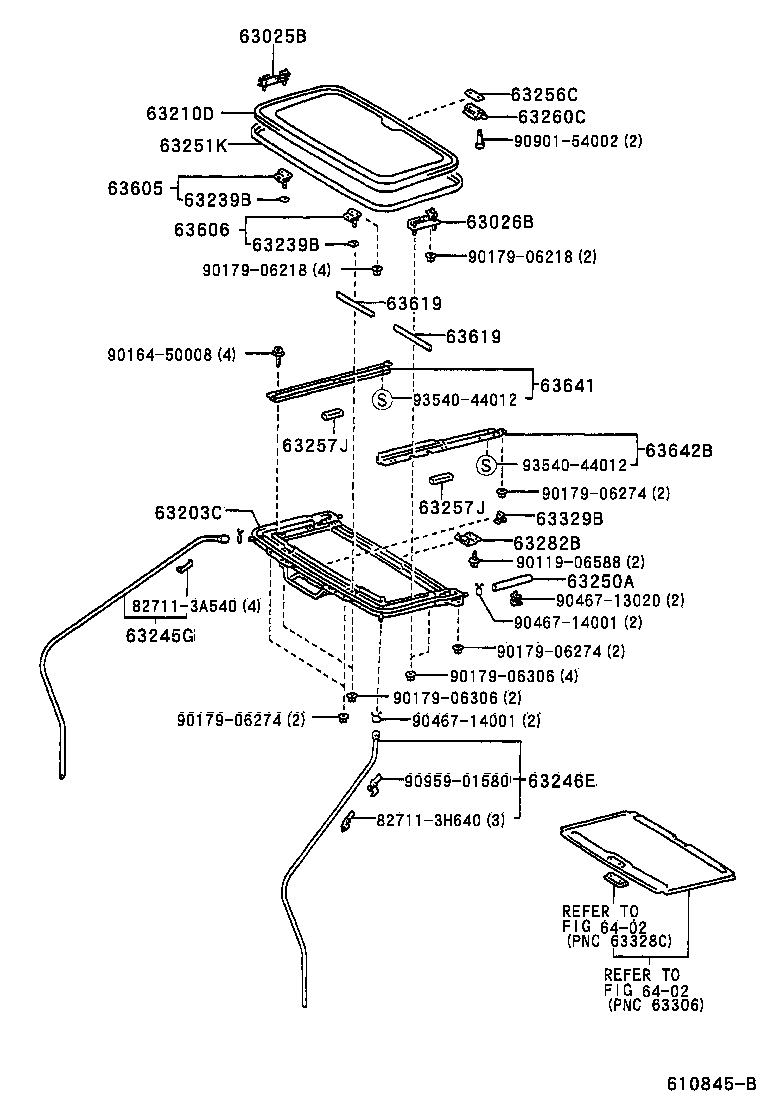

ROOF PANEL BACK WINDOW GLASS

ｱﾘ(ﾑ-ﾝﾙ-ﾌ) FR ILLUST NO. 2 OF 3(9806- )WG

VISTA VISTA ARDEO | ROOF PANEL BACK WINDOW GLASS 63025B - LINK SUB-ASSY, TILT ROOF, RH 63026B - LINK SUB-ASSY, TILT ROOF, LH 63203C - HOUSING SUB-ASSY, TILT ROOF 63210D - MOULDING ASSY, ROOF WINDOW, UPPER 63239B - PAD, TILT ROOF GLASS 63239B - PAD, TILT ROOF GLASS 63245G - HOSE, REMOVABLE ROOF DRAIN, FRONT RH 63246E - HOSE, SLIDE ROOF RAIN CHANNEL, NO.2 63250A - SPACER, REMOVABLE ROOF LOCK BASE 63251K - WEATHERSTRIP, TILT ROOF 63256C - SEAL, TILT ROOF GLASS 63257J - SEAL, TILT ROOF HOUSING 63257J - SEAL, TILT ROOF HOUSING 63260C - HANDLE ASSY, TILT ROOF LOCK 63282B - STRIKER, TILT ROOF LOCK 63329B - STOPPER, SUNSHADE LOCK, NO.1 63605 - HINGE SUB-ASSY, TILT ROOF, RH 63606 - HINGE SUB-ASSY, TILT ROOF, LH 63619 - COVER, TILT ROOF PANEL 63619 - COVER, TILT ROOF PANEL 63641 - RAIL, SUNSHADE, NO.1 FRONT RH 63642B - RAIL, SUNSHADE, NO.1 FRONT LH ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
