TOYOTA DYNA TOYOACE RZU300-PQMMK / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE BOOSTER VACUUM TUBE

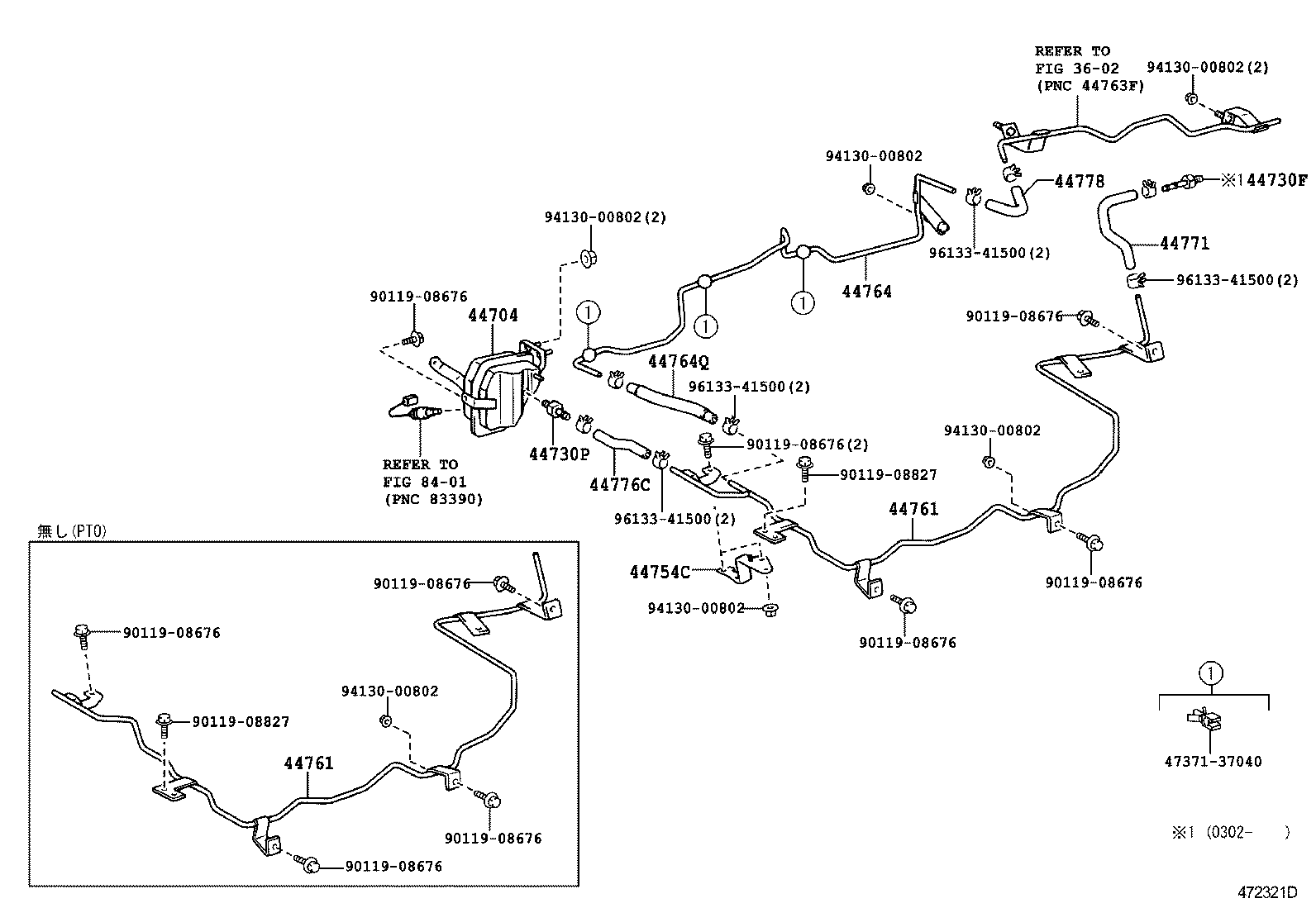

ILLUST NO. 2 OF 2(0005-0406)RZU300..DCB

DYNA TOYOACE | BRAKE BOOSTER VACUUM TUBE ** Refer Fig 44704 - RESERVOIR SUB-ASSY, VACUUM 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) 44730P - VALVE ASSY, VACUUM CHECK, NO.1 44754C - BRACKET, VACUUM TUBE, NO.1 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR 44764 - TUBE, BOOSTER VACUUM 44764Q - HOSE(FOR CONNECTOR TO VACUUM RESERVOIR TUBE) 44771 - HOSE, VACUUM TUBE CONNECTOR 44776C - HOSE, VACUUM RESERVOIR TO CONNECTOR 44778 - HOSE, CONNECTOR TO CHECK VALVE ** Std Part ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
