TOYOTA CENTURY GZG50-AEWGK / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

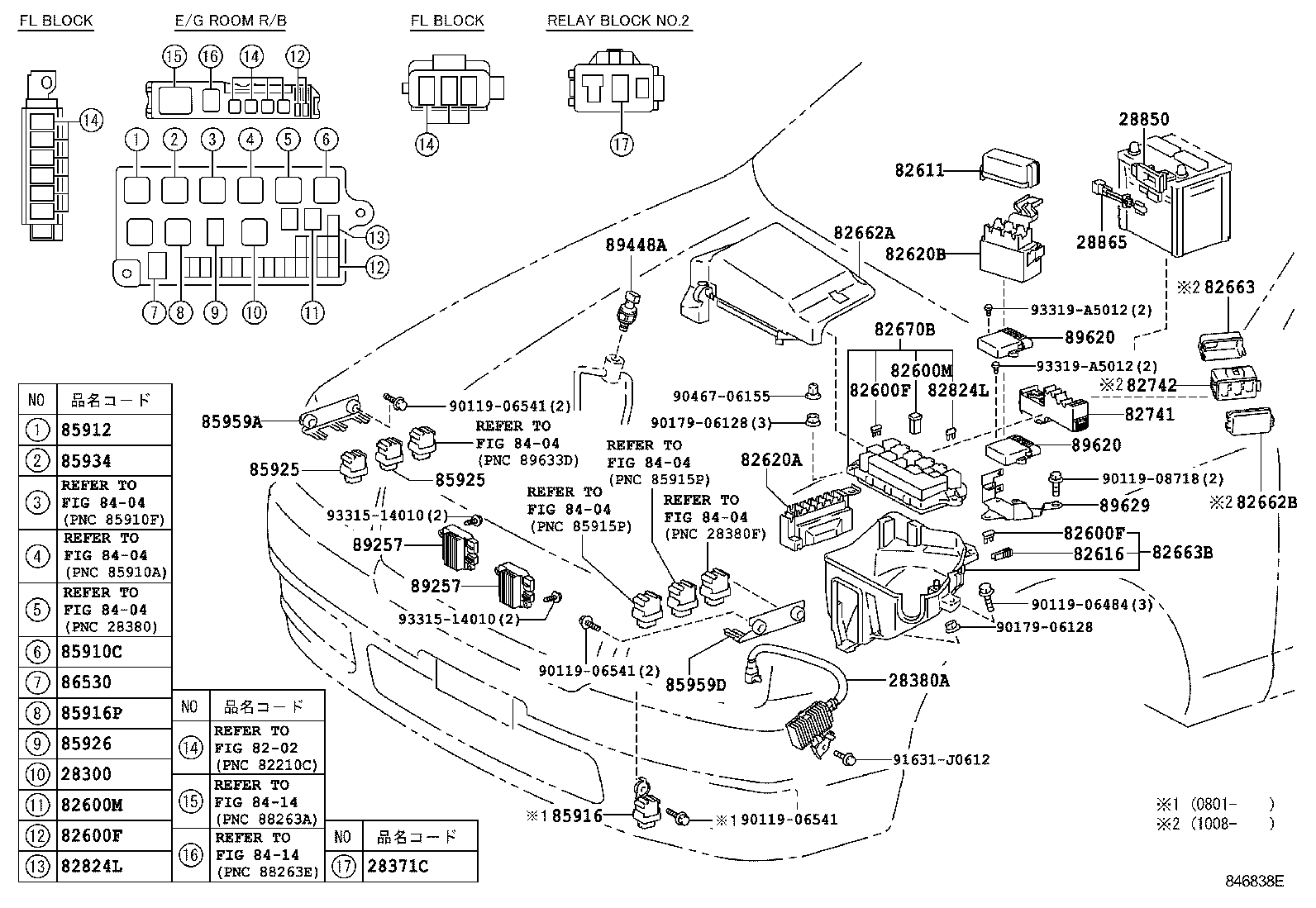

ｴﾝｼﾞﾝﾙ-ﾑ ILLUST NO. 2 OF 8(0501- )

CENTURY | SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER 28371C - RELAY, IGNITION, NO.2 28380A - RESISTER, FUEL PUMP 28850 - SENSOR ASSY, BATTERY CURRENT 28865 - SENSOR, BATTERY THERMOMETER ** Refer Fig 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82600M - FUSE, MEDIUM CURRENT 82600M - FUSE, MEDIUM CURRENT 82611 - COVER, FUSE BLOCK 82616 - PULLER, FUSE 82620A - BLOCK ASSY, FUSIBLE LINK 82620B - BLOCK ASSY, FUSIBLE LINK 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82662B - COVER, RELAY BLOCK, UPPER, NO.2 82663 - COVER, RELAY BLOCK, LOWER 82663B - COVER, RELAY BLOCK, LOWER, NO.3 82670B - BLOCK ASSY, JUNCTION, NO.2 82741 - BLOCK, ENGINE ROOM RELAY 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 82824L - PIN, SHORT 82824L - PIN, SHORT ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85912 - RELAY, DEFOGGER 85916 - RELAY, LIGHT CONTROL 85916P - RELAY, HEADLAMP 85925 - RELAY, RADIATOR FAN 85925 - RELAY, RADIATOR FAN 85926 - RELAY, HEADLAMP DIMMER 85934 - RELAY, MAGNET-CLUTCH 85959A - HOLDER, RELAY 85959D - HOLDER, RELAY 86530 - RELAY ASSY, HORN 89257 - COMPUTER, COOLING FAN 89257 - COMPUTER, COOLING FAN 89448A - SENSOR, POWER STEERING OIL PRESSURE 89620 - IGNITER ASSY 89620 - IGNITER ASSY 89629 - BRACKET, IGNITER ASSY ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
