TOYOTA PROGRES JCG11-AEAZH / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

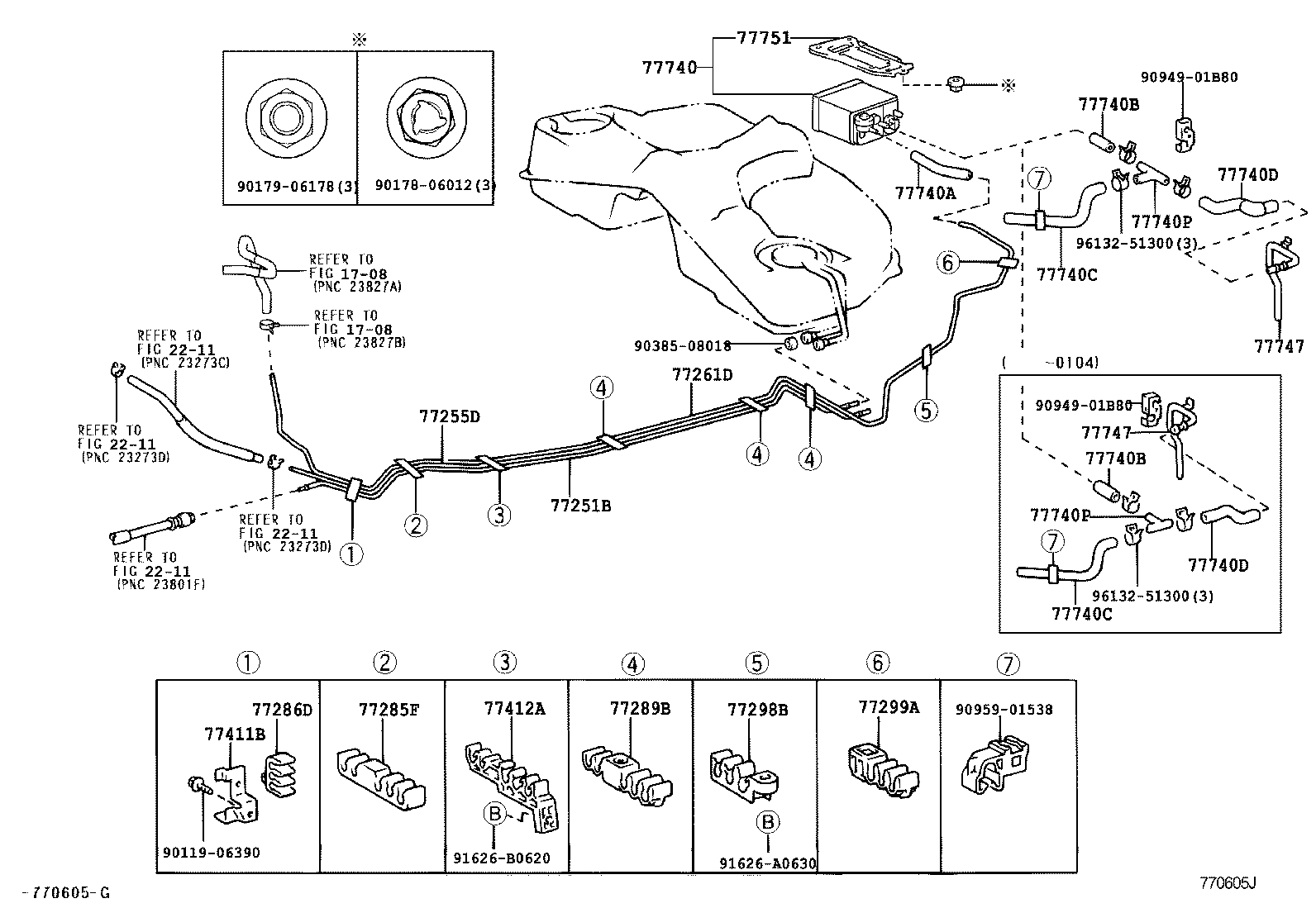

FUEL TANK TUBE

フューエル チューブ ILLUST NO. 2 OF 2(9805- )

 PROGRES |  FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 77251B - TUBE, FUEL MAIN 77255D - TUBE, FUEL RETURN 77261D - TUBE, FUEL TANK TO CANISTER 77285F - CLAMP, FUEL TUBE, NO.1 77286D - CLAMP, FUEL TUBE, NO.2 77289B - CLAMP, FUEL TUBE, NO.3 77298B - CLAMP, FUEL TUBE, NO.4 77299A - CLAMP, FUEL TUBE, NO.5 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 77412A - SUPPORT, FUEL TUBE GROMMET, NO.2 77740 - CANISTER ASSY, CHARCOAL 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) 77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER) 77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER) 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) 77740D - HOSE, FUEL, NO.4(FOR CHARCOAL CANISTER) 77740D - HOSE, FUEL, NO.4(FOR CHARCOAL CANISTER) 77740P - WAY, 3(FOR CHARCOAL CANISTER) 77740P - WAY, 3(FOR CHARCOAL CANISTER) 77747 - PIPE, CHARCOAL CANISTER, NO.1 77747 - PIPE, CHARCOAL CANISTER, NO.1 77751 - BRACKET, CHARCOAL CANISTER BASE  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
